3. Slide the switch into the mounting rails and fasten with M6 screws, one (1) per
side. Torque screws to 30in-lb.

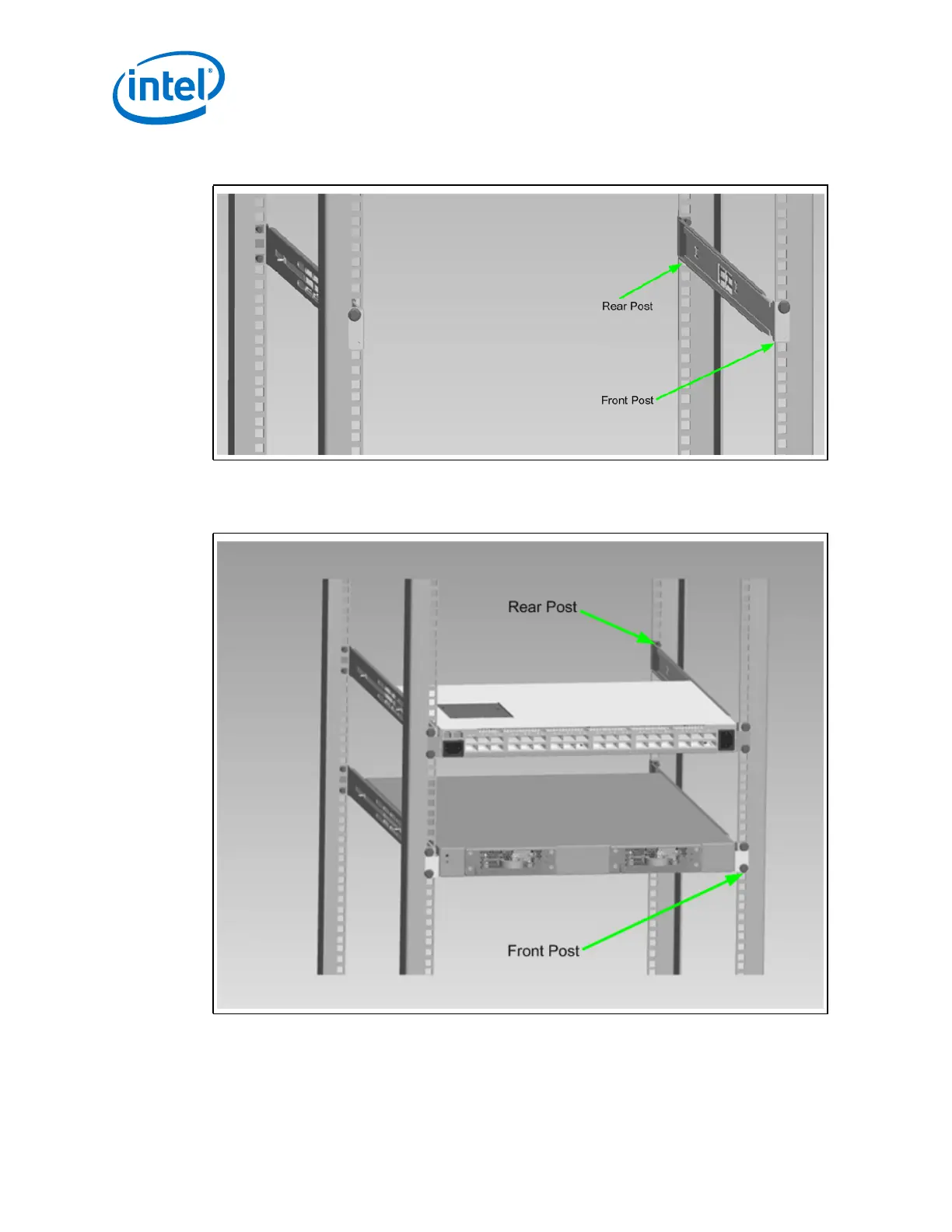

Figure 5. Installing the Rack Rails
Figure 6. 12200 and 12300 Four Post Standard Rack Mounting
