2.9.1.1 Staging Area Testing
If a MM requires testing prior to final installation at an end-user site (for example,
testing at a staging area), do the following:
1. Disengage the thumb screw and partially rotate the lever as shown in Figure 45.
2. Fold back the label from the thumb screw hole. Re-engage the lever and tighten the
thumb screw as shown in Figure 46.
3. After testing is complete at the staging area, reverse Steps 1 and 2 to prepare the
system for shipment to the end-user site (see Figure 47).

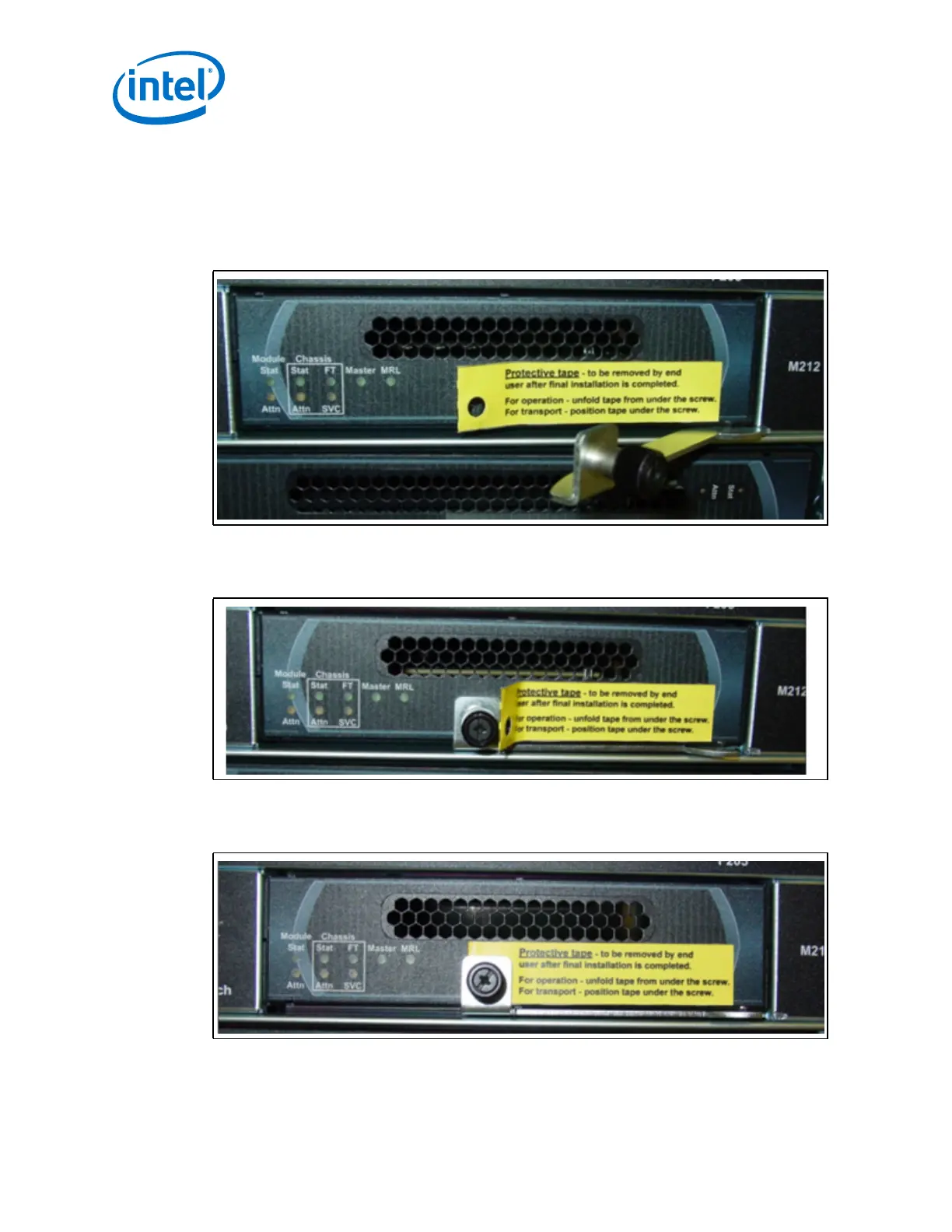

Figure 45. MRL Protective Label 2
Figure 46. MRL Protective Label 3
Figure 47. MRL Protective Label 4
