True Scale Fabric Switches 12000 Series Hardware
July 2015 Installation Guide
Order Number: G91928004US 65
12000 Series Switches
Off: module is in the removable state.
2.10.3.2 Module Attention
The Attention LED indicates one of the following conditions:
Off: the system functioning normally.
Steady Amber: the system requires some attention, which could indicate one of
the following conditions:
The switch temperature is at a warning level on the module.
The switch silicon temperature is at a warning level (approximately 90 degrees
C).
DC voltages on the board are slightly out of tolerance (12V Bulk, 5V, 3.3V and
1.8V are all monitored).
The module can no longer function properly. The system will take the
appropriate actions to ensure that no damage is done to its components.
Blinking Amber (once every four seconds): LED test state.
2.10.4 SEEB Module
2.10.4.1 RJ45 LEDs
The RJ45 connectors have two LEDs, Act and 100. The 100 LED is Green when a
100Mbps link is connected. The Act LED is Amber when an Ethernet link has been
established, and blinking when the link is active.

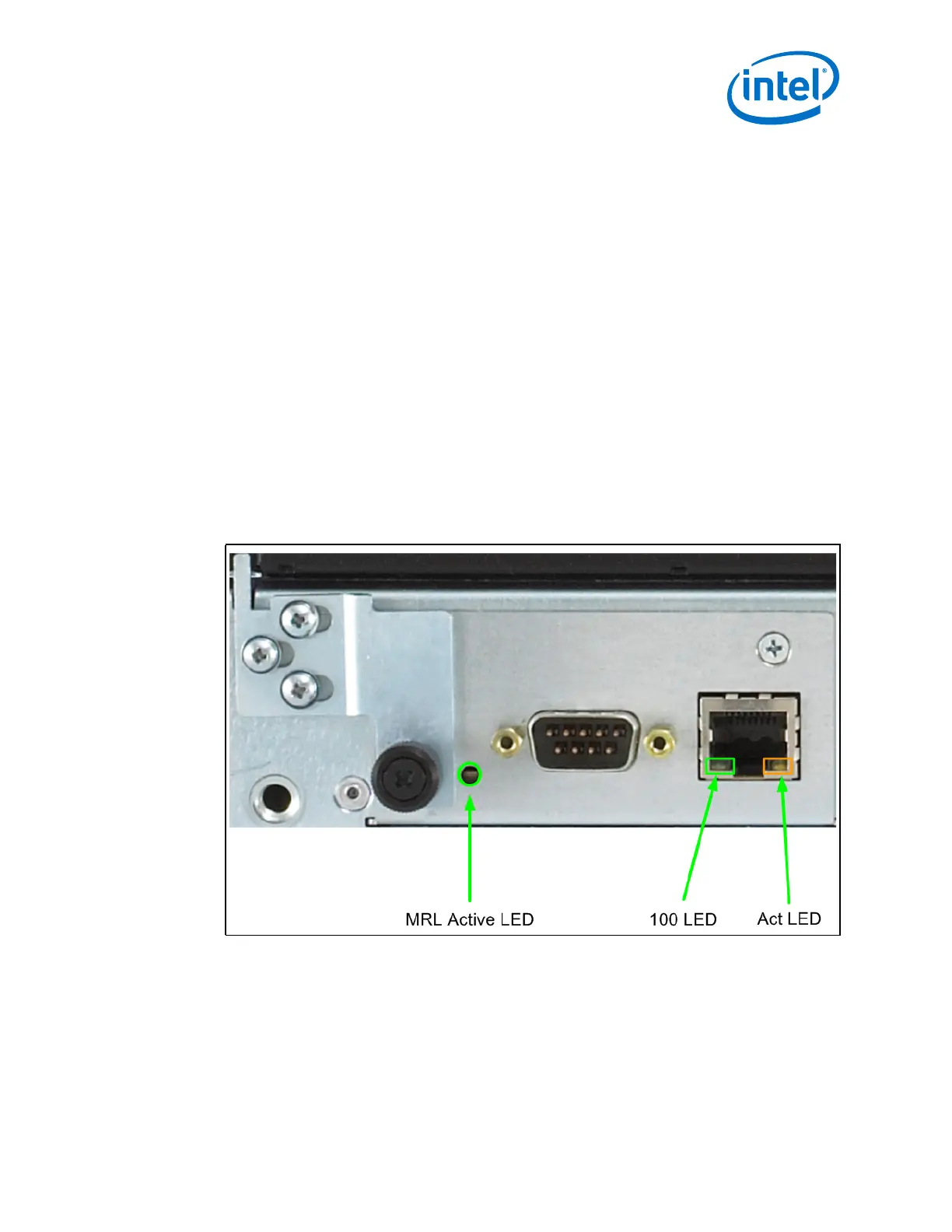

Figure 60. SEEB Module LEDs
