True Scale Fabric Switches 12000 Series Hardware
July 2015 Installation Guide
Order Number: G91928004US 67
12000 Series Switches
The module can no longer function properly. The system will take the
appropriate actions to ensure that no damage is done to its components.
Blinking Amber (once every four seconds): LED test state.
2.10.5.4 RJ45 LEDs
The RJ45 connectors have two LEDs, Act and 100. The 100 LED is Green when a
100Mbps link is connected. The Act LED is Green when an Ethernet link has been
established, and blinking when the link is active.
2.10.6 12800 Fans and Power Supplies
2.10.6.1 Fan LEDs

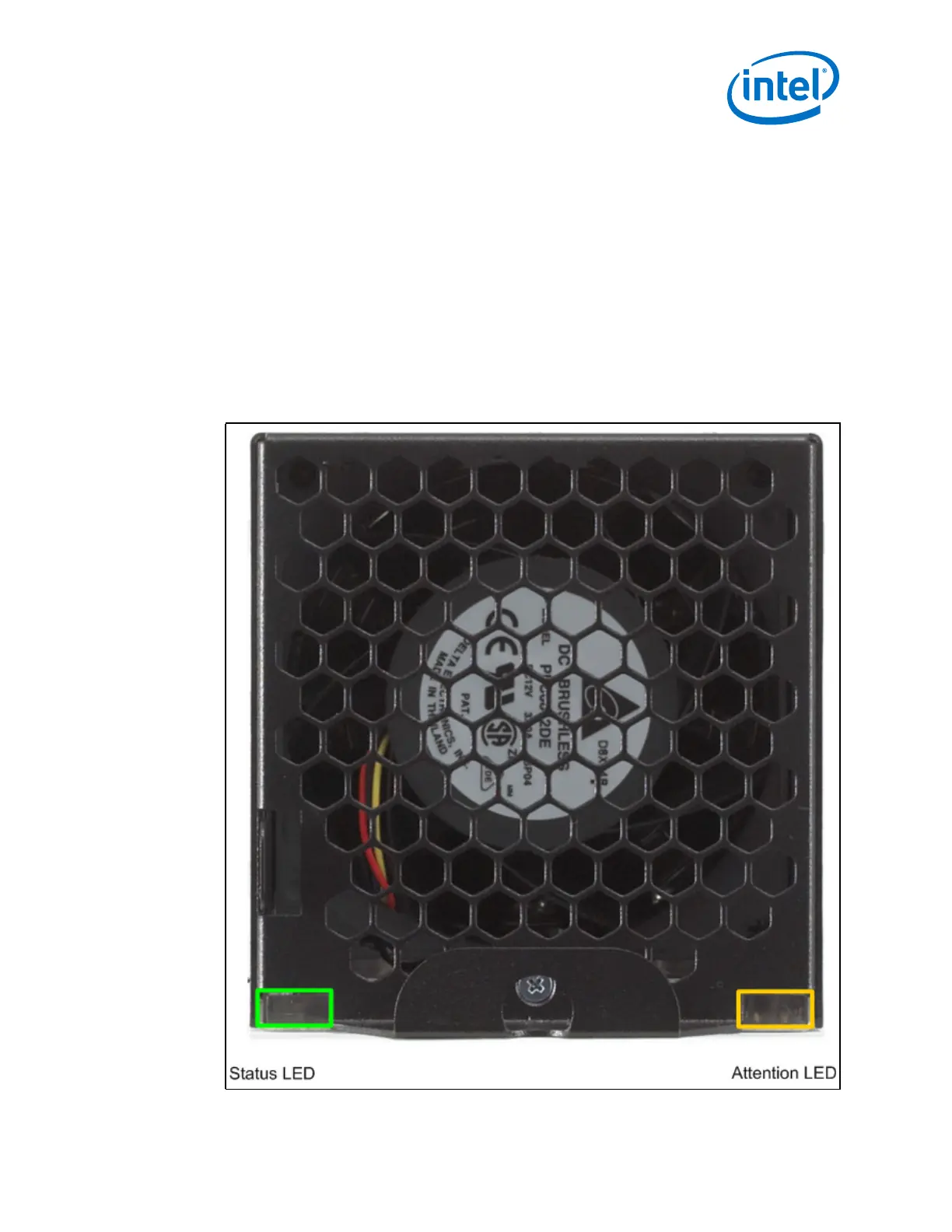

Figure 62. 12800 Fan LEDs
