True Scale Fabric Switches 12000 Series Hardware
July 2015 Installation Guide
Order Number: G91928004US 23
12000 Series Switches
3. Orient the chassis such that mounting flanges are in the front of the rack. Install
the chassis in the rack. Fasten chassis to the rack with four (4) M6 screws. Torque
to 30in-lb.
Warning: To avoid injury, use a team of people appropriate to the weight of the product and in
conjunction with applicable laws and guidelines.
4. Fasten chassis to the rack with four (4) M6 screws. Torque to 30in-lb.
5. If applicable, replace the door(s) on the rack.
2.5 12800-120 Installation
Note: The mounting kit contains all of the necessary parts for installing and mounting the
switch into a 19" 4-post server rack, with a distance between front and rear rack posts
ranging from 28" - 33" (711mm - 838mm).
2.5.1 Mounting Hardware Kit Contents:
Note: The mounting kit contains all of the necessary parts for installing and mounting the
switch into a 19" 4-post server rack, with a distance between front and rear rack posts
ranging from 28" - 33" (711mm - 838mm).
• Support Rails
• HAT Brackets
• C-Brackets
• #8–32 Flat Head Screws

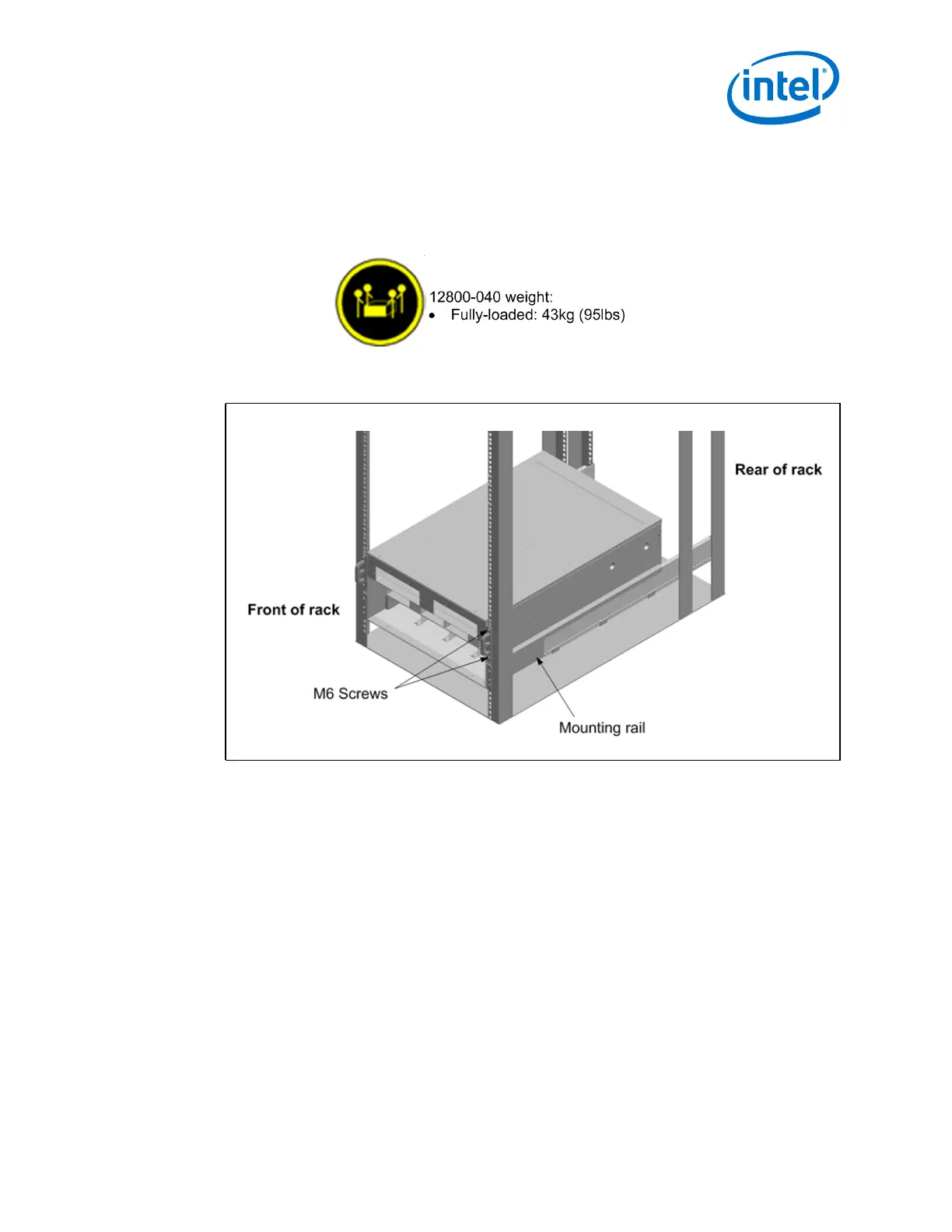

Figure 13. Rack Installation
