12000 Series Switches
True Scale Fabric Switches 12000 Series Hardware
Installation Guide July 2015
34 Order Number: G91928004US
7. Slide four (4) C-brackets over the HAT brackets that are pre-installed on the
chassis.

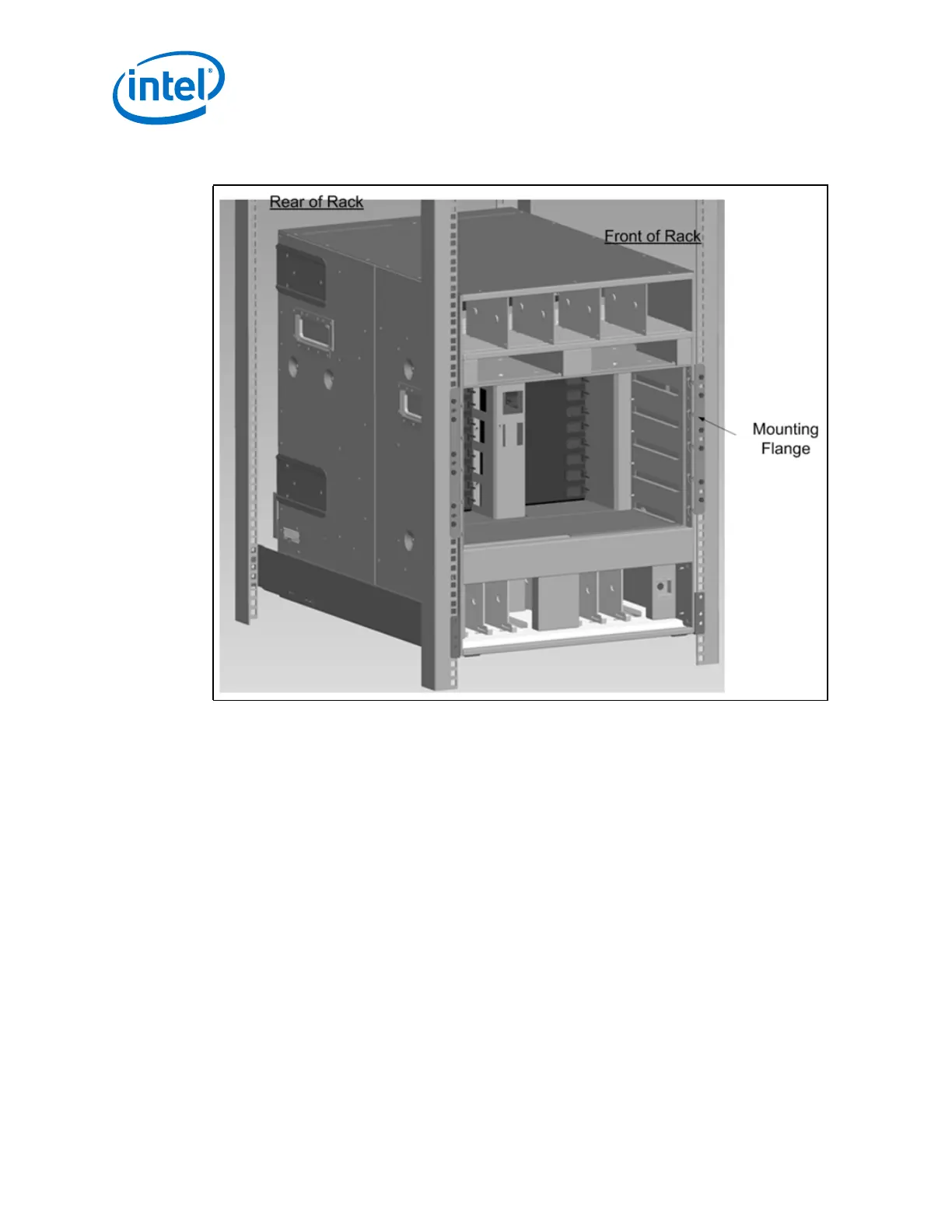

Figure 26. Mounting Flange Installation
