12000 Series Switches
True Scale Fabric Switches 12000 Series Hardware
Installation Guide July 2015
96 Order Number: G91928004US
E.2.1.2 Replacement Procedures
1. Install the hat rails to the switch.
2. Rack mount the switch in the existing rails on the rack.
3. Connect Ethernet and serial cables.
4. Connect AC power.
5. Change the switch, gateway and subnet mask addresses to a new network address.
6. Cable all applicable IB ports.
E.2.2 Fan/Power Supply Replacement
FRU part number:
• 12300PS01
Note: These fan/power supplies are to be used exclusively with the Intel
®
12300 QDR IB
switch and are not intended to be sold separately.
E.2.2.1 Removal Procedures
1. Push the finger tab to the right.
2. While holding the finger tab, pull the module handle to disengage the unit from the
switch.

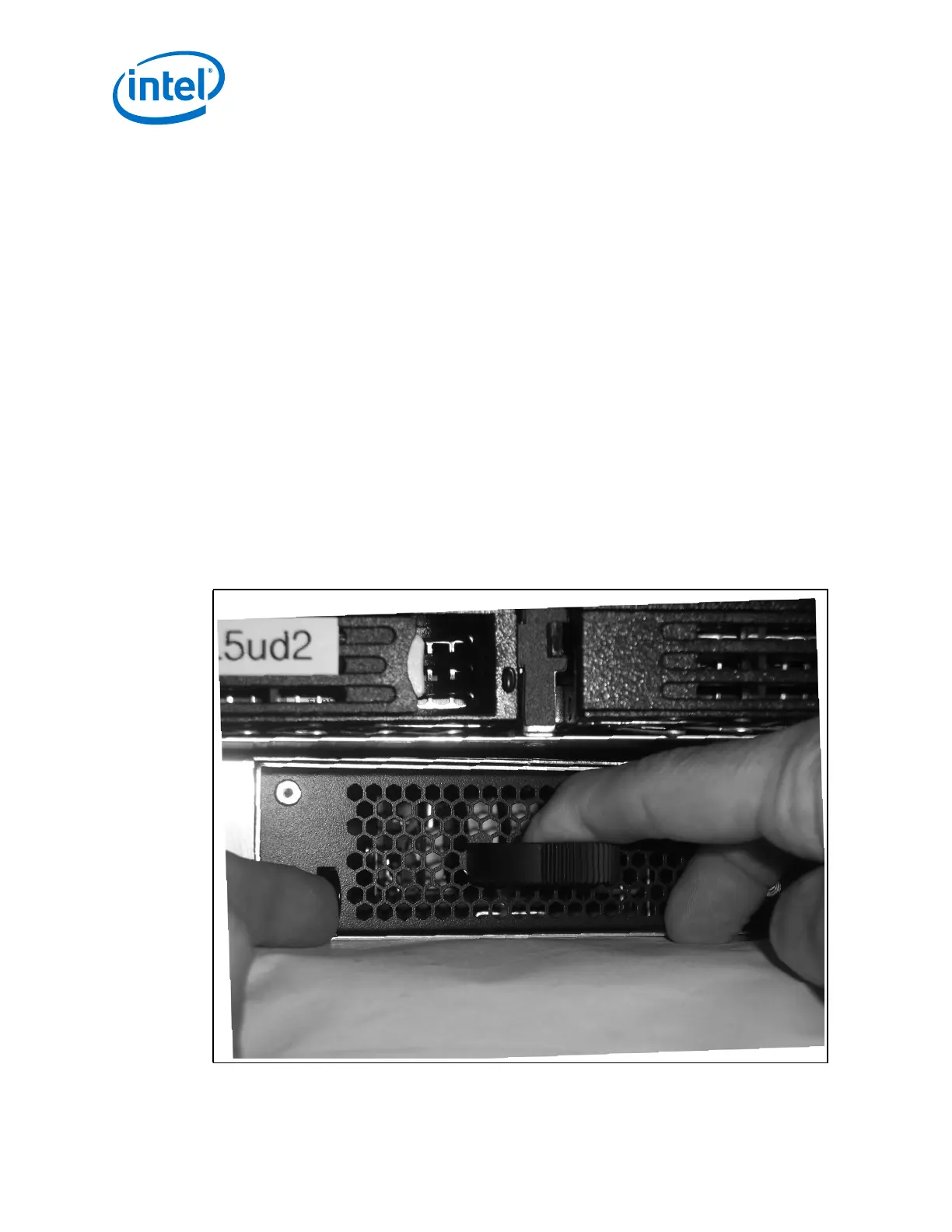

Figure 70. 12300 Fan/Power Module Removal
