True Scale Fabric Switches 12000 Series Hardware
July 2015 Installation Guide
Order Number: G91928004US 43
12000 Series Switches
8. Installing the chassis in the rack: Align the chassis with the rack. Raise the chassis
using a pallet jack such that the bottom of the chassis is at or slightly higher than
the top surface of the support shelf pre-installed in the rack. Lock the pallet jack
wheels. Use a group of people to push the chassis from the front to slide it off the
pallet and on the support shelf. The chassis should be inserted into the rack until
the rear of the chassis base is against the rear support bracket.

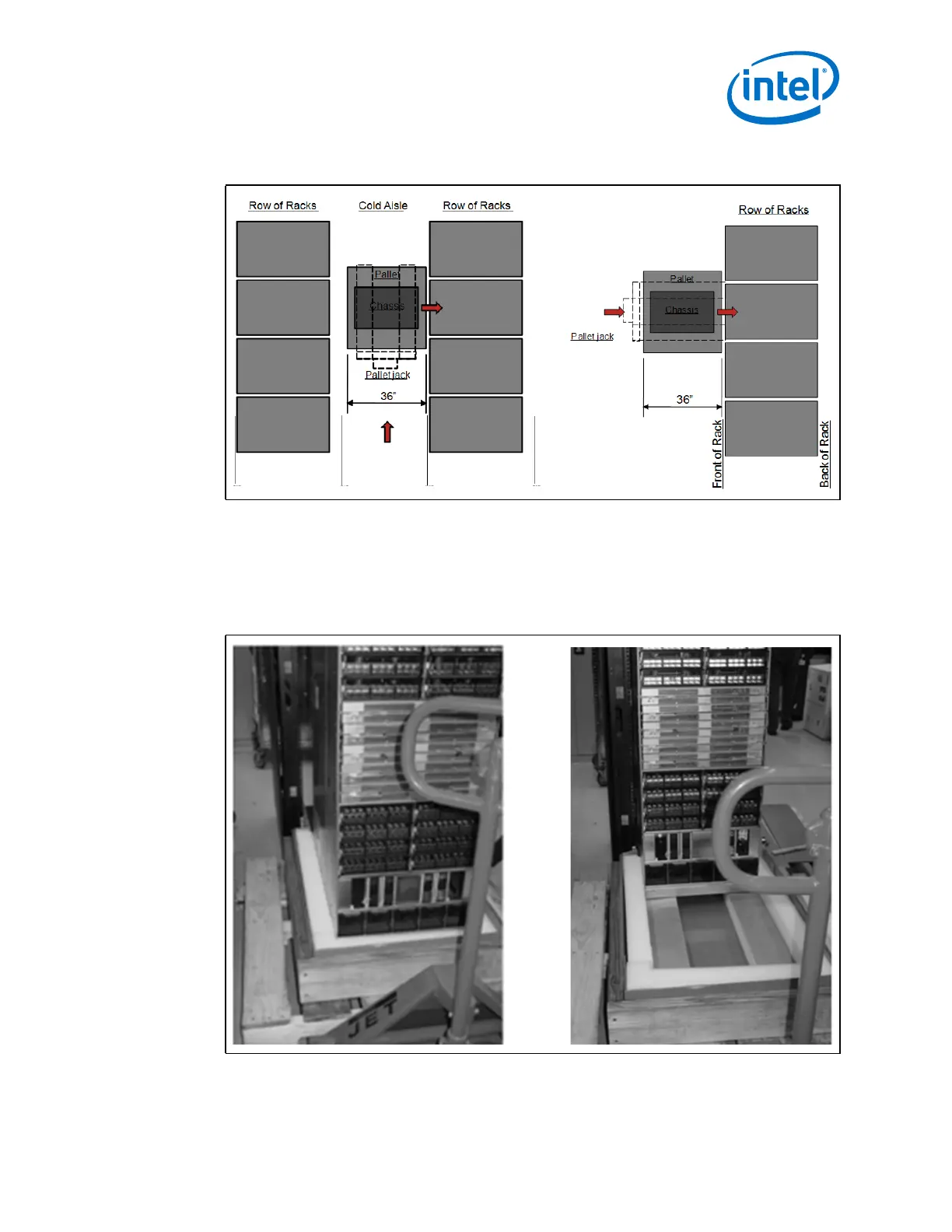

Figure 36. Positioning the Switch
Figure 37. Sliding the Switch off the Pallet
