9. If applicable, replace the door(s) on the rack.
2.6 12800-180 Installation
2.6.1 Mounting Hardware Kit Contents:
Note: The mounting kit contains all of the necessary parts for installing and mounting the
switch into a 19" 4-post server rack, with a distance between front and rear rack posts
ranging from 28" - 33" (711mm - 838mm).
• Support Rails
• HAT Brackets
• C-Brackets
• #8–32 Flat Head Screws
• M6 Mounting Screws
• M6 Clip Nuts

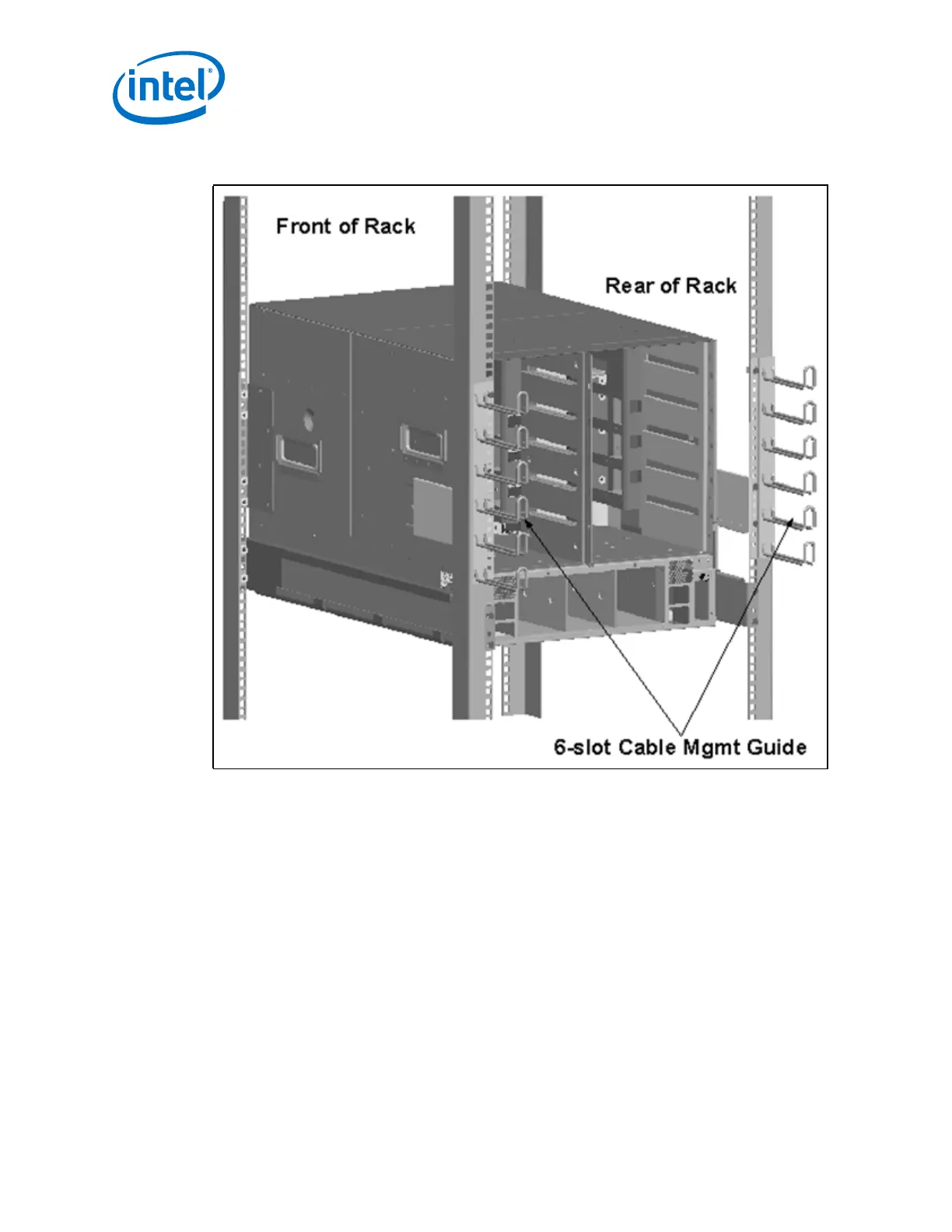

Figure 21. Cable Management Installation
