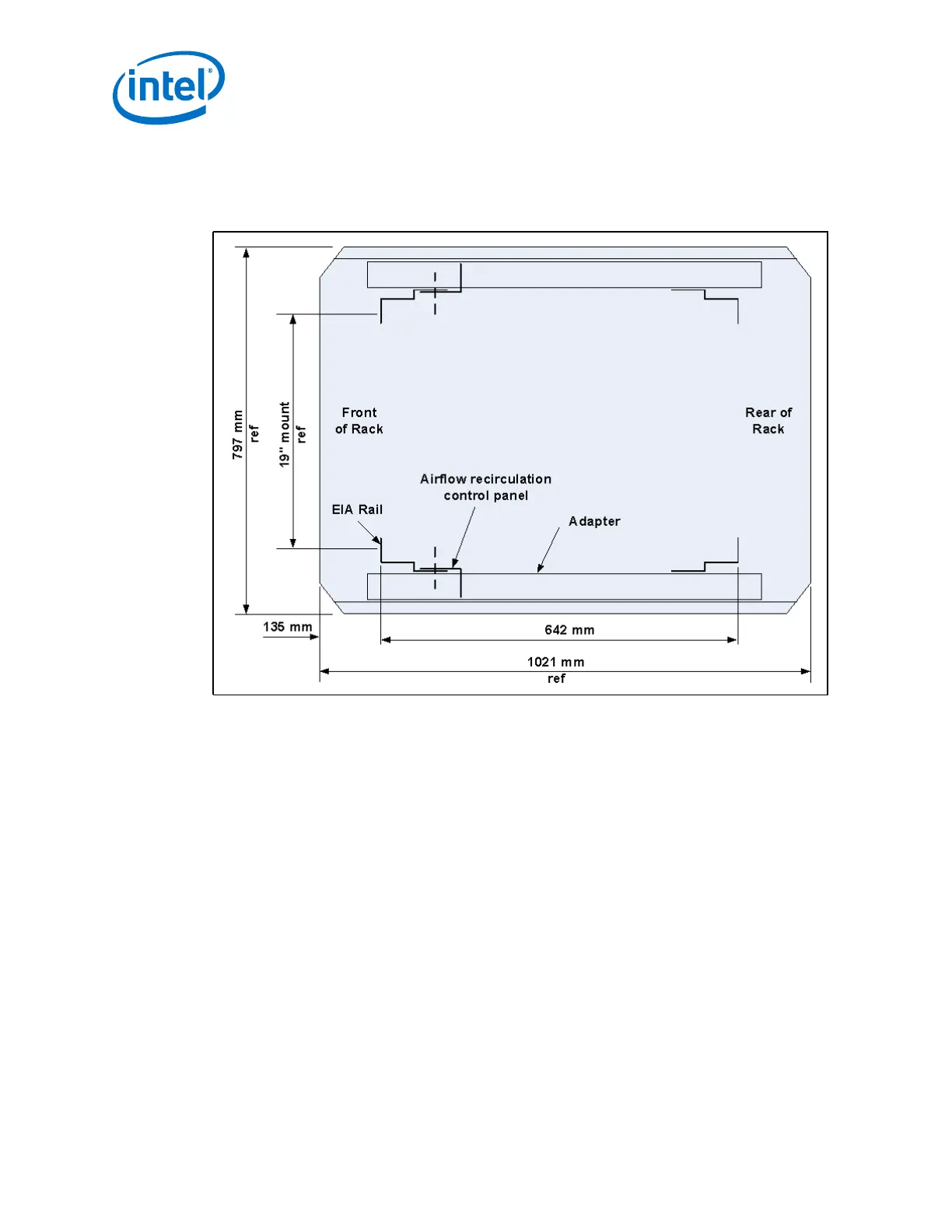

recirculation control panels should be installed in a rack to minimize airflow
recirculation between the hot and cold isles. Recirculation control panels for wide racks
and installation instructions are available from rack suppliers.
2.7.3 Installation Tasks
Note: It is recommended that 12800-360 is installed into the rack at 5U or 6U location. This
will locate the chassis approximately 12" from the floor and will allow the chassis to be
moved onto the support rails by sliding off the pallet.
1. Install clip nuts: If applicable, remove the doors of the rack. Install M6 clip nuts in
the following locations on EIA rails for U5 installation. For U6 installation, increment
clip nut locations by one U (1.75”).
Figure 30. Locating Mounting Posts
