12. Attach the cable management guides.
If applicable, attach the cable management guides to the front and rear EIA
mounting rails, and fasten with M6 screws to the pre-installed clip nuts. The guides
should be installed such that the wire frame supports line up with the chassis leaf

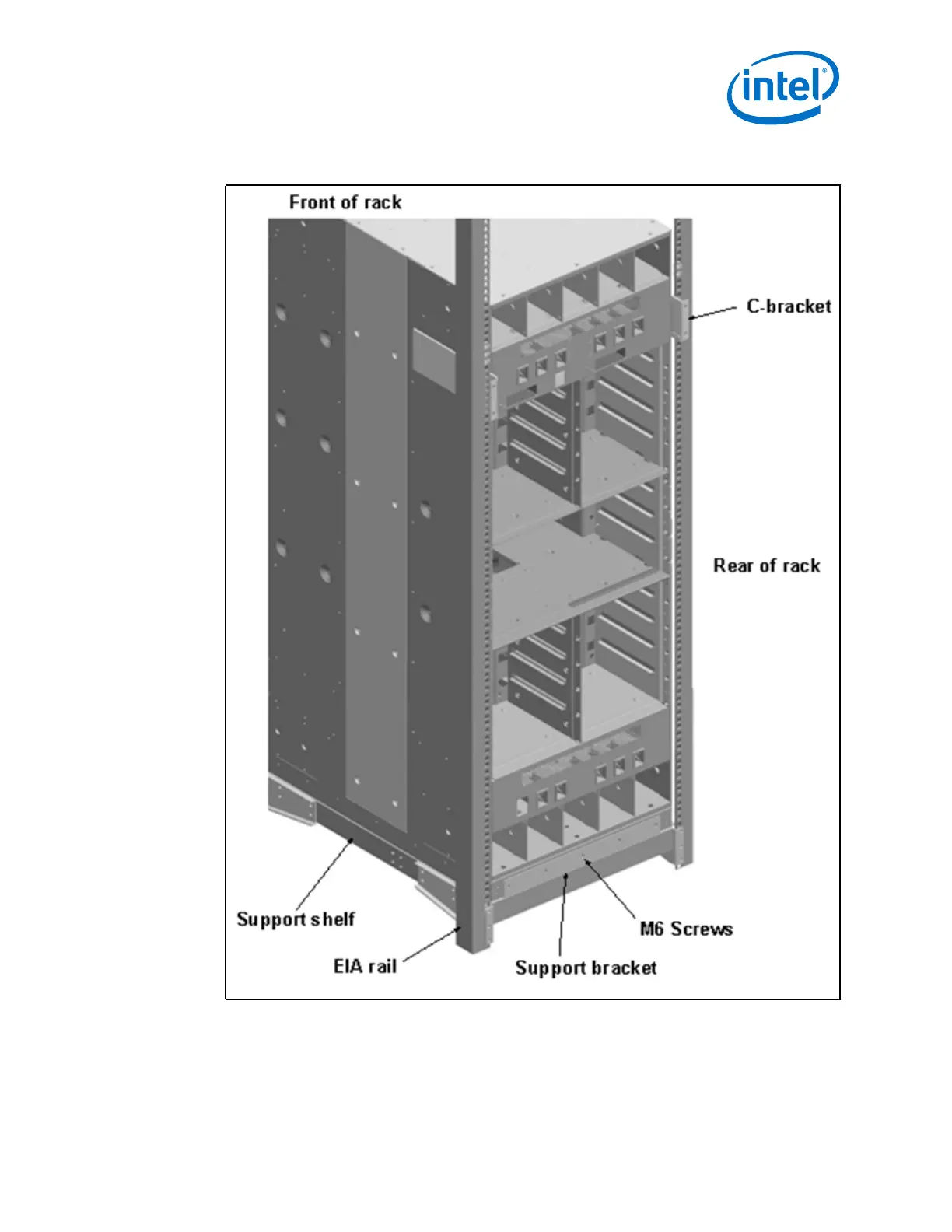

Figure 39. Fasten the Chassis to the Back of the Rack
