True Scale Fabric Switches 12000 Series Hardware
July 2015 Installation Guide
Order Number: G91928004US 55
12000 Series Switches
For example, to combine ports 2 and 20:
1. Log into the switch CLI with the login
admin and password adminpass.
2. Enable port 2 with a command similar to:
ismPortSetWidth Cable02 7 -bounce
and press ENTER.
3. Enable port 20 using same command as above, changing the port number (that is,
ismPortSetWidth Cable20 7 -bounce).
4. At the switch, unplug and reinsert the cables to the physical ports. After reinserting
the first cable, the user has four (4) seconds to reinsert the second cable
associated with the 8x connection before the link begins training.
Note: For proper 8x functionality, it is required that both QSFP cables for a DUO are from the
same manufacturer, and are the same length.
5. After reinserting the cables, bring up Chassis Viewer by entering the active IP
address into your browser address box. The 8X ports are displayed as shown in
Figure 51 where both ports of the DUO have LEDs on (that is, they are green).

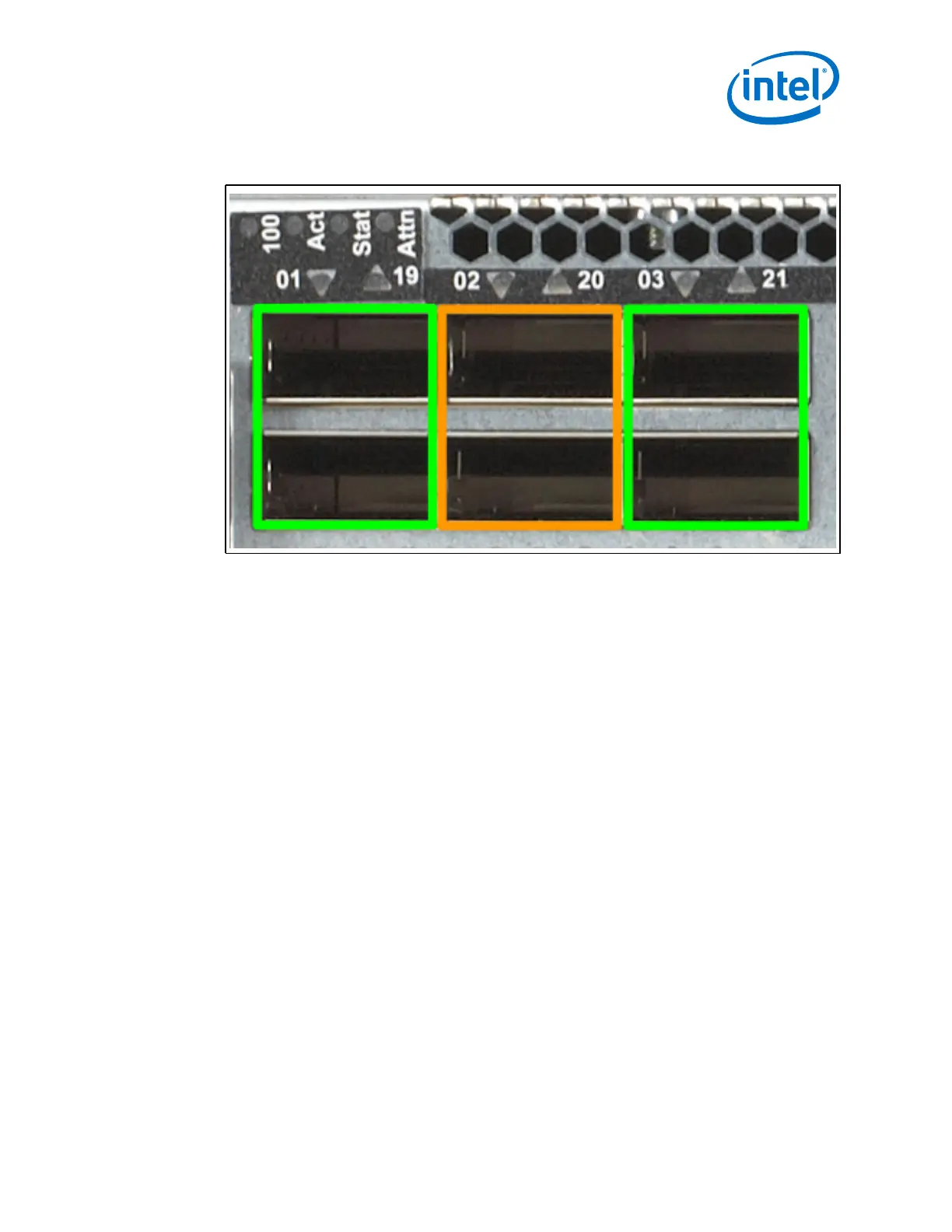

Figure 50. 12200/12300 8x DUOs
