True Scale Fabric Switches 12000 Series Hardware
July 2015 Installation Guide
Order Number: G91928004US 57
12000 Series Switches
The first port of the group (port 10) is shown as active and Up; the other port in the
DUO (port 28) is displayed as down and Disabled.
2.9.5.2 Creating an 8x Port: Externally-managed 12200
Externally-managed 12200 switches are shipped with all ports having a port width of
1x/4x/8x. When connecting an externally-managed 12200 to another switch that has
8x ports defined (for example, another externally-managed 12200, or a 12800 switch
leaf module), links come up automatically as 8x if the ports are cabled such that 8x
DUOs are formed on both sides of the connection. For example, if ports 1 and 19 of an
externally-managed 12200 is connected to ports 1 and 19 of another externally-
managed 12200, an 8x link is created.

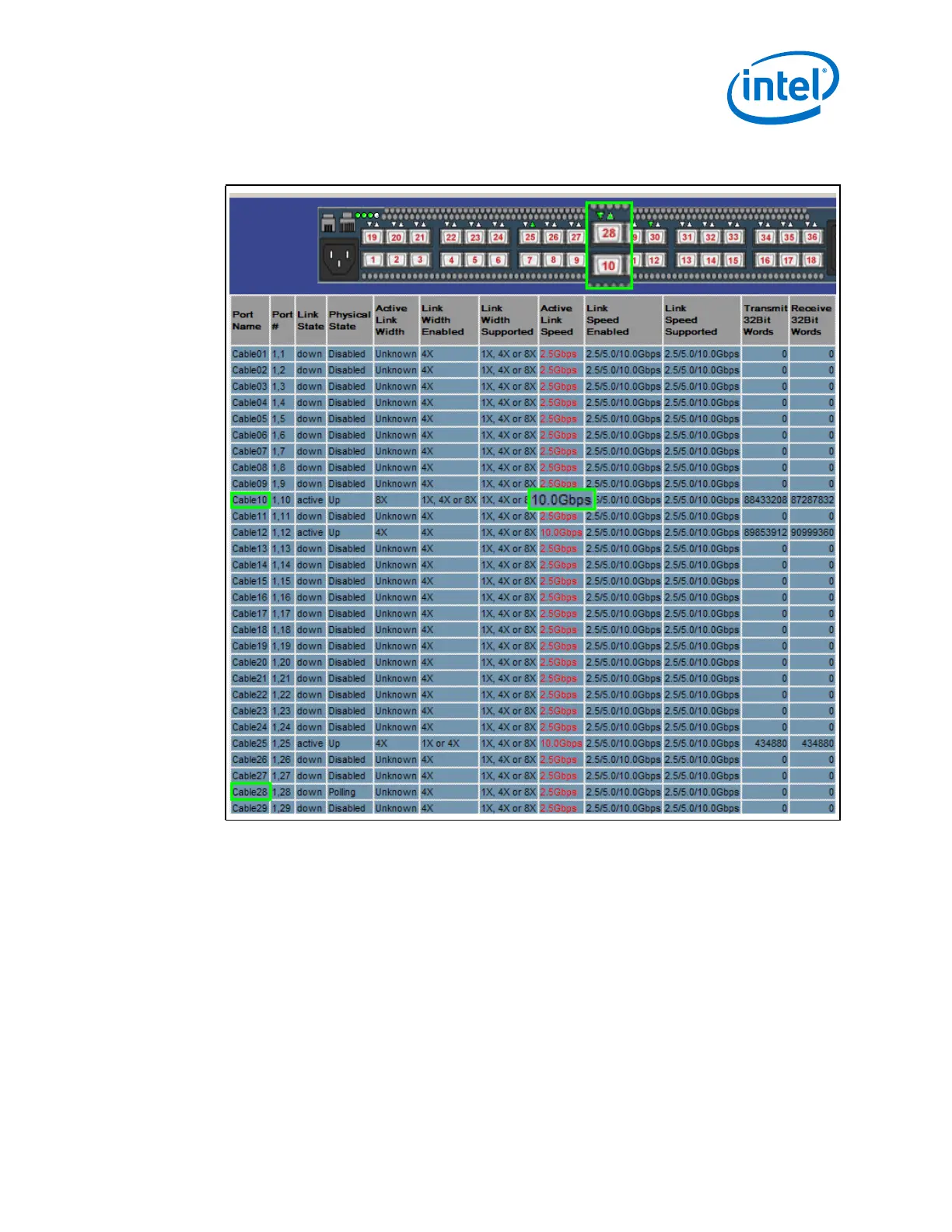

Figure 52. 8X Port Statistics
To Next Page
