12000 Series Switches
True Scale Fabric Switches 12000 Series Hardware
Installation Guide July 2015
36 Order Number: G91928004US
9. If applicable, replace the door(s) on the rack.
2.7 12800-360 Installation
2.7.1 Mounting Hardware Kit Contents:
Note: The following procedures are for installing the switch using variable distances between
the front and rear rack posts.
• Mounting Kit containing:
— Support Shelf
— HAT Brackets
— C-Brackets
— #10 Mounting screws
— M6 Mounting Screws
— M6 Clip Nuts
2.7.2 Selecting a Rack
12800-360 is the largest in the 12800-series of switches, capable of supporting up to
864 IB ports operating at QDR speed. To facilitate installation and management of such
a large number of cables, the 12800-360 switch was designed with cables in the front
and the rear of the chassis. This reduces cable density and improves cable
management and accessibility.

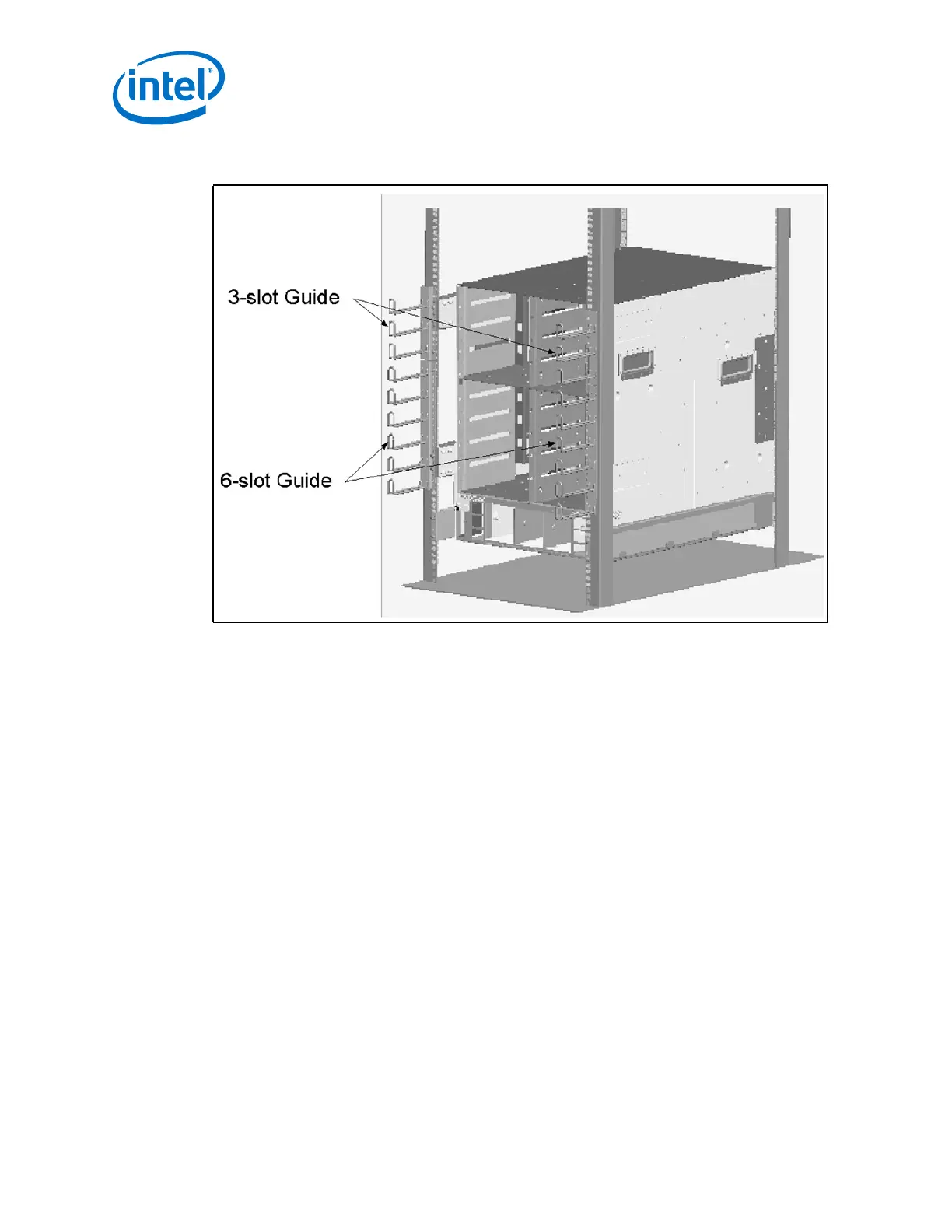

Figure 28. Cable Management Guide Installation
