12000 Series Switches
True Scale Fabric Switches 12000 Series Hardware
Installation Guide July 2015
26 Order Number: G91928004US
5. Orient the chassis such that mounting flanges are in the front of the rack. Install
the chassis in the rack.
Warning: To avoid injury, do not manually lift the chassis when fully loaded. Use a mechanized lift
whenever possible. For a manual lift, unload the product FRUs to minimize the weight.
Use a team of people appropriate to the weight of the product, and in conjunction with
applicable laws and guidelines.

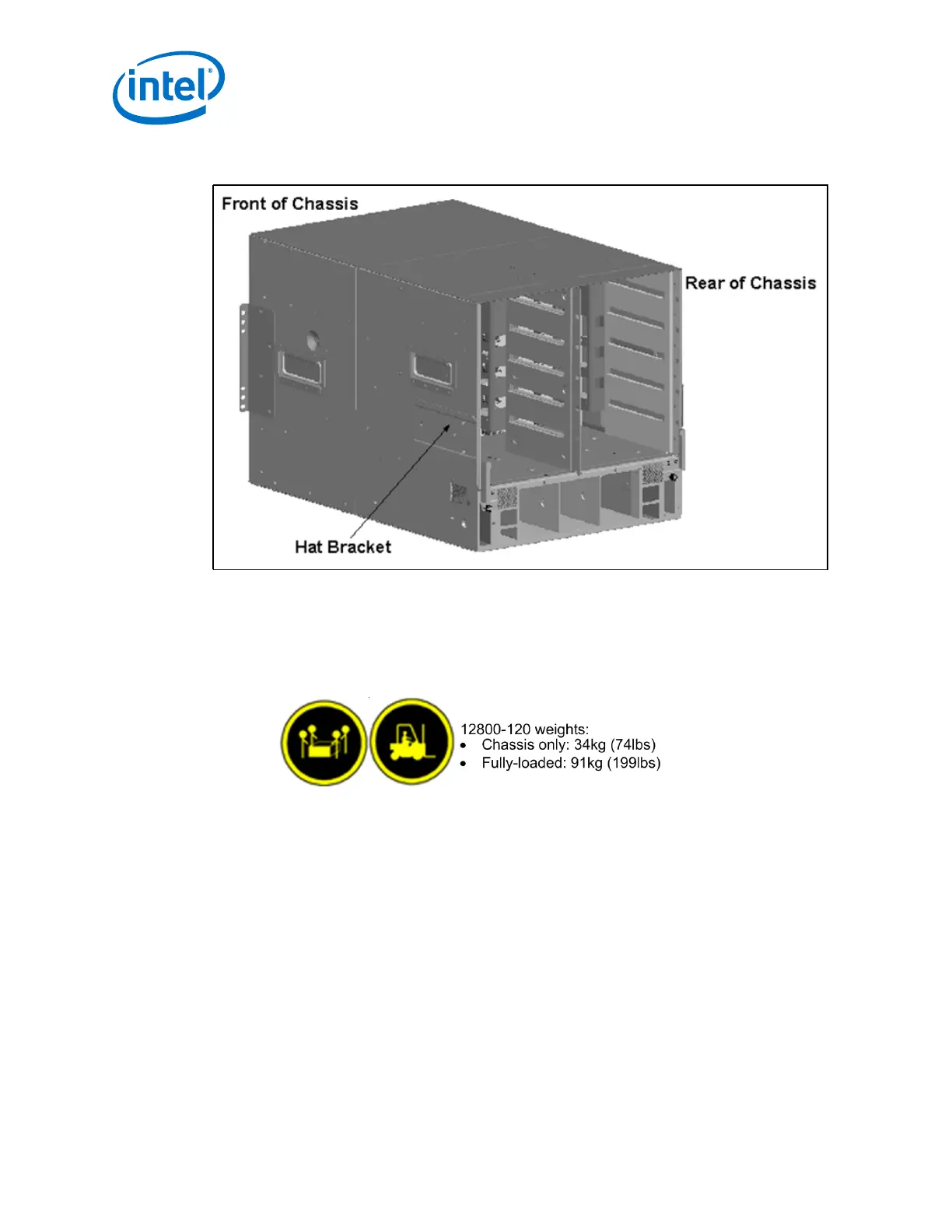

Figure 17. Hat Bracket Installation
