Intel True Scale Fabric Switches 12200 User Manual

12000 Series Switches
True Scale Fabric Switches 12000 Series Hardware
Installation Guide July 2015
92 Order Number: G91928004US
E.1.2.1 Removal Procedures
1. Power down the switch by unplugging AC power.
2. Remove all applicable IB, Ethernet and Serial cables. Set these aside for reinstalling
after replacing the management card.
3. Remove the switch from the rack. Keep all rail hardware installed in the rack.
4. Remove the management card slot cover and set aside the screw to use on the new
management card.
E.1.2.2 Replacement Procedures
1. Insert the management card at the angle displayed in Figure 67 to ensure proper
contact with the connectors.

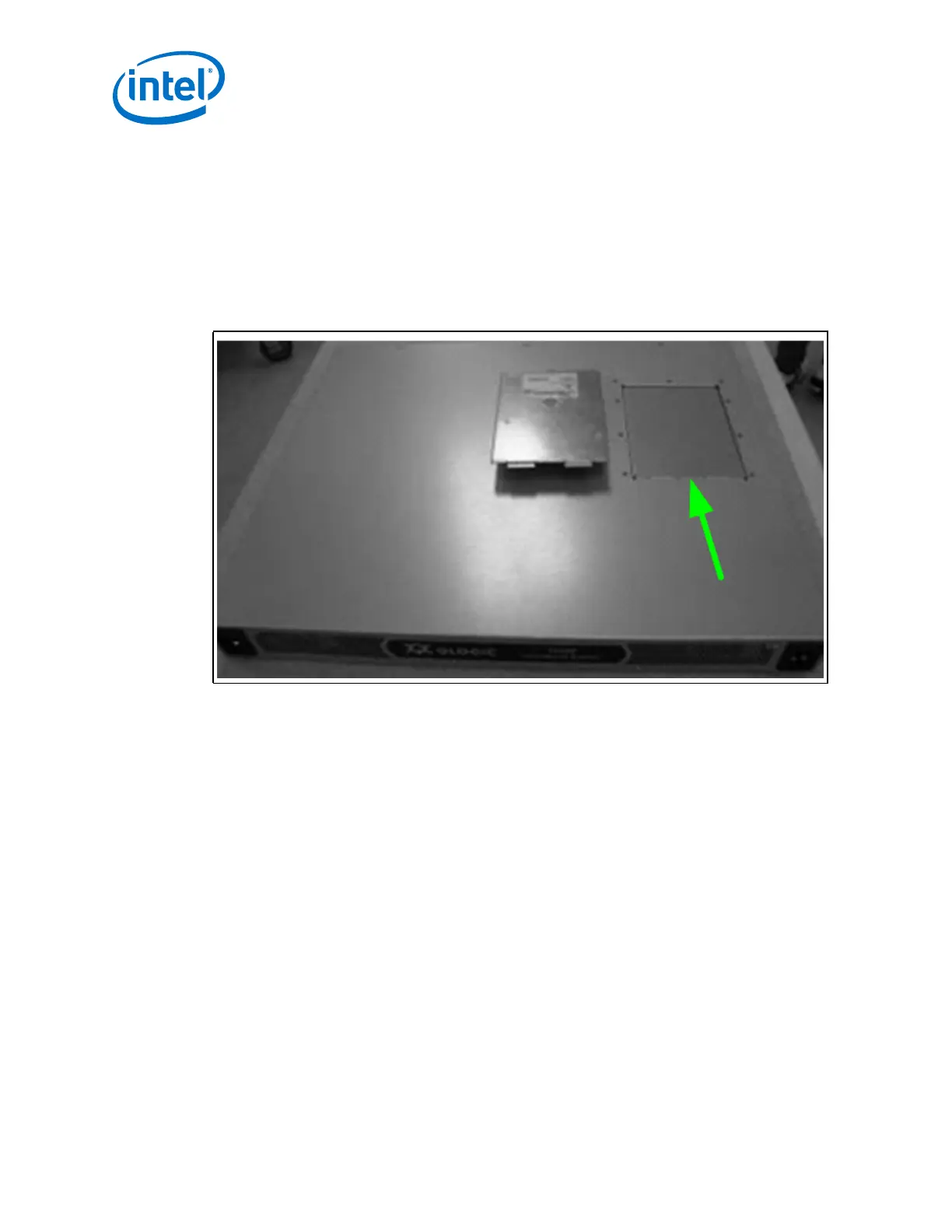

Figure 66. 12200 Management Card Slot Cover
