12000 Series Switches
True Scale Fabric Switches 12000 Series Hardware
Installation Guide July 2015
94 Order Number: G91928004US
3. Complete the replacement by re-inserting the screw as displayed in Figure 69.

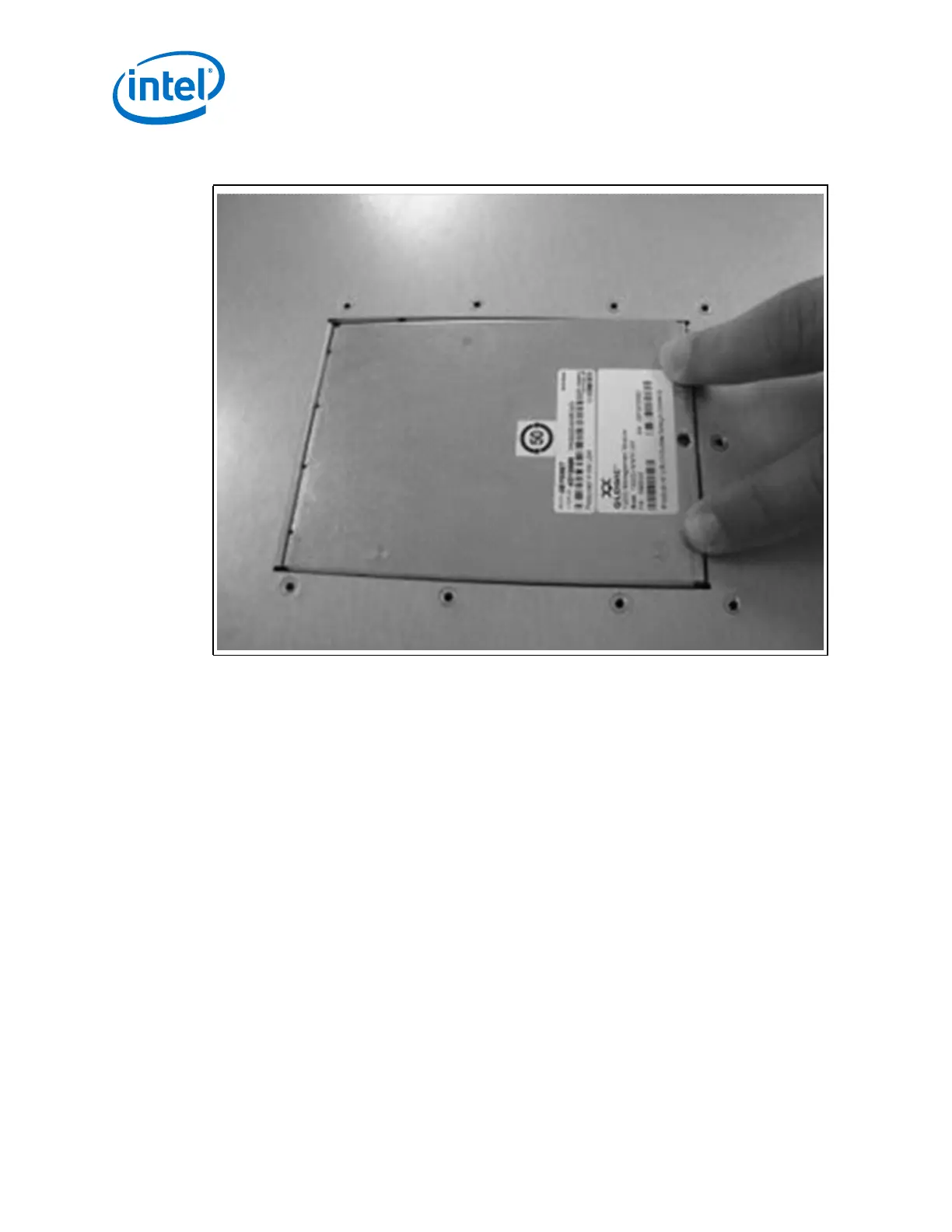

Figure 68. 12200 Management Card Insertion (2)
