Intel Xeon Datasheet

Intel® Xeon™ Processor with 800 MHz System Bus
Datasheet 25
NOTES:
1. Processor or voltage regulator thermal protection circuitry should not trip for load currents greater than
I
CC_TDC
.
2. Not 100% tested. Specified by design characterization.
NOTES:
1. Processor or voltage regulator thermal protection circuitry should not trip for load currents greater than
I
CC_TDC
.
2. Not 100% tested. Specified by design characterization

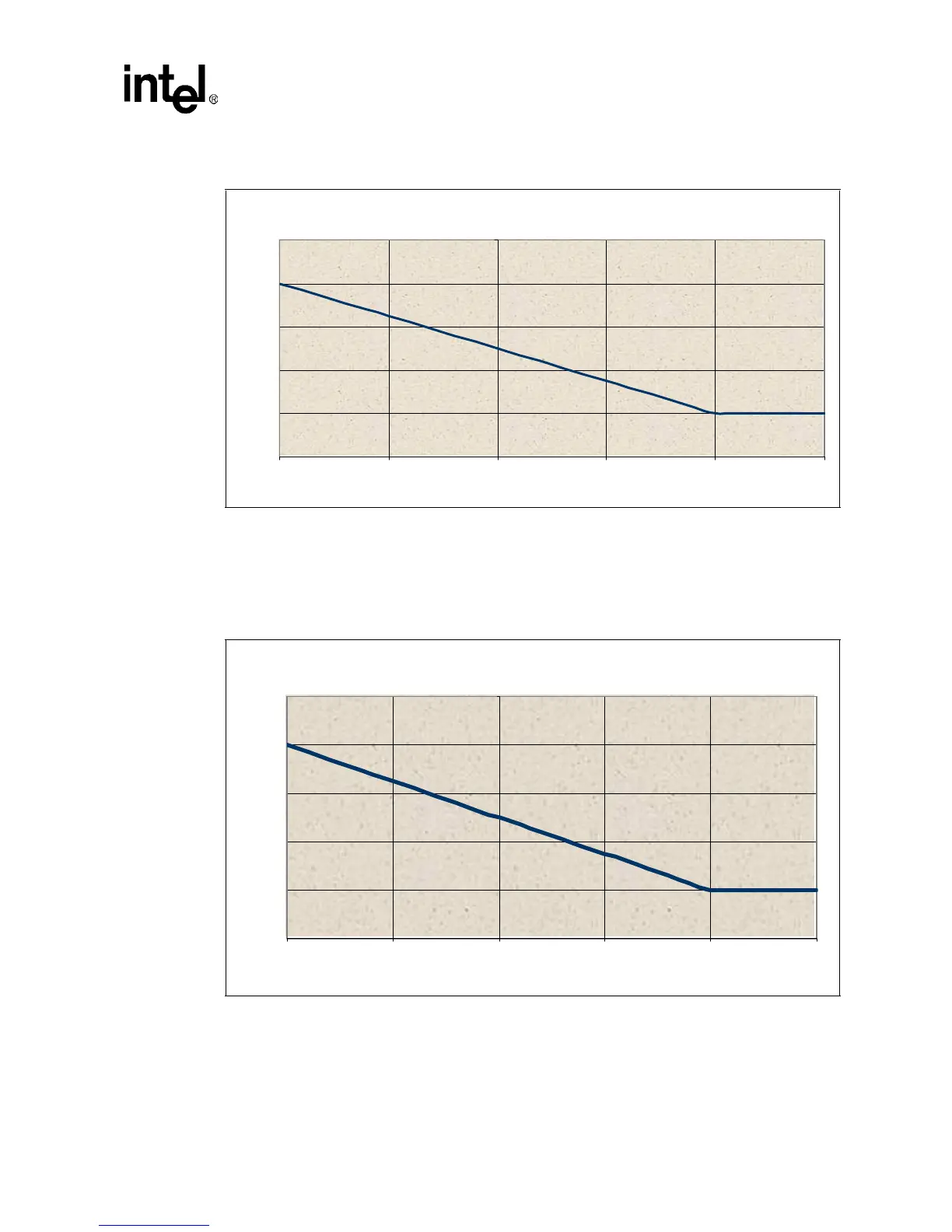

Figure 2. Intel® Xeon™ Processor with 800 MHz System Bus Load Current vs. Time (VRM 10.0)
V RM 10.0 Current
80
85
90
95
100
105
0.01 0.1 1 10 100 1000
Time Duration (s)
Sustained Current (A)
Sustained Current [A]
Figure 3. Intel® Xeon™ Processor with 800 MHz System Bus Load Current vs. Time (VRM 10.1)
VRM 10.1 Current
10 0
10 5
110
115
12 0
12 5
0.01 0.1 1 10 100 100
0
Time Duration (s)
Sustained Current [A]
