Intel® Xeon™ Processor with 800 MHz System Bus
36 Datasheet
3.8 Processor Markings
Figure 9 shows the topside markings and Figure 10 shows the bottom-side markings on the
processor. These diagrams are to aid in the identification of the Intel® Xeon™ processor with 800
MHz system bus.
NOTES:
1. All characters will be in upper case.
2. Drawing is not to scale.
NOTES:
1. All characters will be in upper case.
2. Drawing is not to scale.

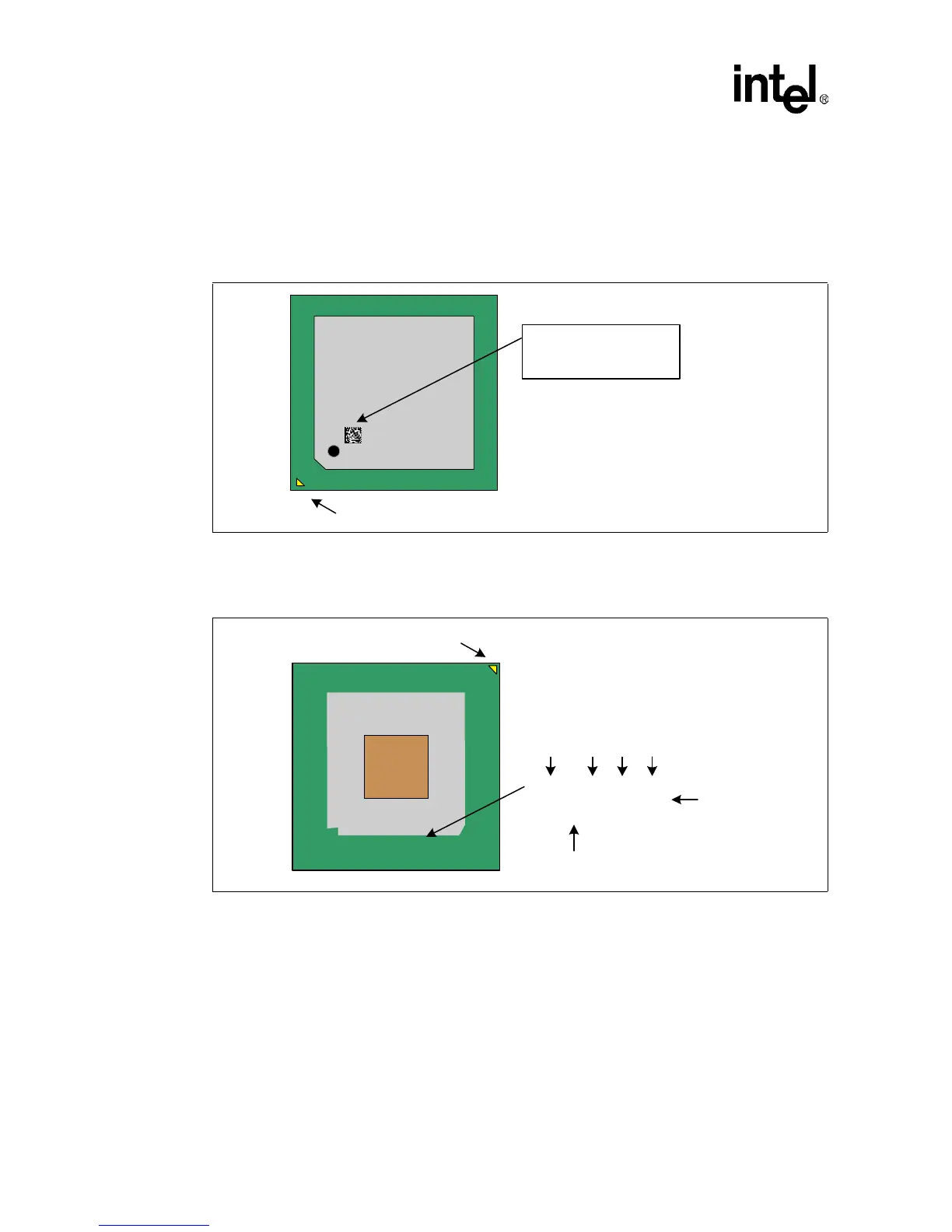

Figure 9. Processor Top-Side Markings (Example)
2D Matrix
Includes ATPO and Serial
Number (front end mark)
Pin 1 Indicator
Processor Name
i(m) ©’03
ATPO
Serial Number
Figure 10. Processor Bottom-Side Markings (Example)
Pin 1 Indicator
3600DP/1MB/800/1.325V
SL6NY COSTA RICA
C0096109-0021
FPO—Serial #
(13 characters)
Speed/Cache/Bus/Voltage
S-Spec
Country of Assy
Pin Field
Cavity
with
Components
Text Line1
Text Line2
Text Line3
