Intel® Xeon™ Processor with 800 MHz System Bus
Datasheet 27
NOTES:
1. The V
CC_MIN
and V
CC_MAX
loadlines represent static and transient limits. Please see Section 2.11.2 for V
CC
overshoot
specifications.
2. The V
CC_MIN
and V
CC_MAX
loadlines are plots of the discrete point found in Table 10.
3. Refer to Table 9 for processor VID information.
4. The loadlines specify voltage limits at the die measured at the VCCSENSE and VSSSENSE pins. Voltage regulation feedback
for voltage regulator circuits must be taken from processor V
CC
and V
SS
pins. Refer to the Voltage Regulator Module (VRM)
and Enterprise Voltage Regulator Down (EVRD) 10.0 Design Guidelines and Voltage Regulator Module (VRM) and Enterprise
Voltage Regulator Down (EVRD) 10.1 Design Guidelines for socket loadline guidelines and VR implementation.
2.11.2 V
CC
Overshoot Specification
The Intel® Xeon™ processor with 800 MHz system bus can tolerate short transient overshoot
events where V
CC
exceeds the VID voltage when transitioning from a high-to-low current load
condition. This overshoot cannot exceed VID + V
OS_MAX
. (V
OS_MAX
is the maximum allowable
overshoot above VID). These specifications apply to the processor die voltage as measured across
the VCCSENSE and VSSSENSE pins.

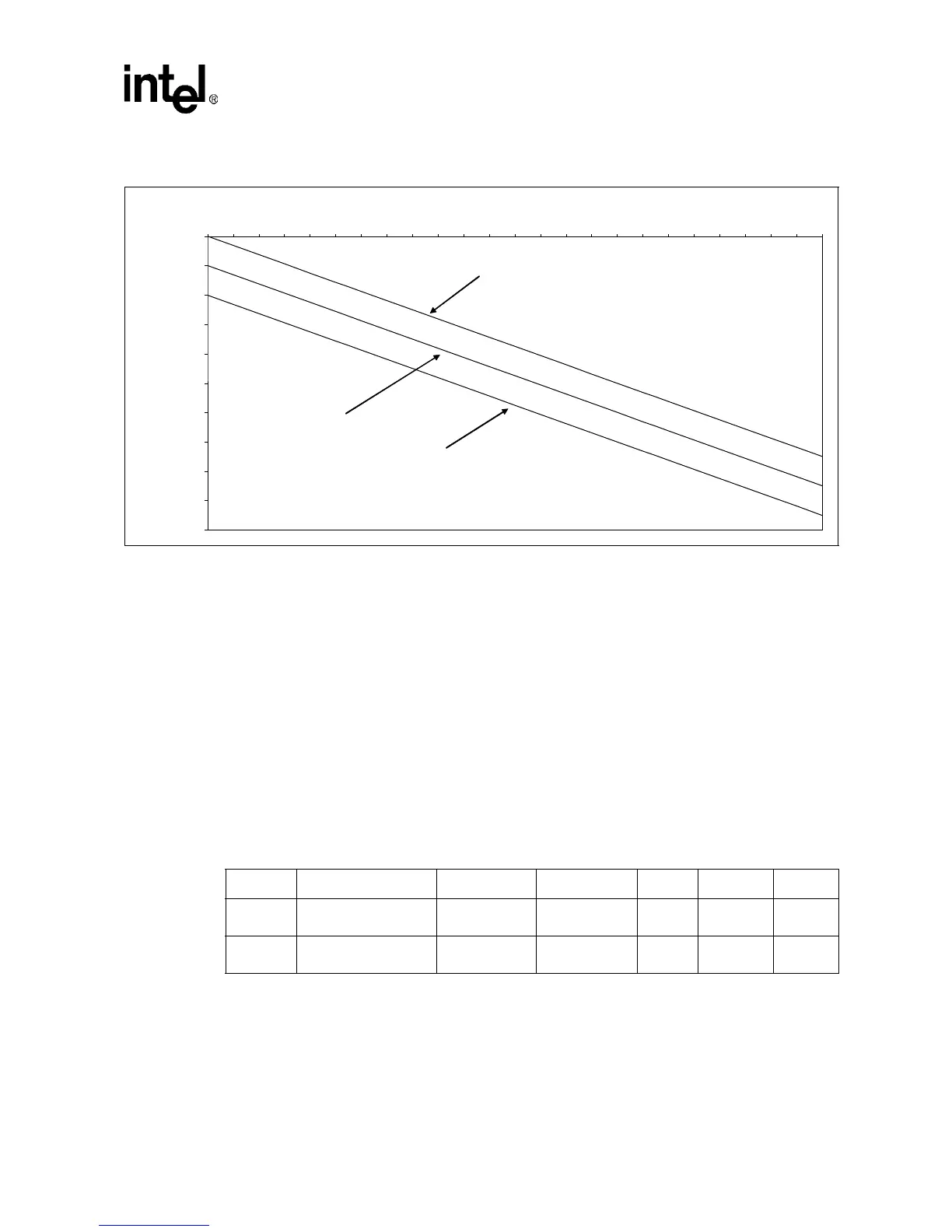

Figure 4. V
CC
Static and Transient Tolerance
VID - 0.000
VID - 0.020
VID - 0.040
VID - 0.060
VID - 0.080
VID - 0.100
VID - 0.120
VID - 0.140
VID - 0.160
VID - 0.180
VID - 0.200
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120
Icc [A]
Vcc [V]
V
CC
Typical
V
CC
Maximum
V
CC
Minimum
Table 11. V
CC
Overshoot Specifications
Symbol Parameter Min Max Units Figure Notes
V
OS_MAX
Magnitude of V
CC
overshoot above VID
0.050 V 5
T
OS_MAX
Time duration of V
CC
overshoot above VID
25 µs 5
