Displays the status of the TX transmit function. If the circle next to TX Enable shows
“Blue”, it means the antenna TX function is enabled. If the circle shows “Red”, it
means the antenna TX function is disabled. The TX function will be enabled only if
all ve factors (Enable Mode, Blockage, Pointing, Modem Lock, and LNB Rotate)
listed below show a “Blue” circle next to each of them. However, if the “Use TX
Mute” function in the ACU System Work Tab is disabled, the TX function will be
enabled regardless the above factors.
• Enable Mode: displays whether or not the antenna is in SETUP
mode. If the antenna is in Setup mode, the circle next to the
Enable Mode will show “Gray”.
• Blockage: displays whether or not the antenna is pointing in a
predened block zone(s). If the antenna is pointing in the blockage
zone, the circle next to the Blockage will show “Gray”. If the
antenna pointed outside the blockage zone, the circle next to the
Blockage will show “Blue”.
• Pointing: displays whether or not the antenna is pointing to the
target satellite. If the antenna is miss-pointing to the target
satellite, the circle next to the Pointing will show “Gray”. If the
antenna is pointing to the target satellite, the circle next to the
Pointing will show “Blue”.
• Modem Lock: displays whether or not the antenna is tracking onto
the correct satellite by receiving a conrmation signal from the
satellite modem. If the antenna is tracking on the wrong satellite,
the circle next to the Modem Lock will show “Gray”. If the antenna
is tracking on the correct satellite, the circle next to the Modem
Lock will show “Blue”.
• LNB Rotate: displays whether or not the LNB is rotating. If the
LNB is rotating, the circle next to the LNB Rotate will show
“Gray”. If the LNB is not rotating, the circle next to the LNB Rotate
will show “Blue”.

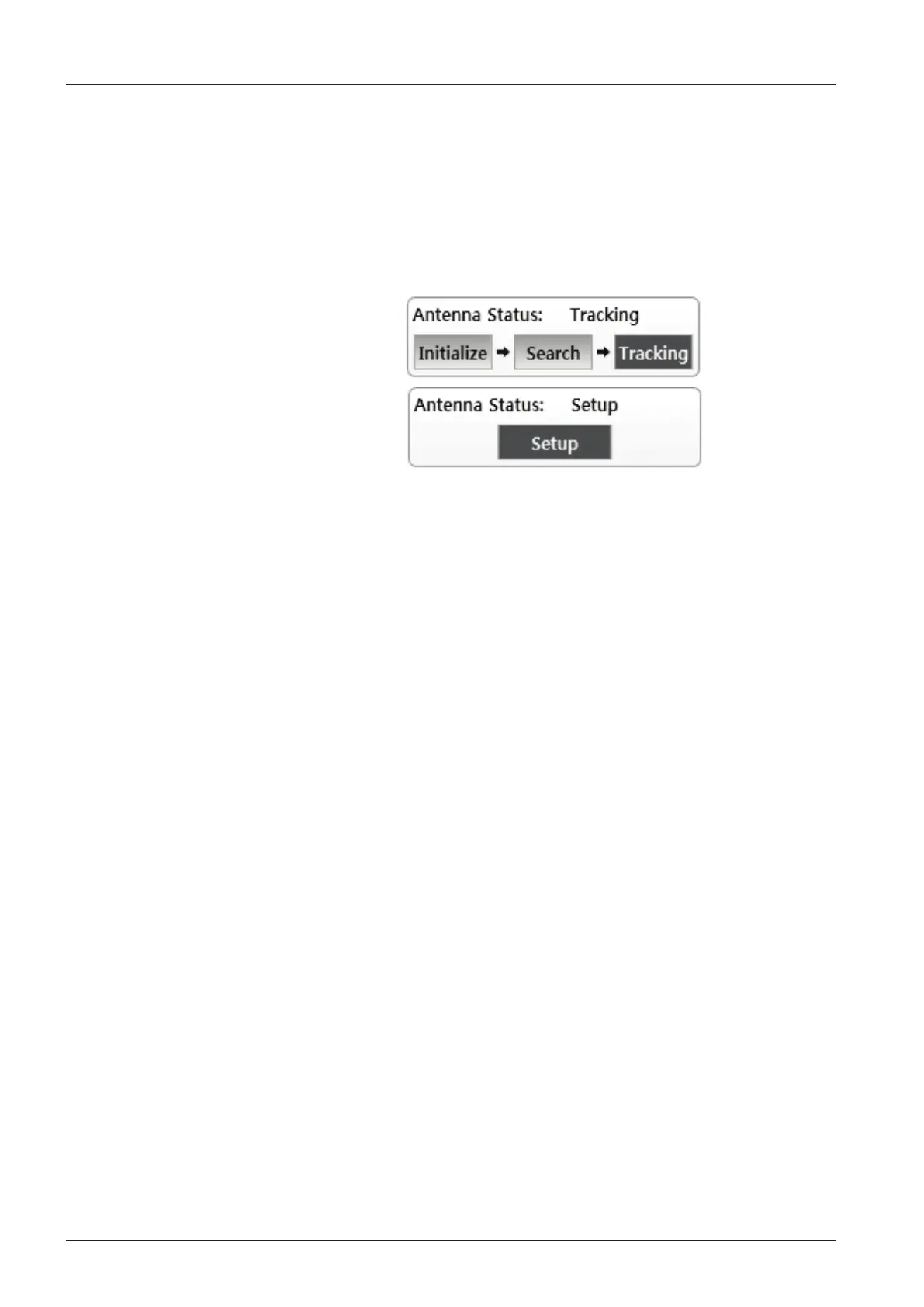

Figure 95. Antenna Status View
TX Enable
