117
APTUS
Shows "DVB" when DVB signal tracking mode is in use and "NBD" when NBD
signal tracking mode is in use. The “Red” line indicates the signal “Detect Level
Threshold” and the “Orange” line indicates the signal “Tracking Level Threshold”.
If the signal level is higher than the tracking level threshold, the signal level bar will
display “Blue” color. If the signal level is lower than the tracking level threshold, the
signal level bar will display “Orange” color and the antenna will stay in searching
mode.
Displays the current GPS location from the Antenna and Ship’s heading information.
The status light ashes green if the system receives a correct input of the GPS and
Ship’s heading.
Displays the antenna and the ACU rmware versions, and the library version. Please
note that the display may be different in accordance with the model.

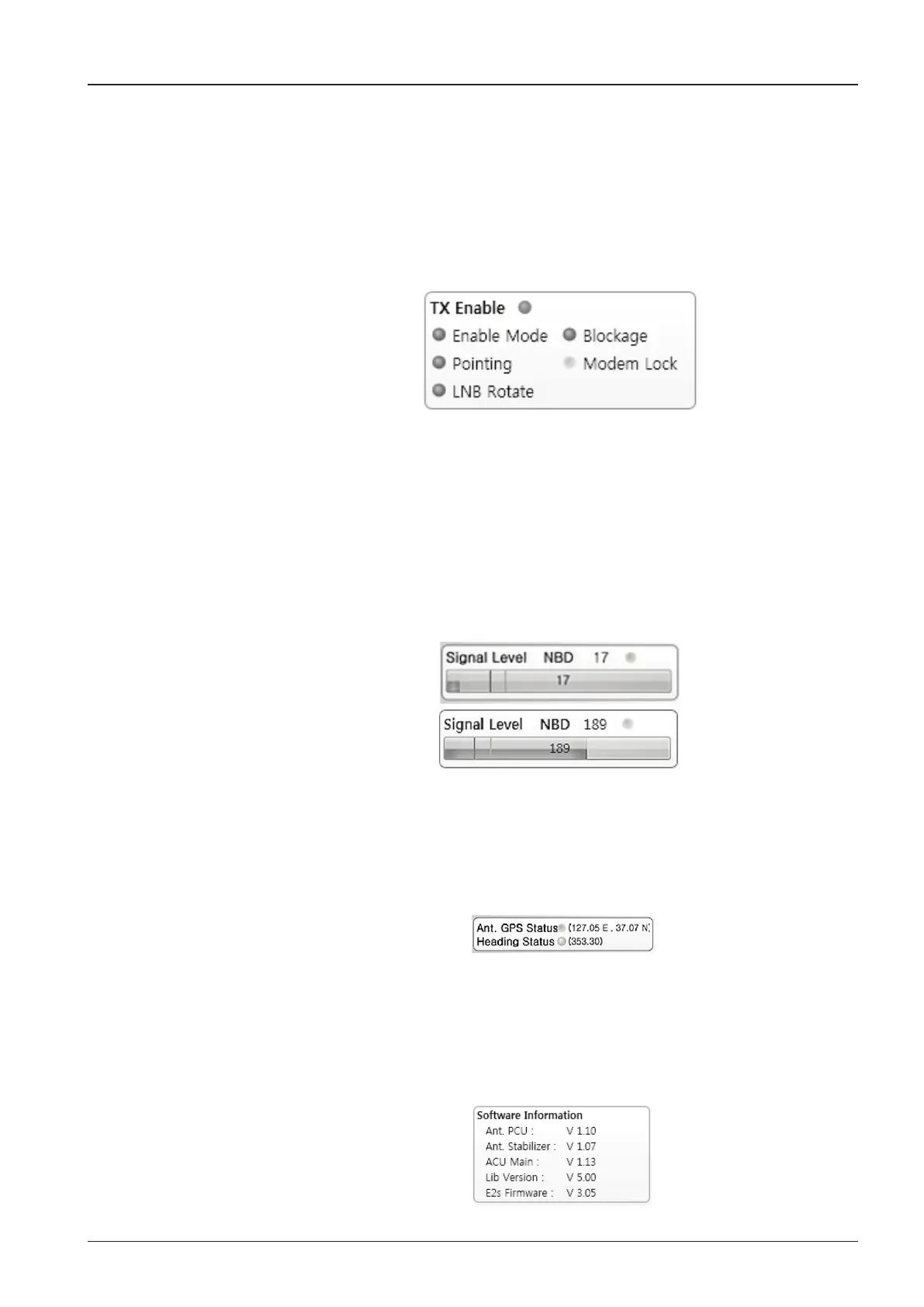

Figure 96. TX Enable Status View
Figure 98. GPS and Heading Information View
Figure 99. Software Information View
Signal Level
GPS and Heading
Software Information
Figure 97. Signal Level View
