v240M – Marine Satellite Communication System
126
Graphic View
This view provides information on Signal, Elevation (EL), Absolute AZ (Azimuth),
Relative AZ, Heading, AZ and EL in Single or Multi graph formats.
Select Graph Item: shows the graphs of only the checked item(s) in a
Single or Multi Graph View.
Single Graph View: supports multiple Graph Items in one large Graph View.
Multi Graph View: supports the Graph Item(s) chosen in each Graph View.
Start/Stop Save: the chosen item is saved within the data log.
Clear All: clears everything drawn on the Graph View window.
Set Pos.: sets the current position as center value of each Graph Item.
Current Pos.: moves to the location according to values of each Graph Item.
Span: sets the Display Range(s) of the corresponding Graph Item.
Period: displays and sets the signal sampling rate.
Graph Column Count: makes all Graph Views show in either a one or
two-column format.

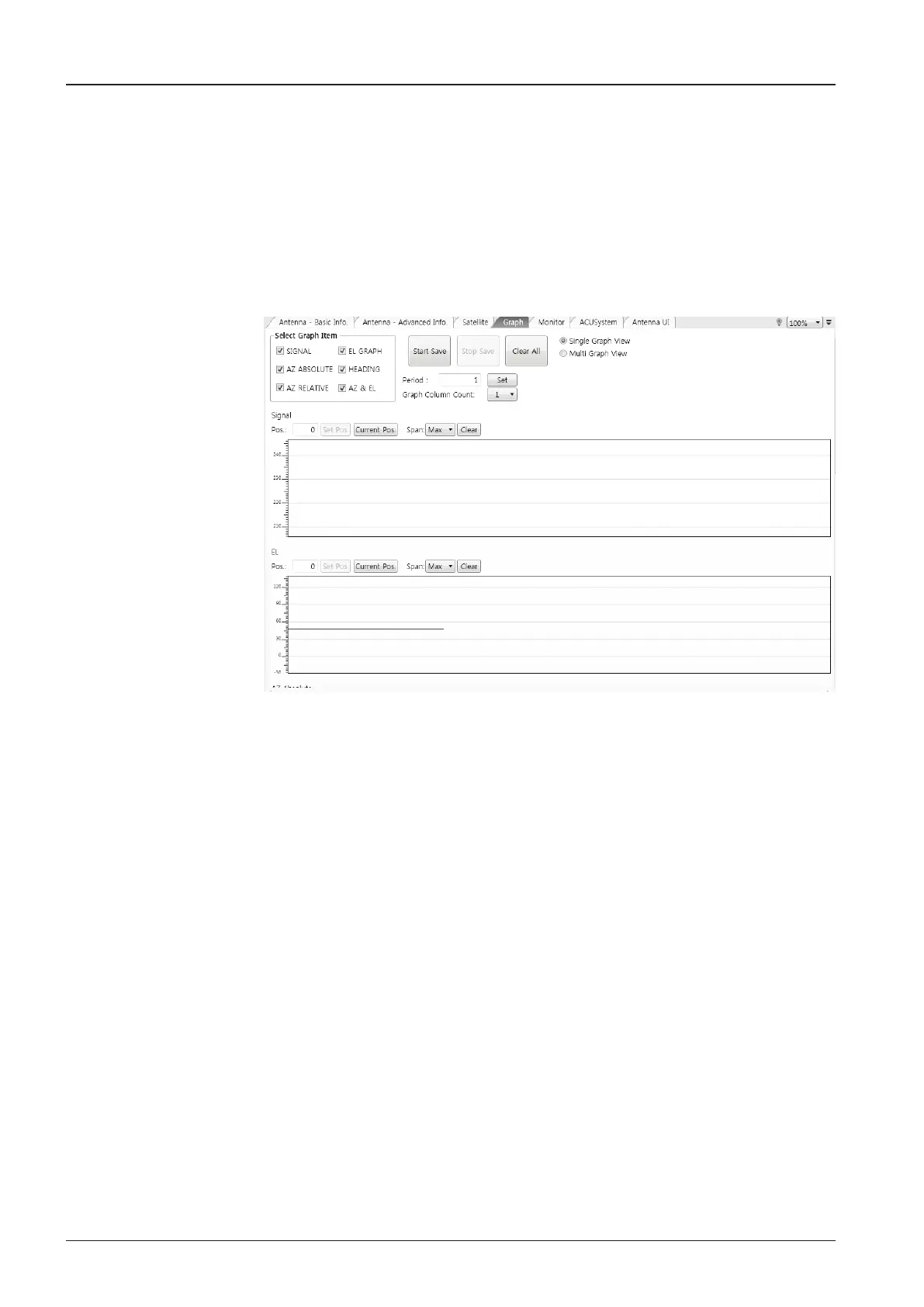

Figure 107. Garph View Tab
