ANTENNA INSTALLATION
Connect Ku Module Cables as shown in gure 46.

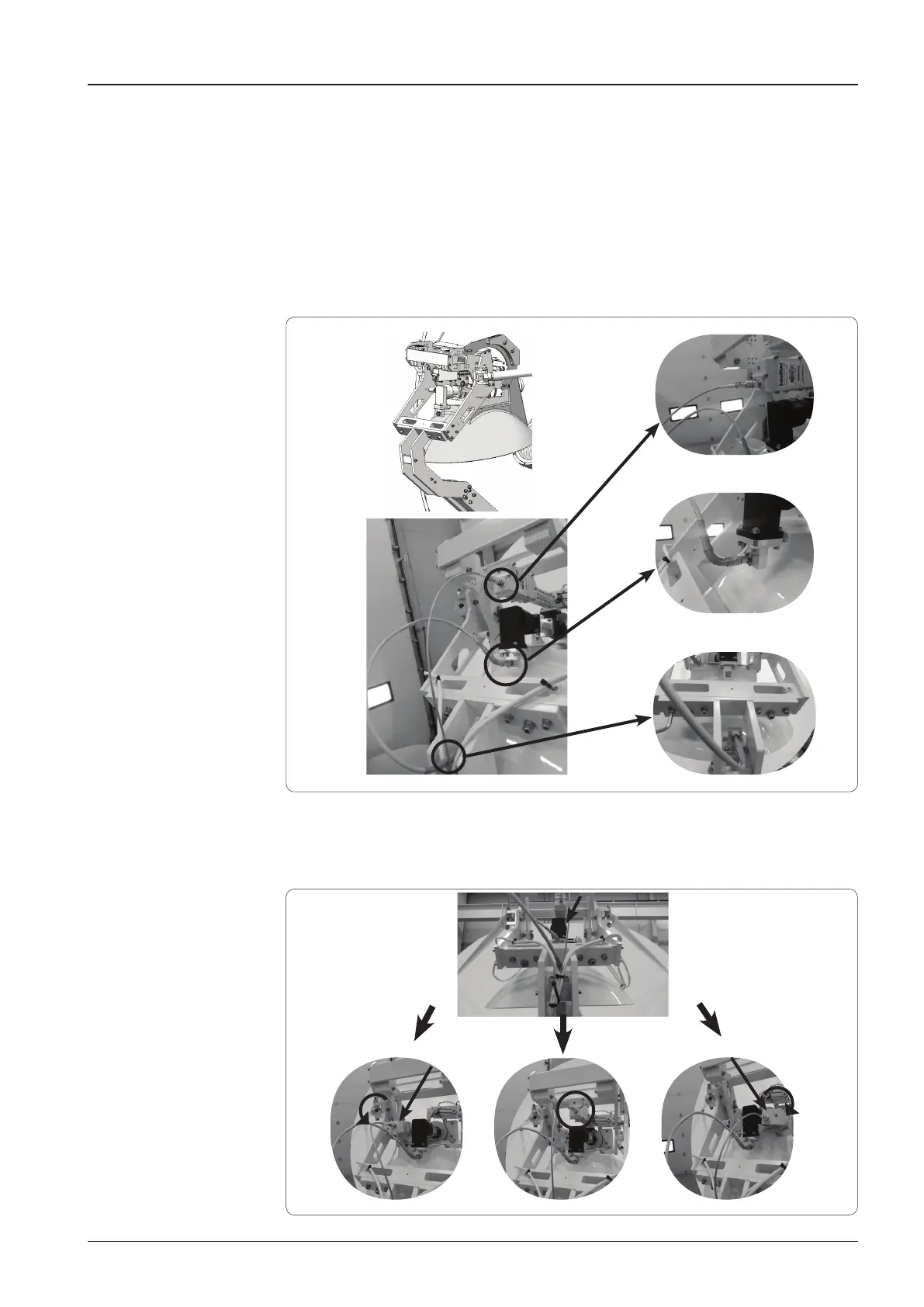

Figure 46. Ku Module Cable Connections
Figure 47. Check Skew
Check Skew Movement and Cable Connections
Turn the Skew ±90° left and right as shown in gure 47 and check if the cables are excessively
folded.
