Hook the two frame legs using the lifting strap as shown in
j
, and tie the strap as shown in
k
in
gure 61. Once secured and lightly tensioned using a crane, check to be sure the straps match
the vertical connection lines of the Radome panels as shown in .

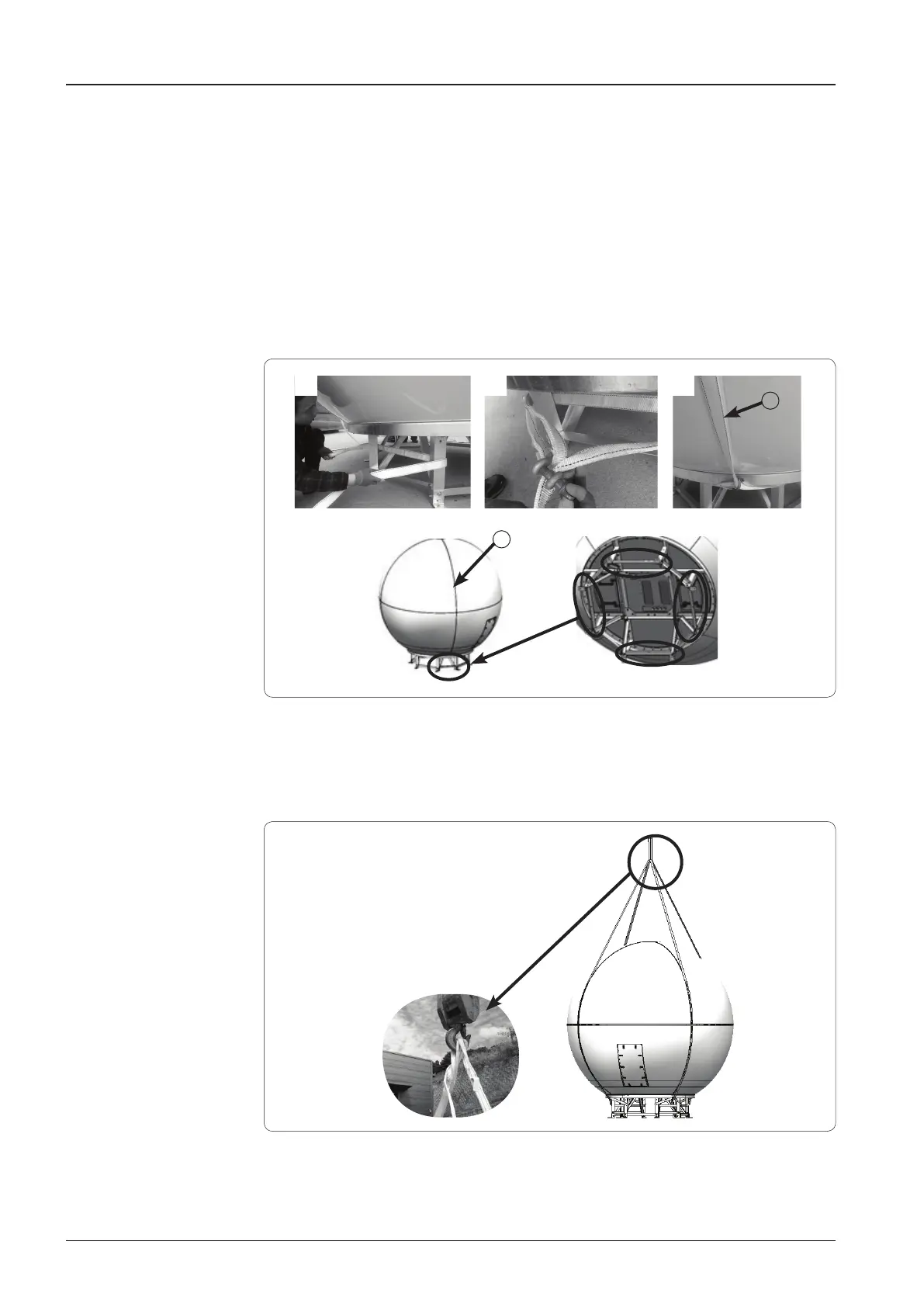

Figure 61. Hook and Tie Lifting Strap
Figure 62. Lifting up the Radome using the Crane Hook
Radome Mounting
Lift up the Radome hanging all four straps on a crane hook as shown in gure 62. Straighten out
the lifting straps as shown below prior to lifting the entire load of the antenna.
j k l
l
a
a
