ANTENNA INSTALLATION
After placing the antenna on the ship’s mast, x the antenna frame to the mast using M12 x 65L
Hex Wrench Bolts (8 times).
Remove the lifting straps after xing the antenna frame to the ship’s mast as shown in gure 64.
The removing procedures for the lifting straps are performed in reverse order of assembling.

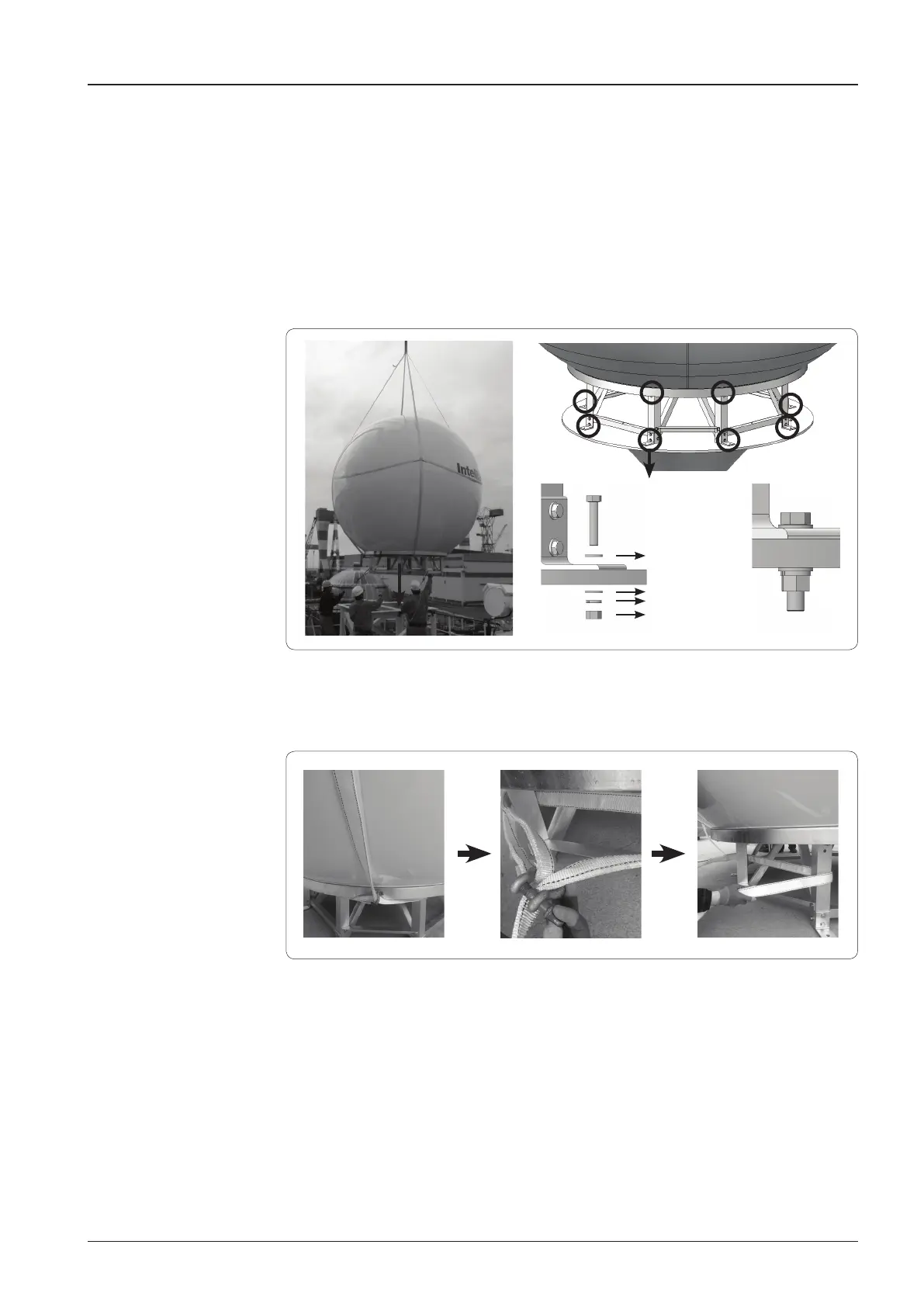

Figure 63. Fix the Antenna to the Mast
Figure 64. Remove the Lifting Strap
M8 x 65L Hex Wrehcn Bolt
M8 Flat washer
M8 Flat washer
M8 Spring washer
M8 Nut
