Eclipse Additional Information Page 96

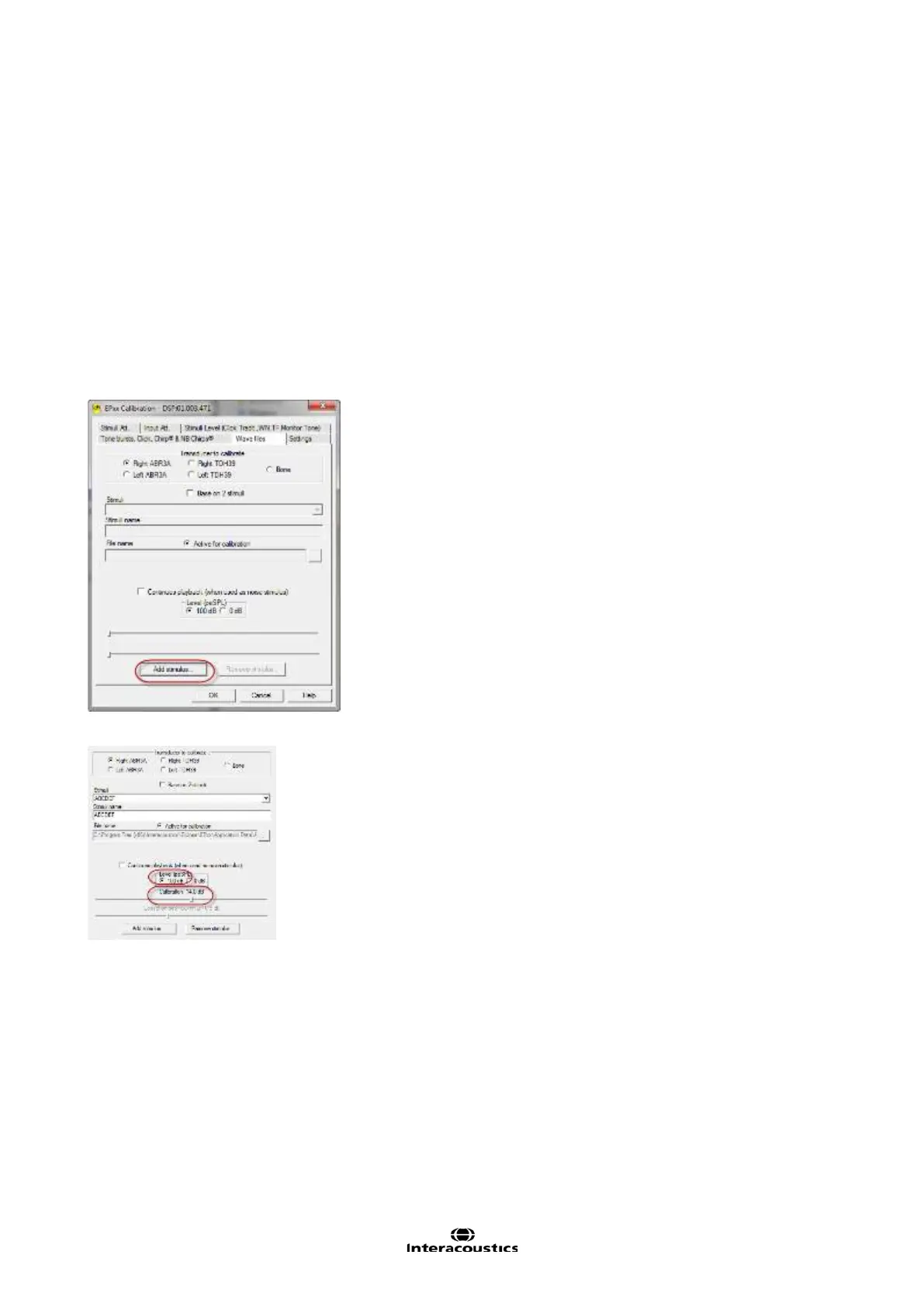

4.11 How to import WAV files for stimuli
Open the calibration software and add the WAV files for calibrate the stimuli to expected loudness.
More detailed information about calibration of WAV files can be found in the Eclipse Service Manual. Please
contact your distributor if required.
1. Add the stimuli e.g. ABCDEF (you can create your own experimental stimuli).
Note The WAV files format must be 16bit using a sampling rate of 30kHz in order to be used under the EPx5
software. The maximum length of the WAV stimuli is 1.09227 sec.
You can up-sample/downsample a current WAV file, using e.g. Matlab, Audacity, CoolEdit or similar Audio
software.
Click on the button Add stimuli and choose the file to add e.g. ABCDEF.
2. Perform the calibration – select 100dB and use the slider to adjust the calibration.
3. If needed, perform the peSPL-nHL correction select 0dB and use the slider to adjust the correction.
