Eclipse Additional Information Page 63

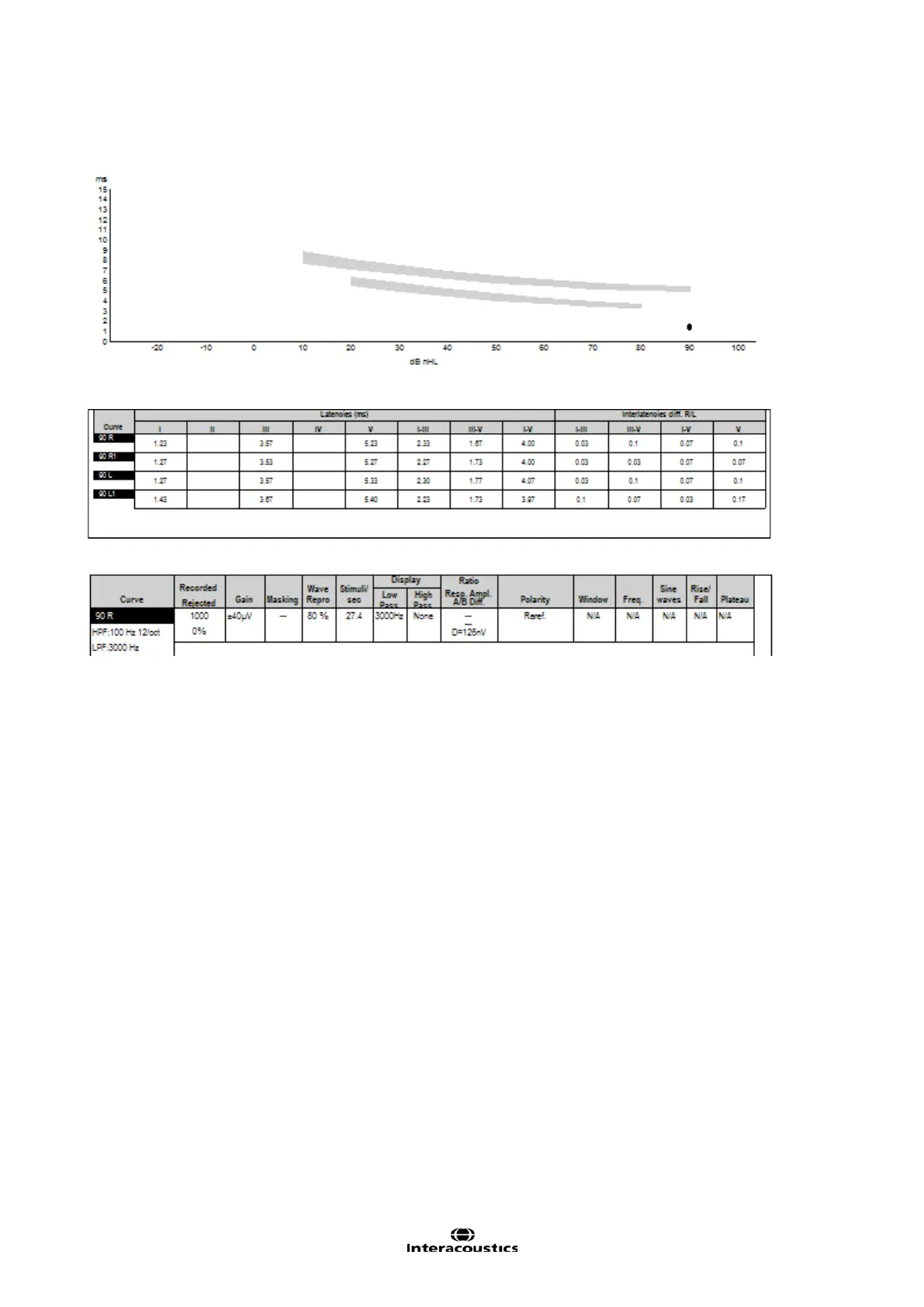

Elements | Add Latency Curve shows the latency curve information, similar to what is shown in the latency
tab.
Elements | Add Latency Tables provides information about the latencies and inter-latencies.
Elements | Add Condition Tables shows the conditions of the measurement.
Elements | Remove will remove an added element click remove to activate the function and then click on
the element you want to remove.
Page | Add to add a page
Page | Remove to remove a page
The arrows in the toolbar allow you to move to the next or previous page. After adding an element, the size
and display of each element can be modified.
Note it can be a good idea to add curves when setting up a new default print wizard from the Auto Protocols.
Showing the correct number of graphs and marked peaks, latencies and etc., will make it easier to modify
your default print wizard for that particular protocol.
To Next Page
