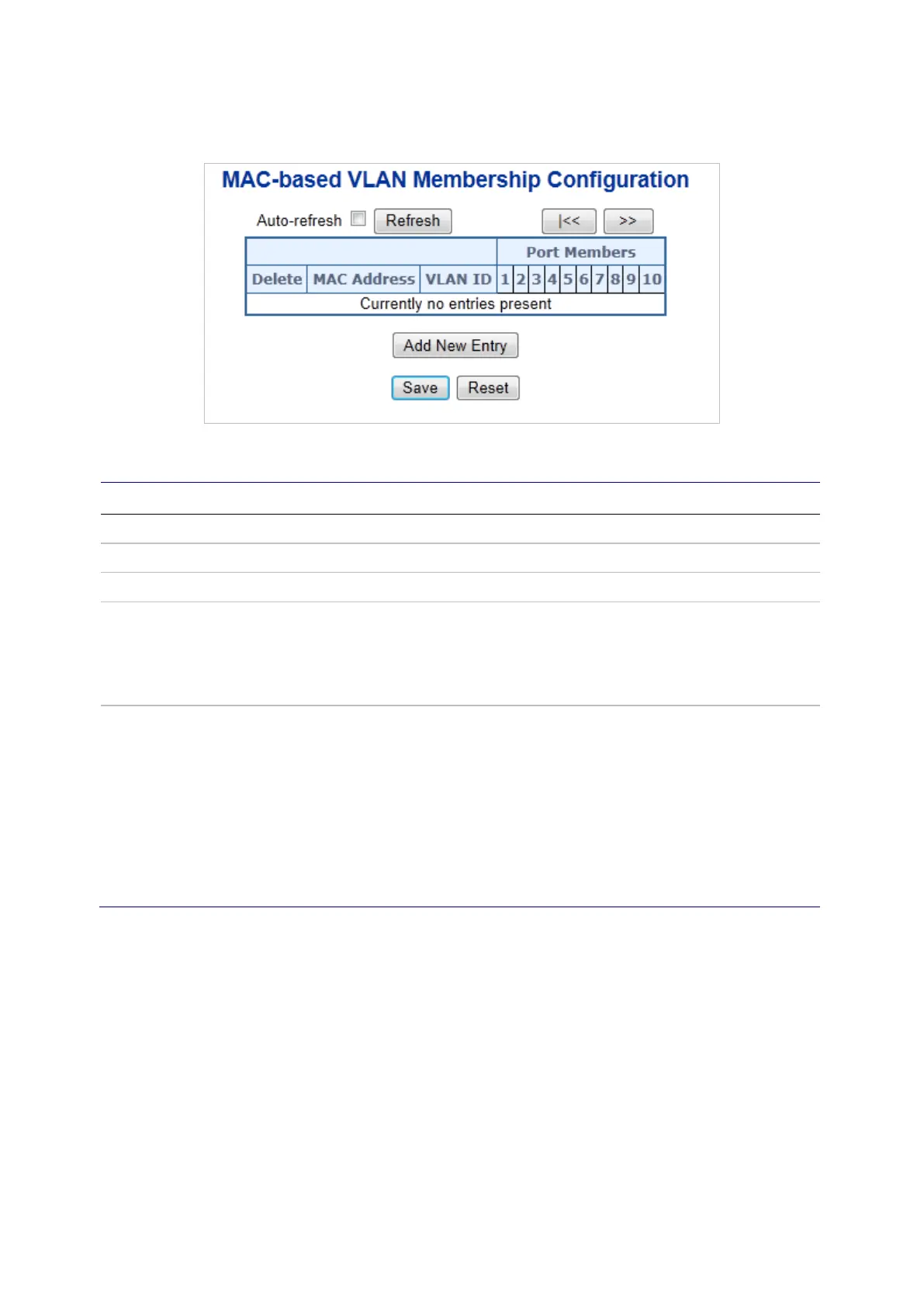

VLAN entries and assigning the entries to different ports. This page shows only static
entries.
The page includes the following fields:
Object Description
Delete To delete a MAC-based VLAN entry, select this box and click Save.
MAC Address Indicates the MAC address.
VLAN ID Indicates the VLAN ID.
Port Members A row of check boxes for each port appears for each MAC-based
VLAN entry. To include a port in a MAC-based VLAN, select the
check box. To remove or exclude the port from the MAC-based
VLAN, make sure the box is deselected. By default, no ports are
members, and all boxes are deselected.
Adding a New MAC-based
VLAN
Click Add New Entry to add a new MAC-based VLAN entry. An
empty row is added to the table, and the MAC-based VLAN entry can
be configured as needed. Any unicast MAC address can be
configured for the MAC-based VLAN entry. No broadcast or multicast
MAC addresses are allowed. Legal values for a VLAN ID are 1
through 4095.
The MAC-based VLAN entry is enabled when clicking Save. A MAC-
based VLAN without any port members will be deleted when clicking
Save. The Delete button can be used to undo the addition of new
MAC-based VLANs.
Buttons
• Click Add New Entry to add a new MAC-based VLAN entry
• Click Save to save changes.
• Click Reset to undo any changes made locally and revert to previously saved
values.
• Select the Auto-refresh check box to refresh the page automatically. Automatic
refresh occurs every three seconds.
• Click Refresh to refresh the page immediately.
