Chapter 4: Web configuration
176 NS3552-8P-2S-V2 User Manual

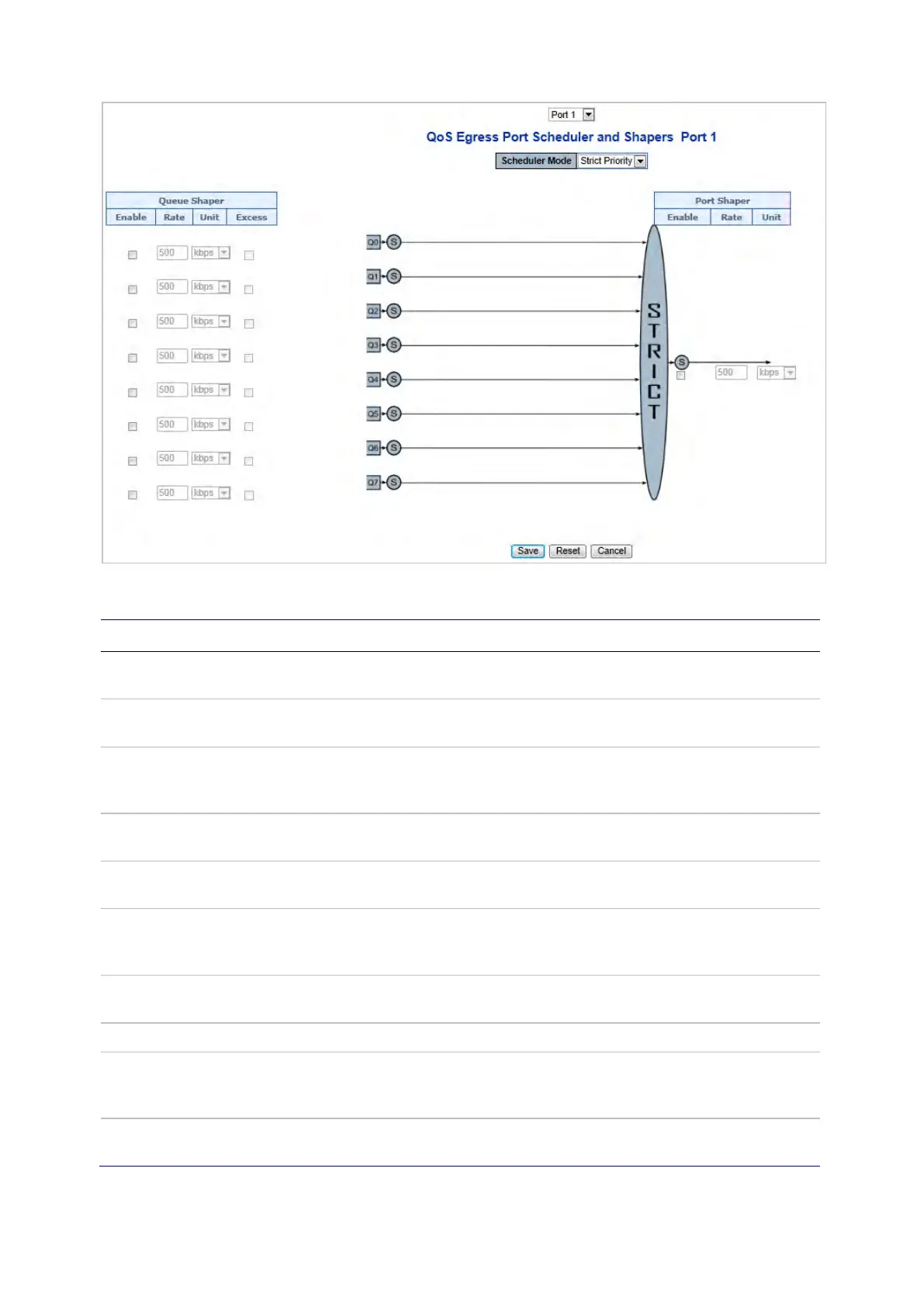

The page includes the following fields:
Object Description
Scheduler Mode Controls whether the scheduler mode is Strict Priority or Weighted on this
switch port.
Queue Shaper
Enable
Controls whether the queue shaper is enabled for this queue on this switch
port.
Queue Shaper Rate Controls the rate for the queue shaper. The default value is 500. This value
is restricted to 100-1000000 when the Unit is kbps, and it is restricted to 1-
13200 when the Unit is Mbps.
Queue Shaper Unit Controls the unit of measure for the queue shaper rate as kbps or Mbps.
The default value is kbps.
Queue Shaper
Excess
Controls whether the queue is allowed to use excess bandwidth.
Queue Scheduler
Weight
Controls the weight for this queue. The default value is 17. This value is
restricted to 1-100. This parameter only appears if Scheduler Mode is set to
Weighted.
Queue Scheduler
Percent
Shows the weight in percent for this queue. This parameter only appears if
Scheduler Mode is set to Weighted.
Port Shaper Enable Controls whether the port shaper is enabled for this switch port.
Port Shaper Rate Controls the rate for the port shaper. The default value is 500. This value is
restricted to 100-1000000 when the Unit is kbps, and it is restricted to 1-
13200 when the Unit is Mbps.
Port Shaper Unit Controls the unit of measure for the port shaper rate as kbps or Mbps. The
default value is kbps.
