Chapter 4: Web configuration
NS3552-8P-2S-V2 User Manual 179
The page includes the following fields:
Object Description
Tag Classification Controls the classification mode for tagged frames on this port.
Disabled: Use default QoS class and DP level for tagged frames.
Enabled: Use mapped versions of PCP and DEI for tagged frames.
(PCP, DEI) to (QoS
class, DP level)
Mapping
The Configuration All with available values will assign to whole items.
Controls the mapping of the classified (PCP, DEI) to (QoS class, DP level)
values when Tag Classification is set to Enabled.
Buttons
Click Save to save changes.
Click Reset to undo any changes made locally and revert to previously saved
values.
Click Cancel to return to the previous page.
Port scheduler

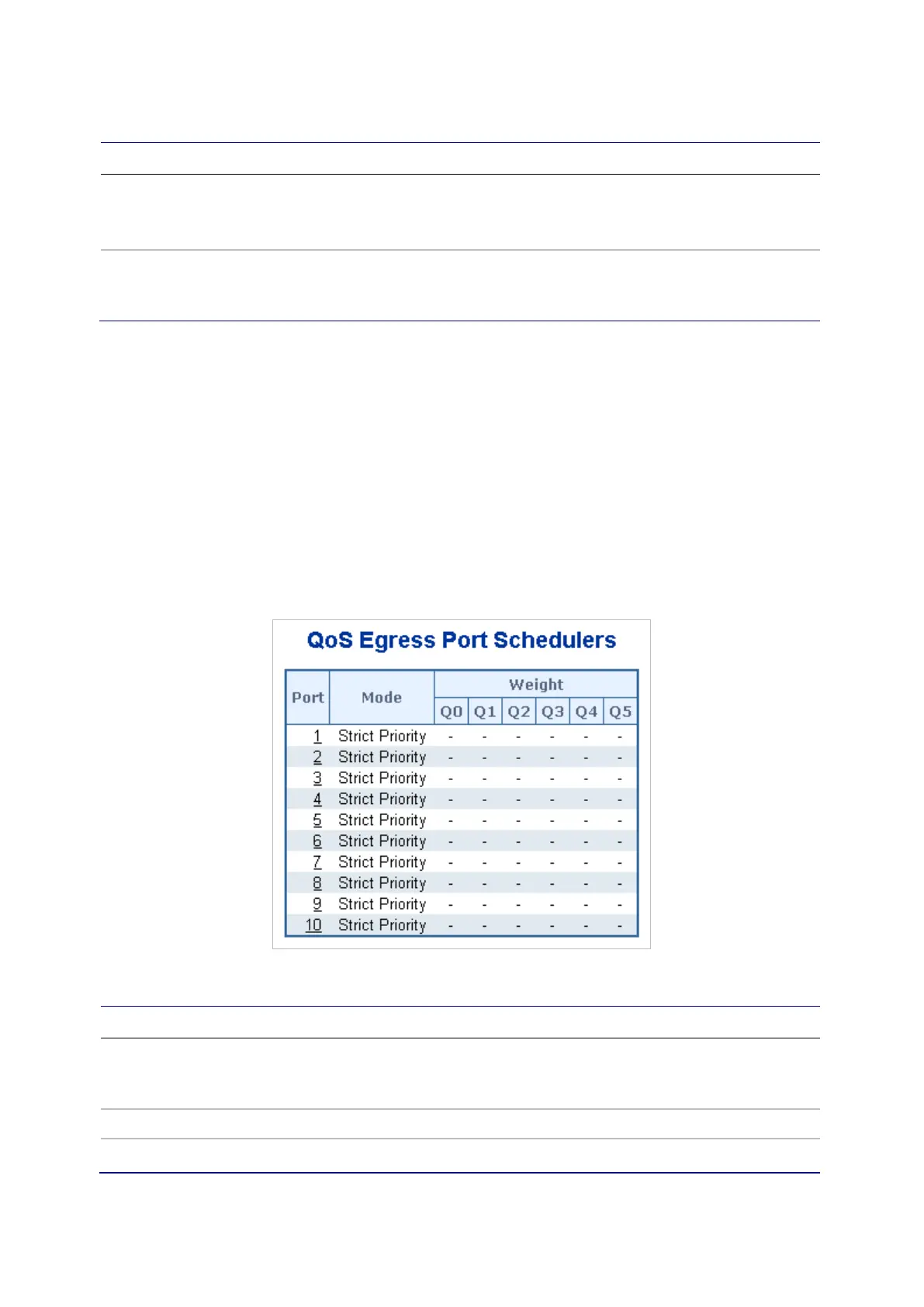

The QoS Egress Port Schedulers page provides an overview of the QoS egress port
schedulers for all switch ports.
The page includes the following fields:
Object Description
Port The logical port for the settings contained in the same row. Click on the port
number to configure the schedulers.
For more details, refer toUnderstanding QoSon page 172.
Mode Shows the scheduling mode for this port.
Q0 ~ Q5 Shows the weight for this queue and port.
