Chapter 4: Web configuration
NS3552-8P-2S-V2 User Manual 207

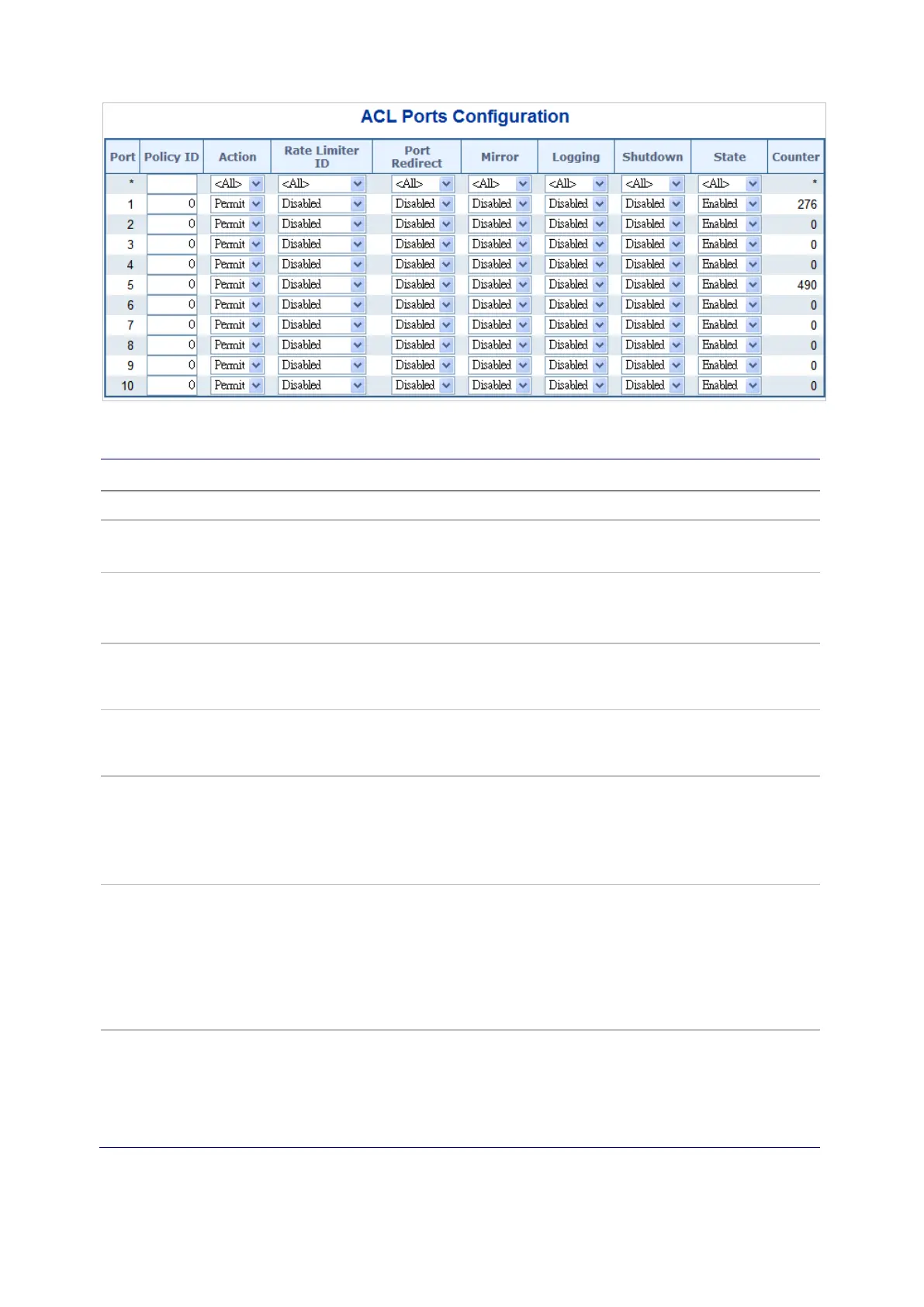

The page includes the following fields:
Object Description
Port The logical port for the settings contained in the same row.
Policy ID Select the policy to apply to this port. The allowed values are 0 through 255.
The default value is 0.
Action Select whether forwarding is permitted (Permit) or denied (Deny).
The default value is Permit. All means all ports will have one specific
setting.
Rate Limiter ID Select which rate limiter to apply on this port. Selections include Disabled
(default value) or the values 1 through 16. All means all ports will have one
specific setting.
Port Redirect Select which port frames are redirected on. Selections include Disabled
(default value)or a specific port number and it can't be set when action is
permitted. All means all ports will have one specific setting.
Mirror Specify the mirror operation of this port. The allowed values are:
Enabled: Frames received on the port are mirrored.
Disabled: Frames received on the port are not mirrored.
The default value is Disabled.
All means all ports will have one specific setting.
Logging Specify the logging operation of this port. Selections include:
Enabled: Frames received on the port are stored in the System Log.
Disabled: Frames received on the port are not logged.
The default value is Disabled.
Note: The System Log memory size and logging rate are limited.
All means all ports will have one specific setting.
Shutdown Specify the port shut down operation of this port. Selections include:
Enabled: If a frame is received on the port, the port will be disabled.
Disabled: Port shut down is disabled.
The default value is Disabled. All means all ports will have one specific
setting.
