Chapter 2: Installation

NS3552-8P-2S-V2 User Manual 25

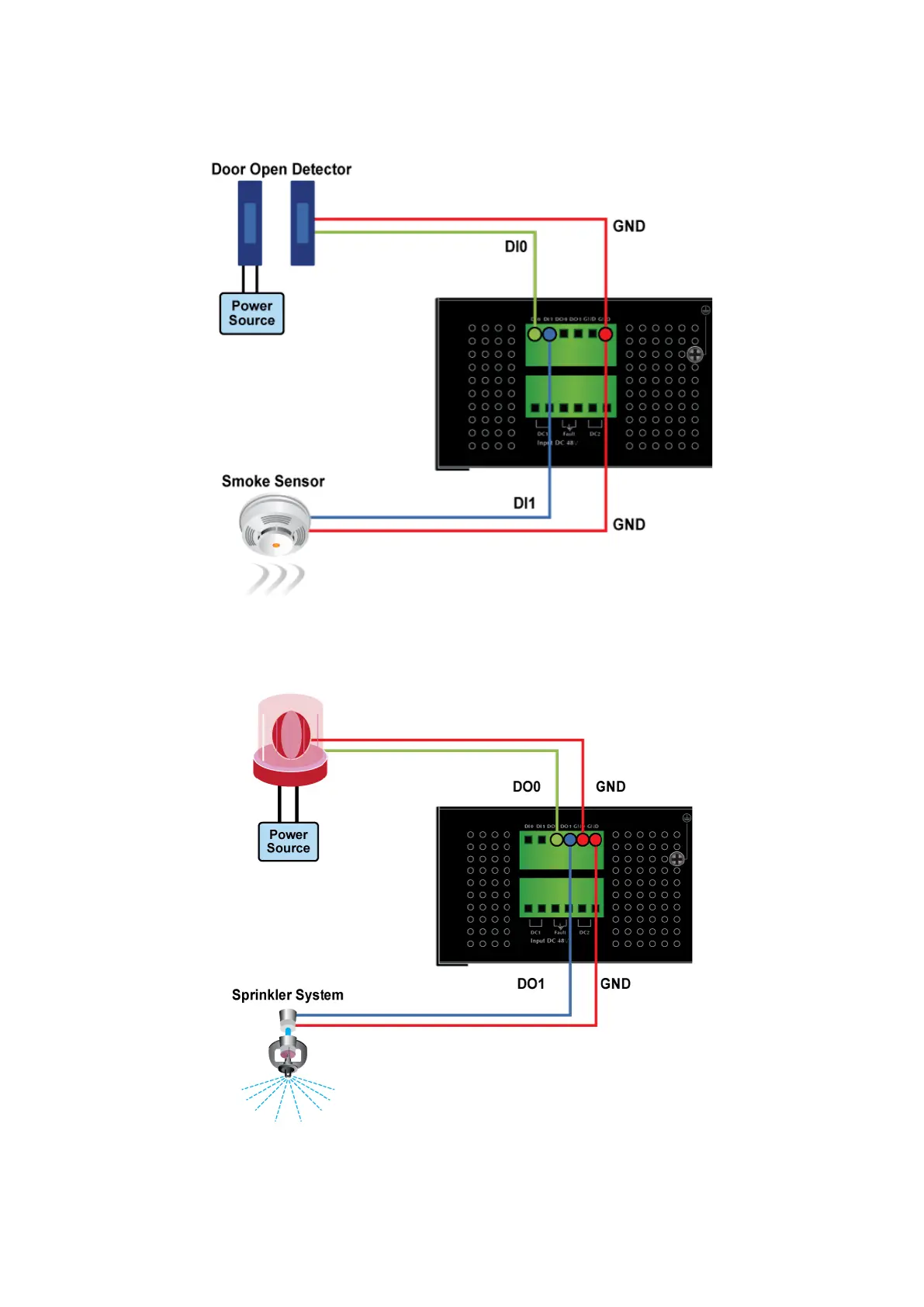

3. There are two Digital Input groups for you to monitor two different devices. The

following topology shows how to wire DI0 and DI1.

4. There are two Digital Output groups for you to sense port failure or power failure

and issue a high or low signal to the external device. The following topology shows

how to wire DO0 and DO1.
