Chapter 4: Web configuration
296 NS3552-8P-2S-V2 User Manual

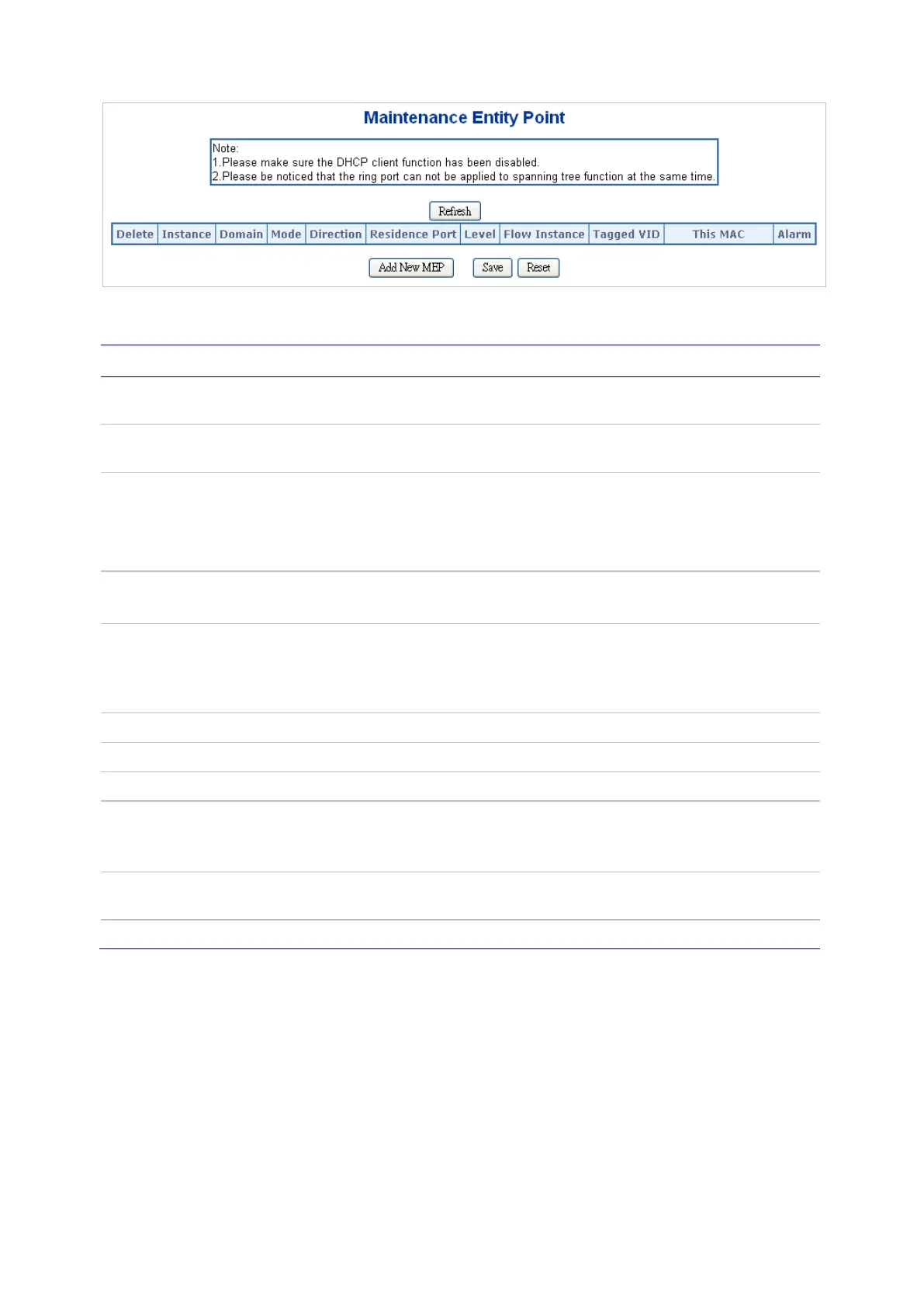

The page includes the following fields:
Object Description
Delete Select this check box to mark an MEP for deletion in the next save
operation.
Instance The ID of the MEP. Click on the ID of an MEP to enter the configuration
page.
Domain Port: This is an MEP in the Port Domain. 'Flow Instance' is a Port.
Esp: Future use
Evc: This is an MEP in the EVC Domain. 'Flow Instance' is an EVC.
Mpls: Future use
Mode MEP: This is a Maintenance Entity End Point.
MIP: This is a Maintenance Entity Intermediate Point.
Direction Ingress: This is an ingress (down) MEP monitoring ingress traffic on the
Residence Port.
Egress: This is an egress (up) MEP monitoring egress traffic on the
Residence Port.
Residence Port The port where MEP is monitoring. See Direction.
Level The MEG level of this MEP.
Flow Instance The MEP is related to this flow. See Domain.
Tagged VID Port MEP: An outer C/S-tag (depending on VLAN port type) is added with
this VID.
Entering '0' means no TAG added.
This MAC The MAC of this MEP can be used by other MEPs when unicast is selected
(Info only).
Alarm There is an active alarm on the MEP.
Buttons
• Click Add New MEP to add a new MEP entry.
• Click Refresh to refresh the page immediately.
• Click Save to save changes.
• Click Reset to undo any changes made locally and revert to previously saved
values.
