Interlogix TruVision 6 Series User Manual

30 Installation Guide

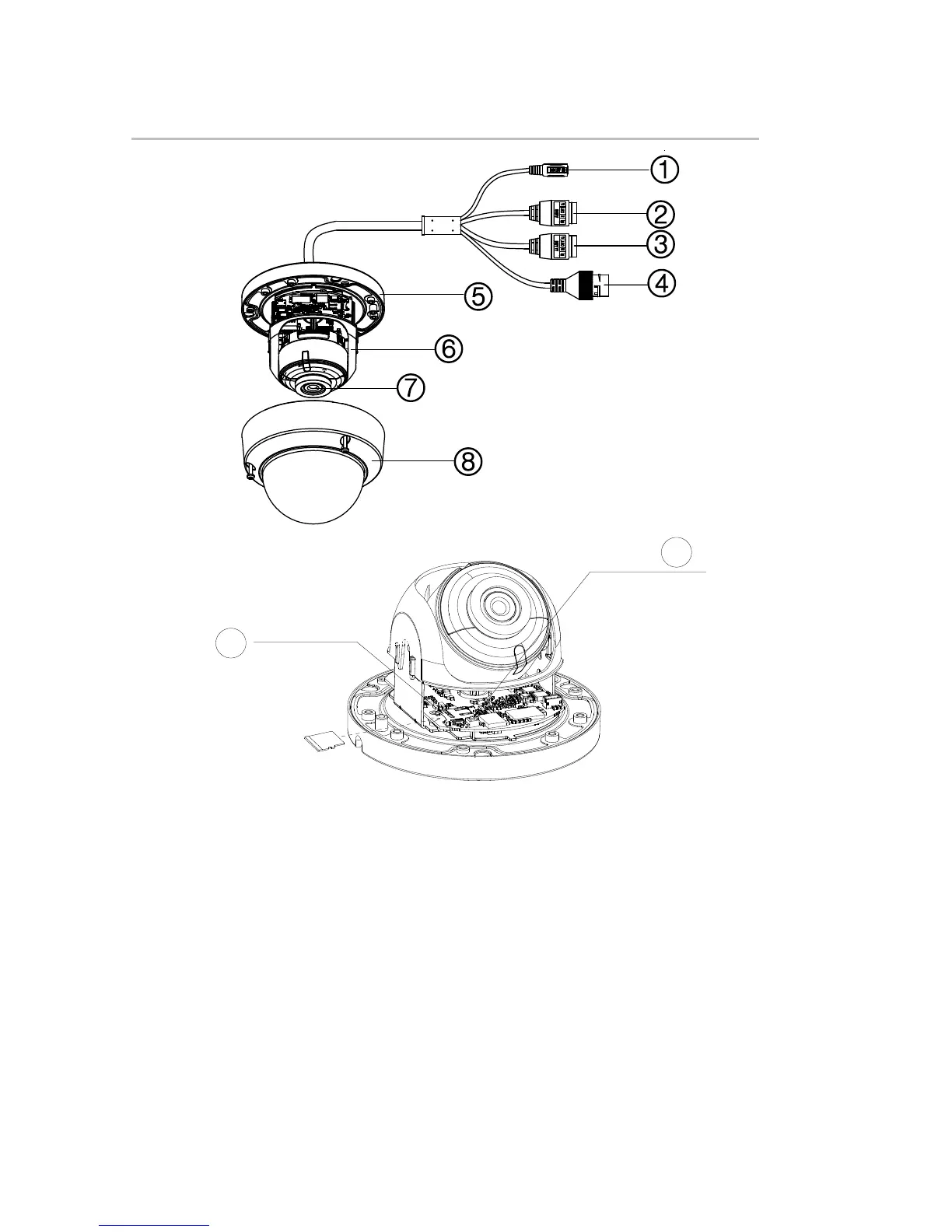

Figure 5: IP fixed lens dome camera
9
10
1. 12 VDC power
2. Audio 1 input (line in/mic
in) / 1 output (line out)
3. Alarm 1 input/1 output (up
to 12 VDC, 30 mA)
4. Ethernet RJ45 PoE port
5. Base
6. Dome liner
7. Lens
8. Housing cover
9. SD card slot
10. Reset button
Note: To reset the camera to default settings, press and hold
the RESET button and power on the camera. After the camera
