Chapter 1 — Replacing Parts
CV30 Fixed Mount Computer Service Manual 3
To replace the top cover
4 Completely separate the top cover from the CV30.
1 Disconnect the CV30 from power.
2 Remove the six 4-40 x 3/8 inch Phillips screws from the radome (top cover)
and lift it away from the CV30.
3 Disconnect the antenna cable from the Remote Antenna connector on
the radome board assembly PCB.
Do not pull on the antenna wire because the cable may break. If you
do not have an antenna cable remover, insert your fingernail under
the antenna cable socket and lift gently.
Vorsicht: Nicht am Antennenkabel ziehen, da das Kabel reißen
könnte. Falls kein Antennenkabel-Ausbauwerkzeug verfügbar ist,
einen Fingernagel unter den Sockel des Antennenkabels stecken und
sacht anheben.

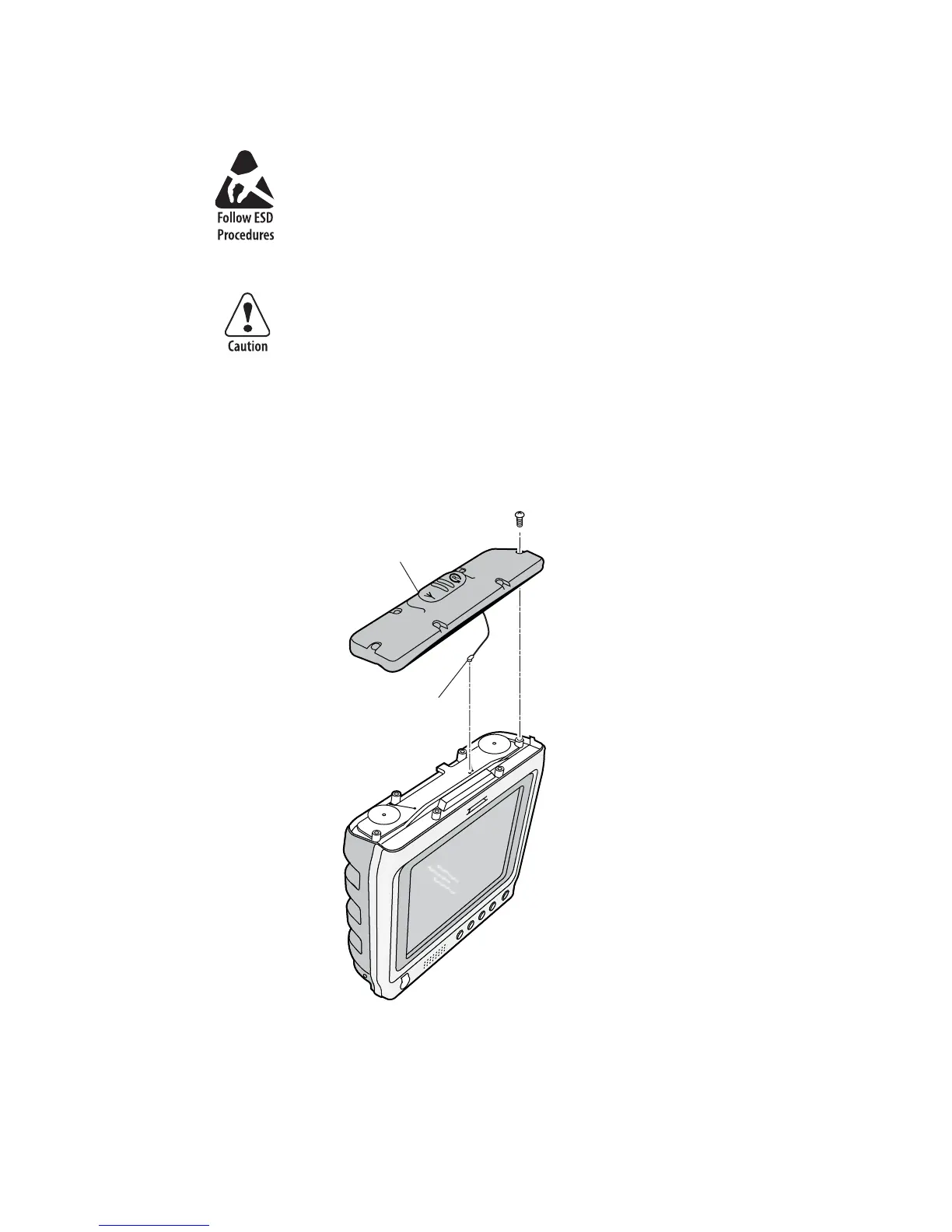

802.11
Screw
(6 places)
Top
cover
Antenna
cable
