Chapter 1 — Replacing Parts
18 CV30 Fixed Mount Computer Service Manual

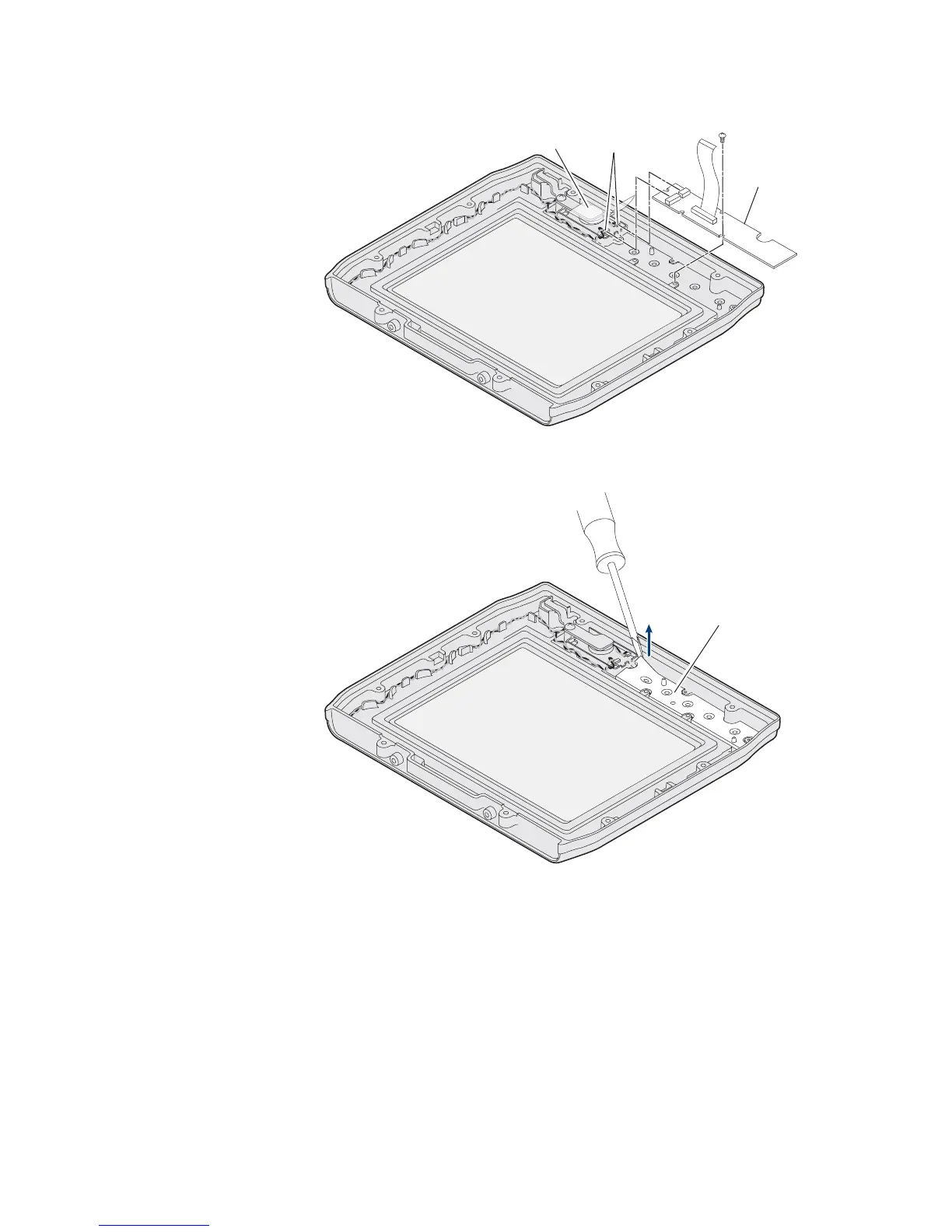

7 If you need to replace the CV30 keypad, use the flathead screwdriver to
pry the keypad away from the front cover until you can peel it off.
8 Peel the backing off the new keypad assembly and firmly press it into
place.
9 Insert the new keypad PCB and secure it with five M2x4 pan-head
Phillips screws.
10 Reconnect the two cables to the keypad PCB.
11 Reconnect the keypad flex connector to the touch panel assembly.
12 Replace the front cover and secure it with the six 4-40 x 5/8 inch screws
and the two 4-40 x 3/8 inch screws removed previously and tighten to
.73 Nm (6.5 lb-in).
Keypad PCB
Kapton
tape
Keypad
PCB cables
Screw (5 places)
Keypad
assembly
