Chapter 1 — Getting Started
2
IF30 Fixed Reader User’s Manual
Over

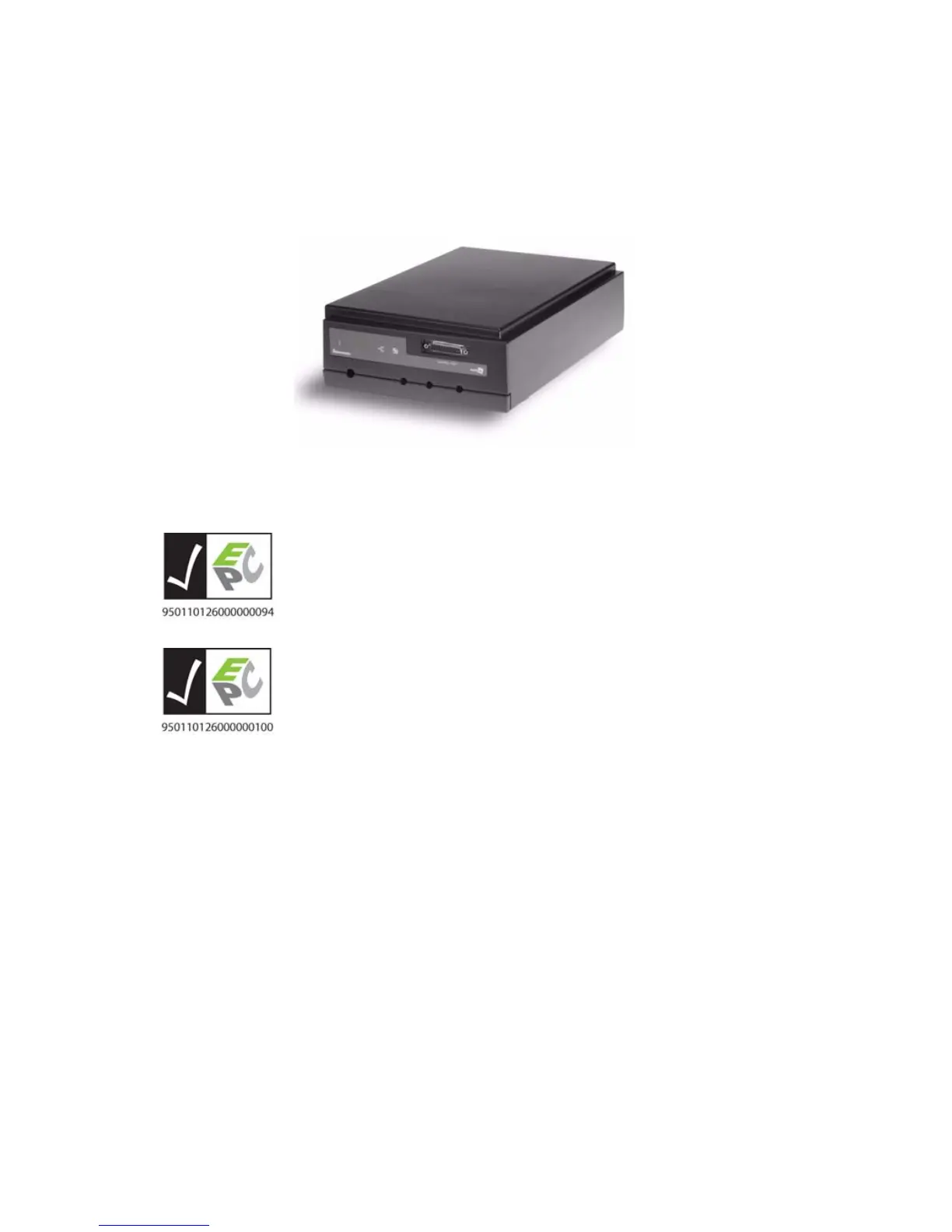

view of the IF30
The IF30 F
ixe
d Reader is an RFI
D reader that provides
connectivity between tag data and an enterprise system.
The IF30 Fix
e
d Reader
The IF30 F
ixed Reader uses an
EPCglobal Gen 2-certified IM5
M
odule (86x MHz RFID frequency band).
The IF30 F
ixed Reader uses an
EPCglobal Gen 2-certified IM5
M
odule (915 MHz RFID frequency band).
11
13
Table of Contents
Default Chapter
3
Table of Contents
3
Before You Begin
7
Safety Information
7
Global Services and Support
7
Warranty Information
7
Web Support
7
Telephone Support
8
Who Should Read this Manual
9
Related Documents
9
Patent Information
10
Getting Started
11
Overview of the IF30
12
Unpacking the IF30
13
What You Need
13
Learning about the IF30
14
Understanding the Front Panel Ports
14
Understanding the Leds
16
Learning about the Intermec Ready-To-Work Indicator
17
Understanding the Rear Panel Ports
18
How the IF30 Fits in Your Network
19
Configuring the IF30 (Setting the IP Address)
19
Using a Communications Program
20
Configuring the IF30 for an Ethernet Connection
21
Using the Web Browser Interface
24
Saving Configuration Changes
25
Installing the IF30
28
Choosing a Mounting Location
28
Connecting the IF30 to Your Network
29
Setting the Date and Time
30
Using the IF30 Securely
31
Configuring Network Settings
33
Configuration Settings for Your Network
34
Configuring Ethernet Settings
34
Enabling Ipv6
37
Configuring Network Services
38
Configuring SNTP Client Settings
40
Configuring Security
40
Controlling Access to IF30 Menus
41
Setting up Logins
43
Configuring the IF30 to Use a Password Server
44
Changing the Default Login
45
About Certificates
47
Viewing Certificates
47
Installing and Uninstalling Certificates
48
Rejecting Expired Certificates
49
Creating and Using RFID Applications
51
RFID Applications and the IF30
52
Creating Applications for the IF30
52
Configuring RFID Settings
52
About RFID Module Settings
54
Supported Tag Type
54
Supported Tag Type (Gen 2)
54
Dense Reader Mode
54
LBT Channel
54
LBT Scan Enable
55
Field Separator
55
ID Report
55
No Tag Report
55
Timeout Configuration Mode
55
ID Tries
56
Antenna Tries
56
Read Tries
56
Write Tries
56
Initialization Tries
56
Lock Tries
57
Select Tries
57
Unselect Tries
57
Initial Queue
57
Session
57
Field Strength
57
Enable Antenna Port N
58
Configuring the Data Collection Engine
58
Viewing the DCE Events Log
60
Viewing DCE Statistics
61
Managing, Upgrading, and Troubleshooting the IF30
63
Managing the IF30
64
Using Intermec Smartsystems Foundation
64
Configuring the IF30 with Intermec Settings
64
Using Wavelink Avalanche
65
Enabling Simple Network Management Protocol (SNMP)
67
Maintaining the IF30
70
Viewing Port Statistics
70
Viewing the Events Log
71
Viewing the about this IF30 RFID Reader Screen
72
Viewing the IF30 Configuration Summary
73
Restoring the IF30 to the Default Configuration
75
Upgrading Firmware
76
Troubleshooting the IF30
78
Problems While Working with RFID
78
Problems with Network Connectivity
79
Calling Intermec Product Support
80
Using the IF30 GPIO Interfaces
81
About the GPIO Interfaces
82
Accessing the GPIO Interfaces
82
Using the Input Interfaces
83
IF30 Powered Input
83
Isolated Input Interface
84
Open Collector Interface
84
Using the Output Interfaces
85
Switching the High Side Using IF30 Power
86
Switching the Low Side Using IF30 Power
86
Switching the High Side Using External Power
87
Driving a DC Relay to Control an AC Load
88
Using the Power Interface
88
Specifications
89
IF30 Specifications
90
RFID Specifications
91
Port Pin Assignments
92
Control Port
92
Serial Port
93
Ethernet Port
93
Index
95
