Understanding the Rear Panel Ports
The ports on the rear panel are used for connecting the IF30 to
RFID antennas.

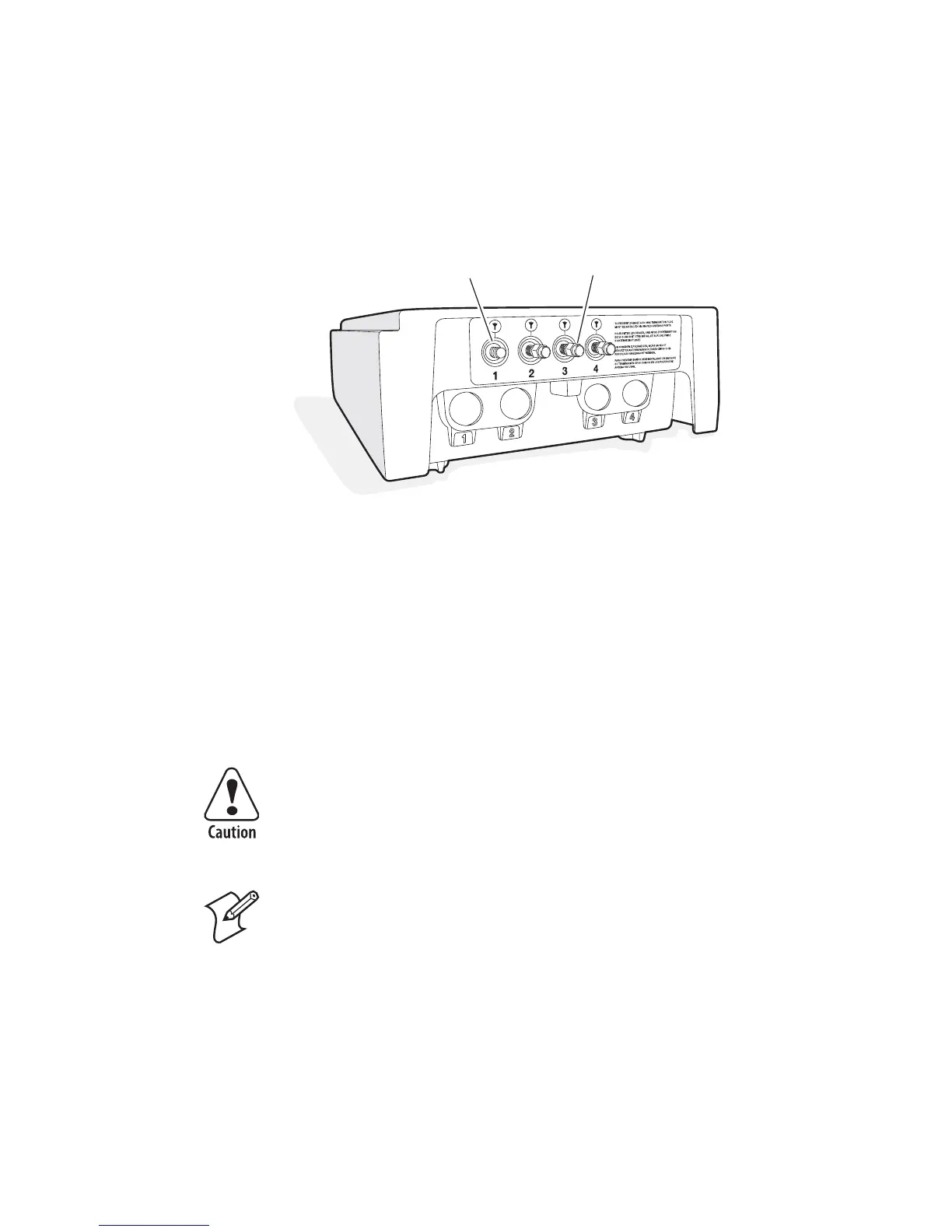

IF30 Rear Panel Ports: This illustration shows the ports on the rear panel. The
IF30 ships with antenna terminators mounted on RFID antenna ports 2, 3, and
4.
The IF30 RFID antenna ports use these connectors:
• 865-869 MHz: SMA
• 915 MHz: Reverse SMA
Make sure you have appropriate antennas and cables for your
IF30. For help, contact your Intermec sales representative.
RFID antenna
ports (4 places)
Terminators
Government regulatory agencies require that this RFID reader
only use approved antennas. Therefore, this reader uses a
custom antenna connector. Do not use antennas not approved
for use with this reader.
Note: The IF30 ships with antenna terminators installed on
RFID antenna ports 2, 3, and 4. Do not remove the terminator
from any port unless you are installing an antenna or antenna
cable on that port.
