Chapter 3 — Troubleshooting and Maintaining the SR30
24 SR30 Handheld Scanner User’s Guide

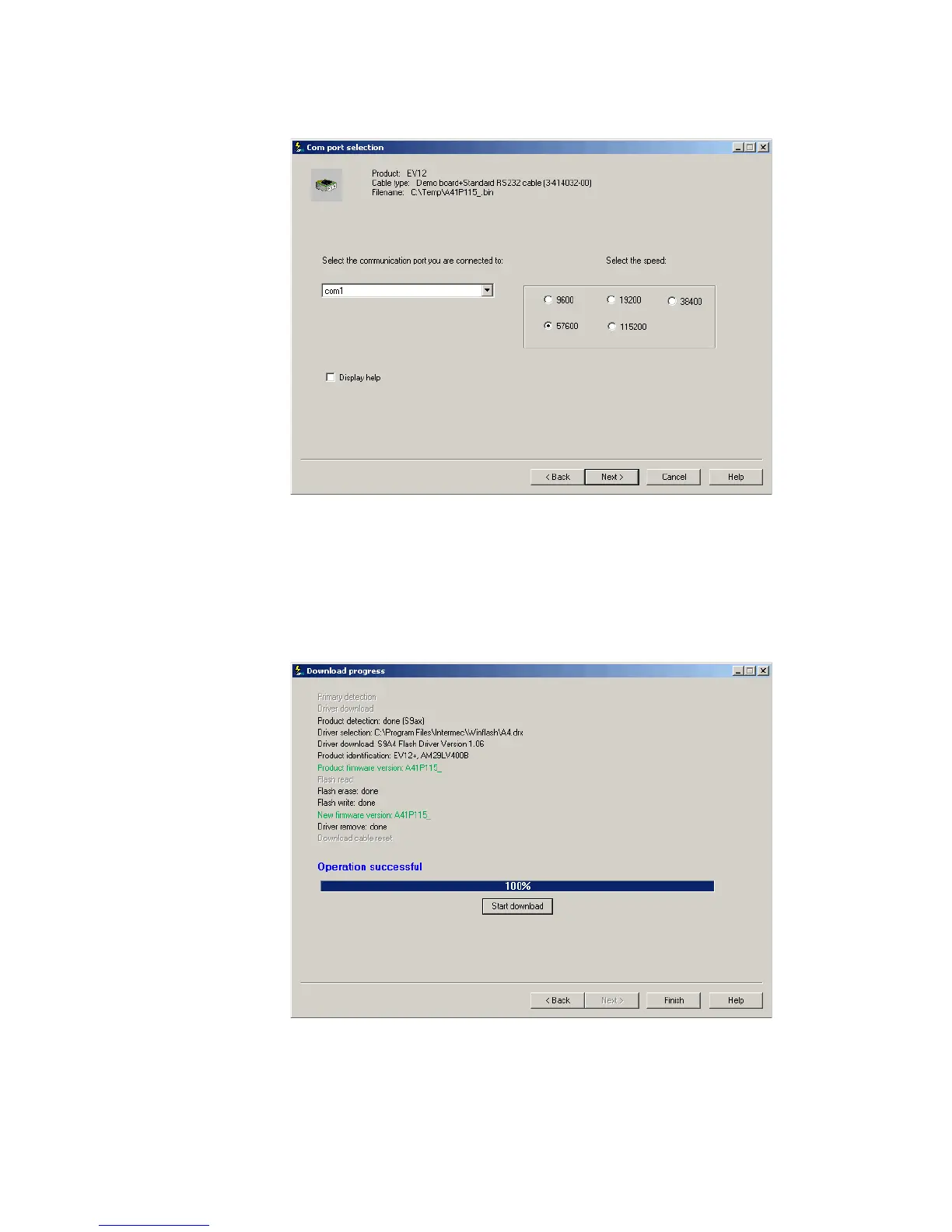

13 Click Next. The Com port selection window appears.
14 Select the COM port the SR30 is connected to, select a baud
rate, and deselect the Display help check box.
15 Click Next. The Download progress window appears.
16 Click Start download. When the firmware download is
complete, the “Operation successful” message appears.
17 Click Finish. You have successfully upgraded your SR30
firmware.

Intermec SR30 Specifications

General

Type	Handheld bar code reader
Scanner type	-
Optical sensor resolution	- pixels
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	Code 128, Code 39, Code 93, EAN 2, EAN 5, EAN-13, EAN-8, MSI, Plessey, Telepen, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Codablock, Data Matrix
Input voltage	5 V
Power source type	USB
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Product color	Blue, Grey
International Protection (IP) code	IP30

Weight and Dimensions

Width	72.5 mm
Weight	190 g
