Chapter 1 — Introducing the SR61B Cordless Scanner
SR61B Cordless Scanner User’s Guide 11
red aiming beam just to the right of the center of the bar code
label.

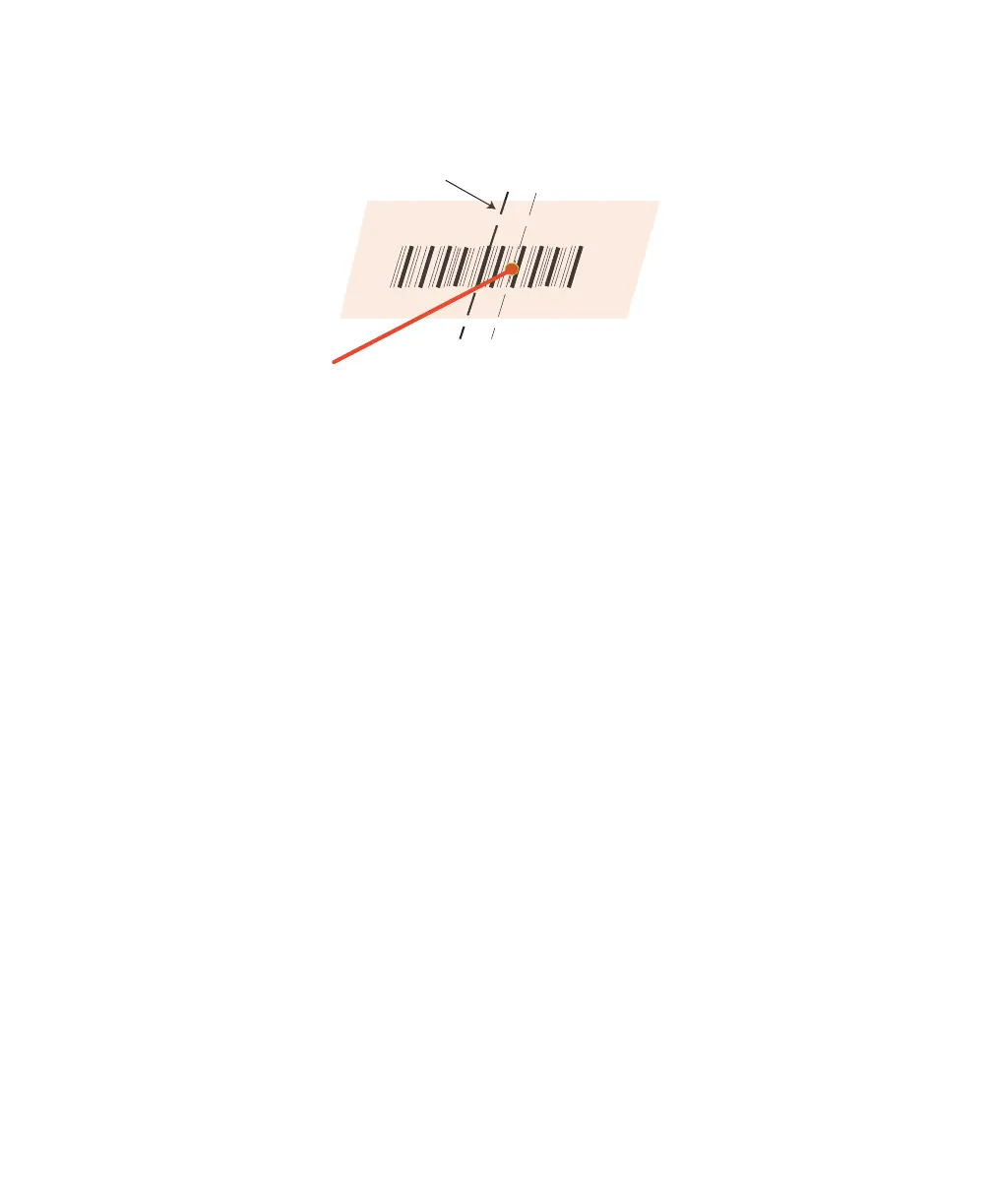

SR61BXR Aiming Beam
3 When the SR61B successfully reads a bar code label, the SR61B
beeps one time, the status light briefly turns green, and the
scanner lighting turns off. If Vibrate Alert is enabled, the SR61B
briefly vibrates.
4 Release the trigger.
bar code
center axis
