Invacare
®
Electra Service Manual
Page 16 As at:15.04.02
9.1.3 Components involved
A Panelling (chapter: 9.3 page: 19
9.1.4 Reassembly information
Before disassembling the seat unit, mark the height of the seat attachment (3.4), the backrest and the
armrest width settings.

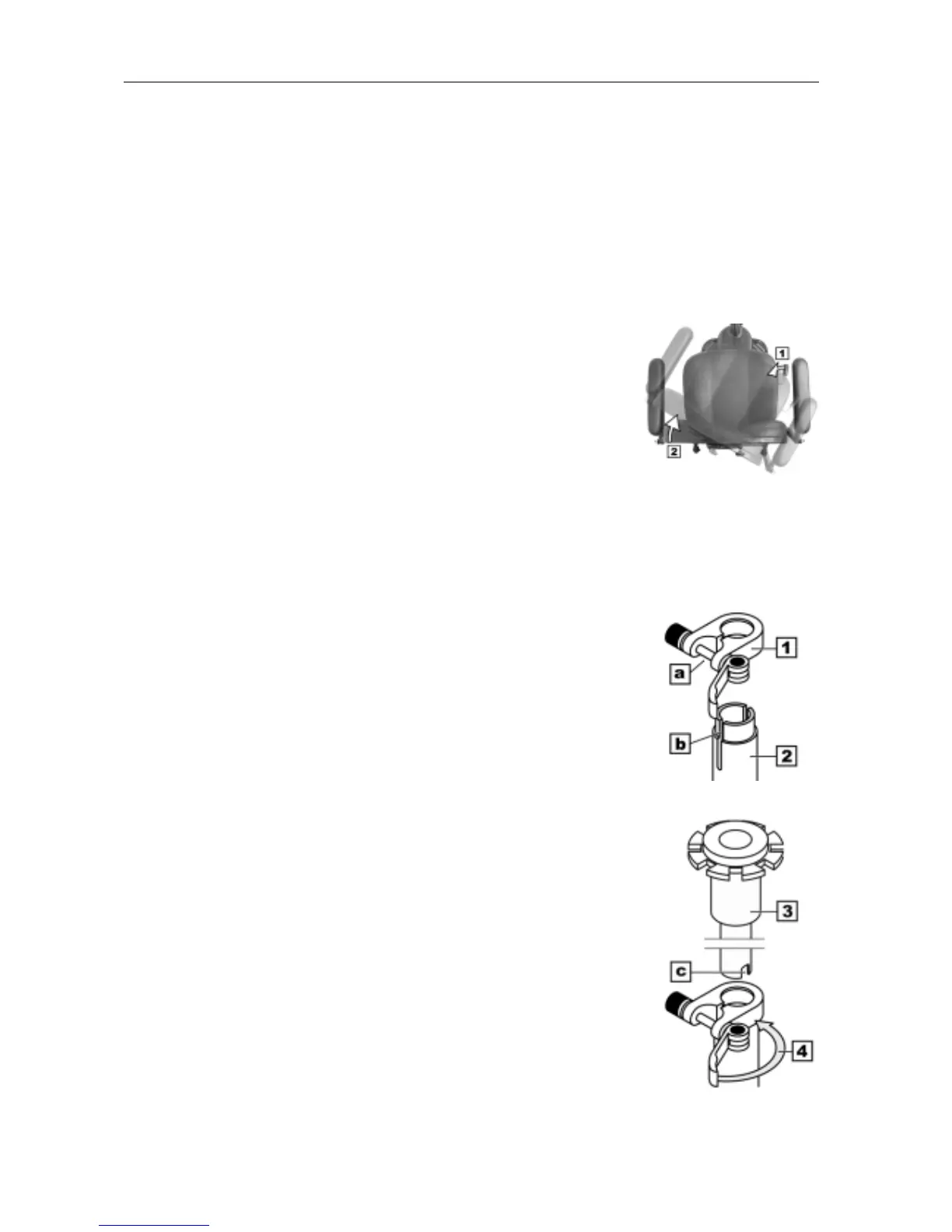

9.1.5 Reassembly information for "removing seat unit"“
• Pull release lever(1).
• Turn the seat unit by about ¼ revolution to the right or left (2) and remove
the seat unit upwards out of the seat attachment.
Removing seat unit (top
view)
9.1.6 Reassembly information for "removing seat tube"
• Loosen the clamp lever and remove seat tube.
9.1.7 Reassembly information for "replacing seat unit"
• Place the clamp (1) on the seat tube (2).
The clamp opening (a) must be in alignment with the slot in the seat tube
(b).
Making the clamp fast
• Push the seat tube (3) into the attachment tube and turn until the guide
groove (c) noticeably locates into the seat tube anti-turn device
• Tighten clamp (4).
Pushing in seat tube
