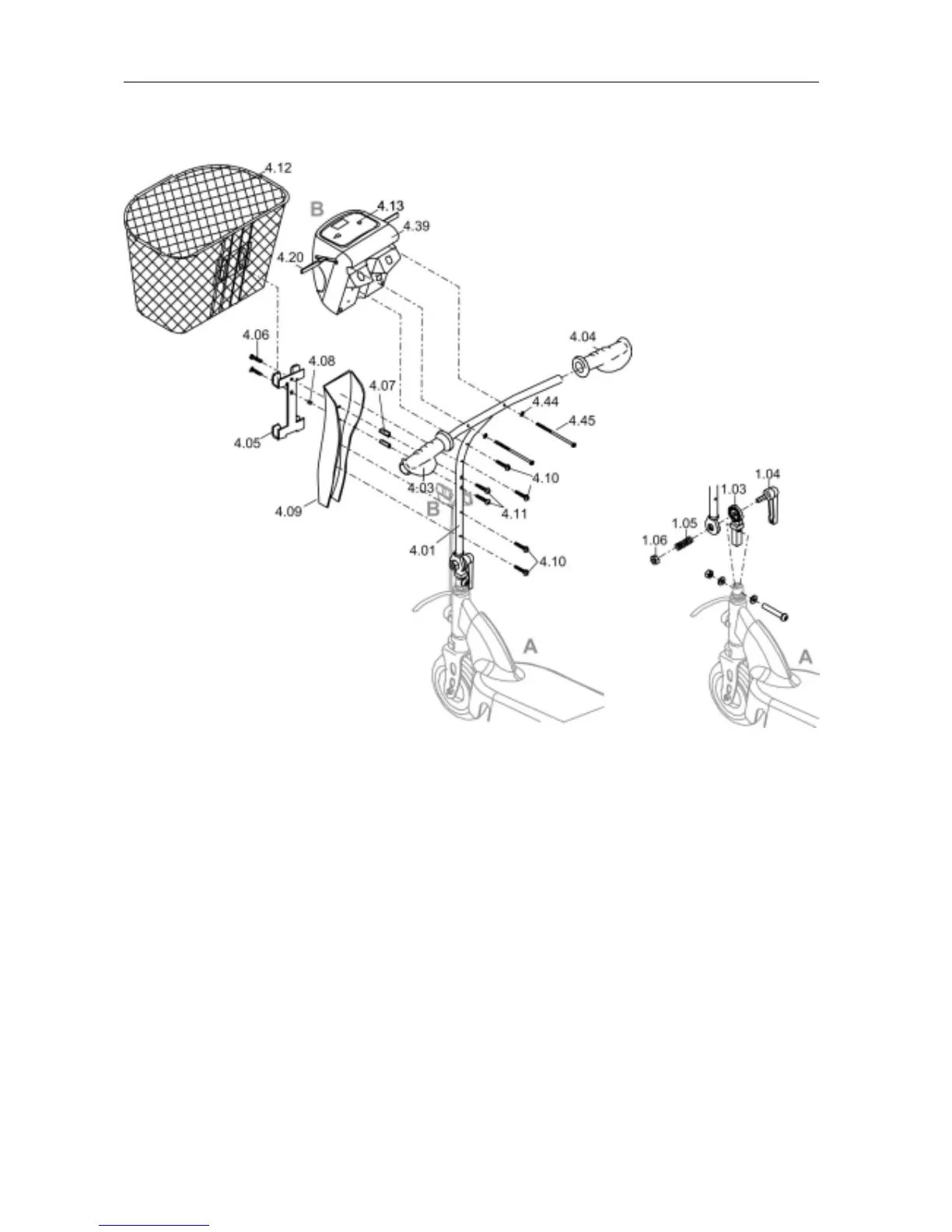

9.2 Steering column
Detail: connection to
steering fork
9.2.1 Components:
Item Qty. Description Item Qty. Description
4.01
4.03
4.04
4.05
4.06
4.07
4.08
4.09
4.10
4.11
4.12
1
1
1
1
2
2
1
1
4
2
1
Handlebar S533
Handle, LH
Handle, RH
Basket holder
Bolt, M6 X 10
Bush 6 x 20 x 1
Spacer
Steering cover, front
Bolt, M4 X 30
Bolt, M6 X 35
Basket
4.13
4.20
4.39
4.44
4.45
1.03
1.04
1.05
1.06
1
1
1
2
2
1
1
1
1
Steering cover, top
Drive lever
Steering cover, bottom
Washer, M4
Bolt, M4 X 95
Steering column attachment
Clamping lever
Pressure spring
Nut, M10 X 1,5, self-locking
9.2.2 Components involved:
A Chassis (chapter: 9.3 page: 19)
B Operating unit (chapter: 10.2 page: 28)
