Electra Service Manual
Page 22 As at:15.04.02

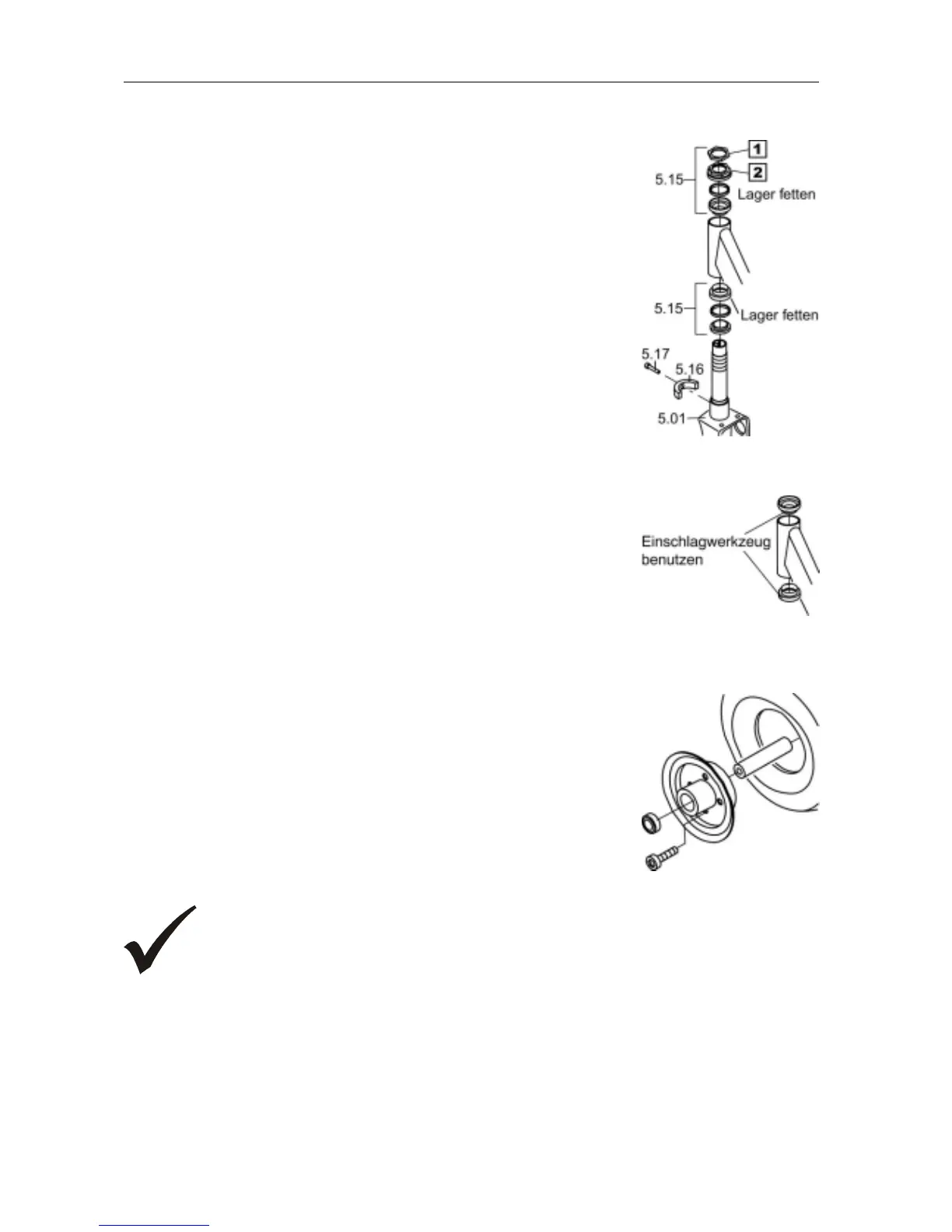

9.5.4 Reassembly sequence for "replacing steering head bearings /
steering fork
• Remove the steering column (chapter: 9.2.3 page: 18).
• Remove the steering fork and replace the steering head bearings.
Locknut (1, size 32 mm)
adjusting nut (2, size 32 mm)
Replacing the steering
head bearings
9.5.5 Reassembly information for "replacing steering head bearings"
• Always use a suitable striking tool for inserting the bearing shells
Inserting the bearing shells
9.5.6 Reassembly sequence for "replacing the wheel bearing"
• Remove the steering wheel
Hex bolts (size 13 mm) / nuts (size 13 mm).
• Split the wheel rim. Allen key bolt (size 4 mm).
• Remove the wheel bearing with suitable tools.
• Always use a suitable striking tool for inserting the wheel bearings.
Replacing the wheel
bearing
Note:
• Only tap the wheel bearing into the wheel rim so far that it is flush with the rim edge.
