Service Manual Invacare
®
Electra
As at: 15.04.02 Page 25
9.7 Drive wheels

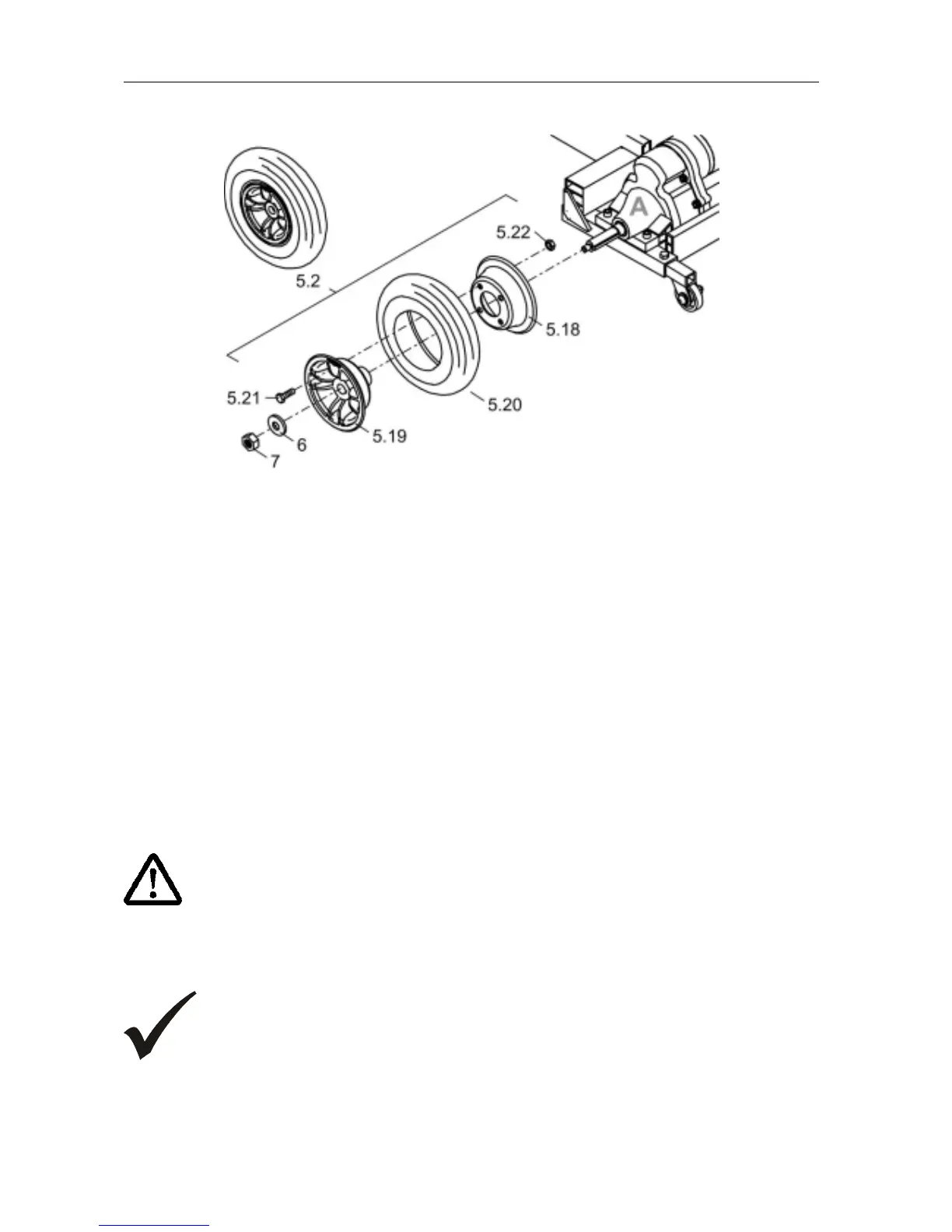

9.7.1 Components:
Item Qty. Description Item Qty. Description
5.2
5.18
5.19
5.20
5.21
1
1
1
1
4
Rear wheel unit
Wheel rim (B) 7"
Wheel rim rear wheel
Tyre 200 X 50, puncture-proof
Bolt, M8 X 15
5.22
6
7
4
1
1
Nut M8, self-locking
Nut M8, self-locking
Washer, M8
9.7.2 Components involved:
A Drive unit (chapter: 9.6 page: 23)
9.7.3 Reassembly information for "replacing drive wheels"
Raise the Scooter and place on a suitable support (such as wooden block).
The drive wheels must not be under load.
CAUTION:Danger of crushing!
Secure the raised Scooter against slipping and rolling away.
• Remove the drive wheel. - Self-locking nut (size 13 mm)
Note:
• Do not tap the drive wheels off the motor shaft with a hammer (causes damage to
aluminium wheel rim. Use a pulling tool!
