6 Layout of components and displays and controls

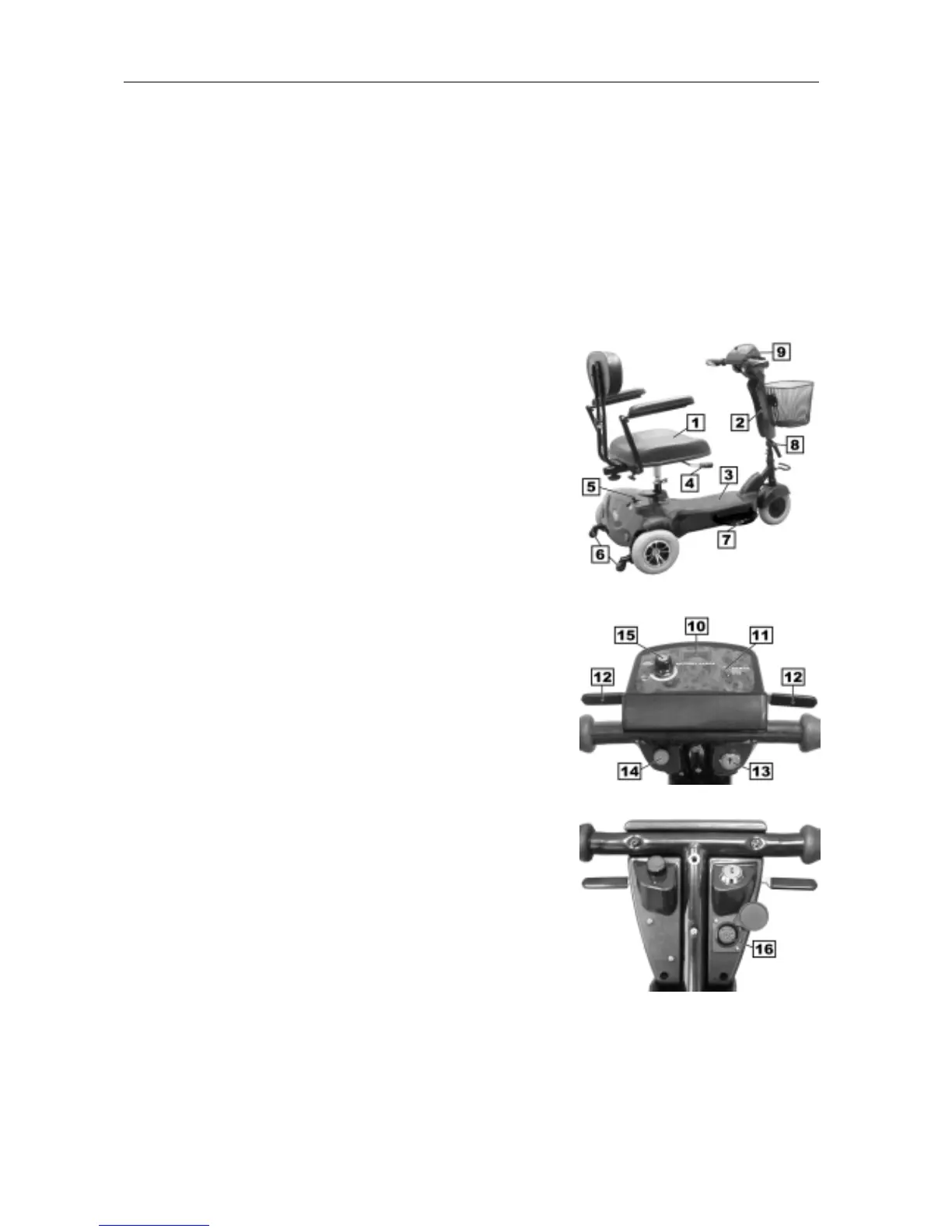

The following illustrations show the general arrangement of the Electra Scooter's subassemblies,
components and control elements.
1. Seat element with armrest and backrest
2. Steering column
3. Chassis with panelling
4. Lever for turning and removing seat
5. Disengaging lever for drive unit
6. Antitipper
7. Footplates
8. Disengager for steering column adjustment
9. Operating unit
"Electra Scooter" standard
configuration
Rear wheel drive with standard seat
10. Battery charge display
11. Power pilot light (status display)
12. Drive lever
13. Keyswitch
14. Horn button
15. Speed controller
16. Charging socket
