Service Manual Invacare
®
Electra
As at: 15.04.02 Page 21

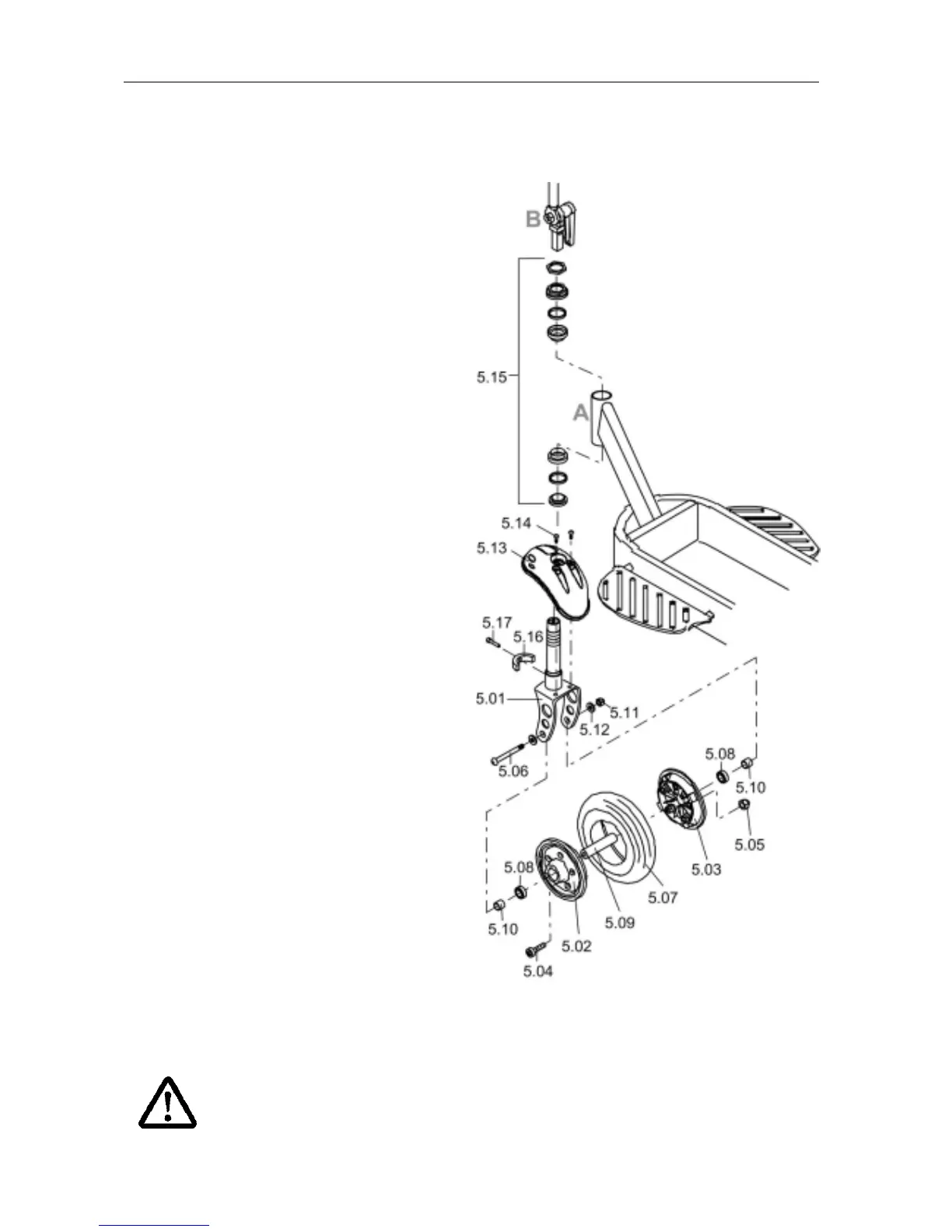

9.5 Steering fork / front wheel
9.5.1 Components:
Item Qty. Description
5.01
5.02
5.03
5.04
5.05
5.06
5.07
5.08
5.09
5.10
5.11
5.12
5.13
5.14
5.15
5.16
5.17
1
1
1
4
4
1
1
2
1
2
1
1
1
2
1
1
1
Front wheel fork
Wheel rim 200 X 50 5H, black
Wheel rim 200 X 50 6H, black
Bolt, M6 X 30
Nut M6 self-locking
Axle, M8 X 82
Tyre 200 X 50, puncture-proof
Bearings 608 ZZ
Spacer bush, 11 X 42 X 1,2
Spacer bush 11 X 3,1 X 1,2
Nut M8, self-locking
Washer, M8
Front wheel cover
Bolt, M6 X 10
Bearing set, 8-pc. for front wheel
fork
Stopper for steering stop
Pin, M6 X 25
9.5.2 Components involved:
A Chassis (chapter: 9.4 page: 20)
B Steering column (chapter: 9.2 page: 17)
9.5.3 Preparation for reassembly
• Raise the Scooter and place on a suitable support (such as wooden block).
The steering wheel must not be subjected to load.
CAUTION: Danger of crushing!
Secure the raised Scooter against slipping and rolling away.
