Invacare
®
Electra Service Manual
Page 18 As at:15.04.02

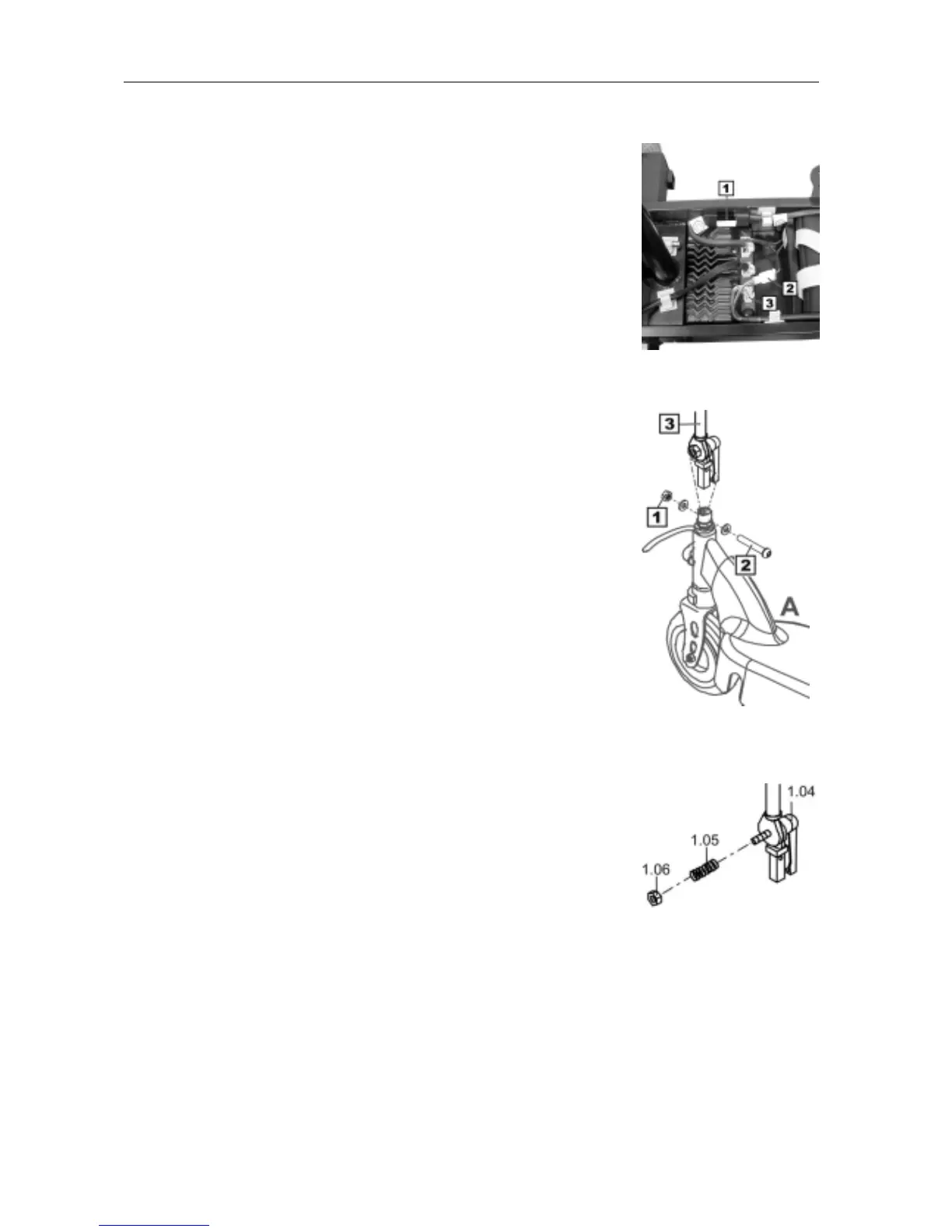

9.2.3 Reassembly information for "removing steering column"
• Remove seat unit (see chapter9.1.5).
• Carefully pull the chassis panelling upwards off the Velcro connectors.
• Interrupt power supply. Battery cable (1).
• Disconnect the power supply connecting plug at the operating unit (2) and
the connecting plug at the controller (3).
Connecting plugs
• Loosen self-locking nut (1; size 13 mm).
• Remove connecting bolts (2; Allen key size 4 mm).
• Pull the steering column (3) out of the steering head.
Steering column joint
9.2.4 Reassembly information for "replacing joint"
• Turn the self-locking nut (1.06; size 13 mm) just far enough so that it locks
off flush with the clamping lever bolt (1.04).
Screwing down the
steering column joint
