SECTION 7—COMPRESSOR
Part No 1148070 41 Perfecto
2
™

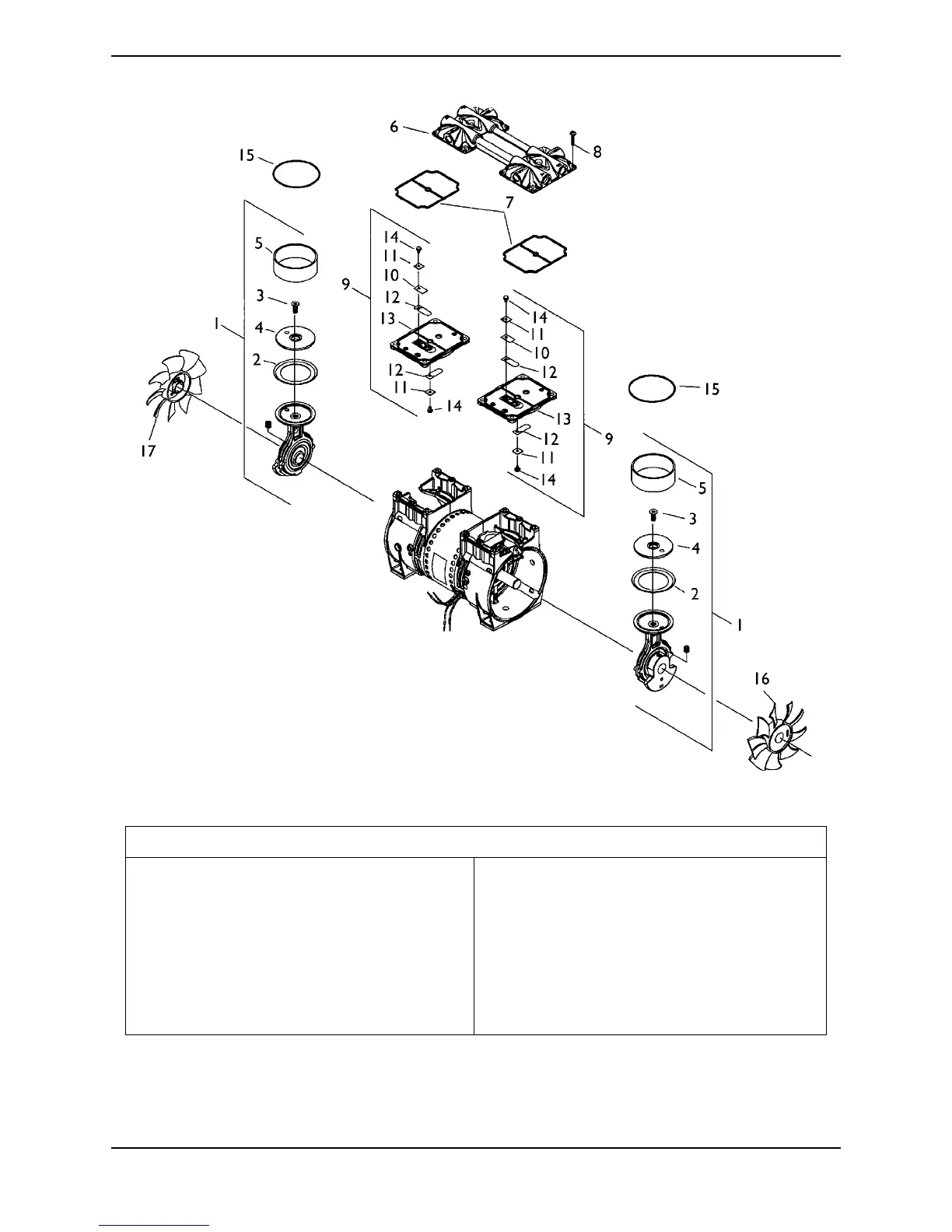

FIGURE 7.7 Compressor Exploded View
COMPRESSOR PARTS LEGEND
1. Connecting Rod, Eccentric & Bearing Assembly
2. Piston Cup
3. Screw - Piston Cup Retainer
4. Piston Cup Retainer
5. Cylinder Sleeve
6 Head
7. O-Ring - Head Gasket
8. Screw - Head
9. Valve Plate Assembly
10. Valve Restraint
11. Valve Keeper Strip
12. Valve Flapper - Intake & Exhaust
13. Valve Plate
14. Screw - Valve Flapper
15. O-Ring Valve Plate
16. Fan - Gray
17. Fan - Black
