SECTION 20—4-WAY VALVE/MANIFOLD ASSEMBLY
Perfecto
2
™
70 Part No 1148070

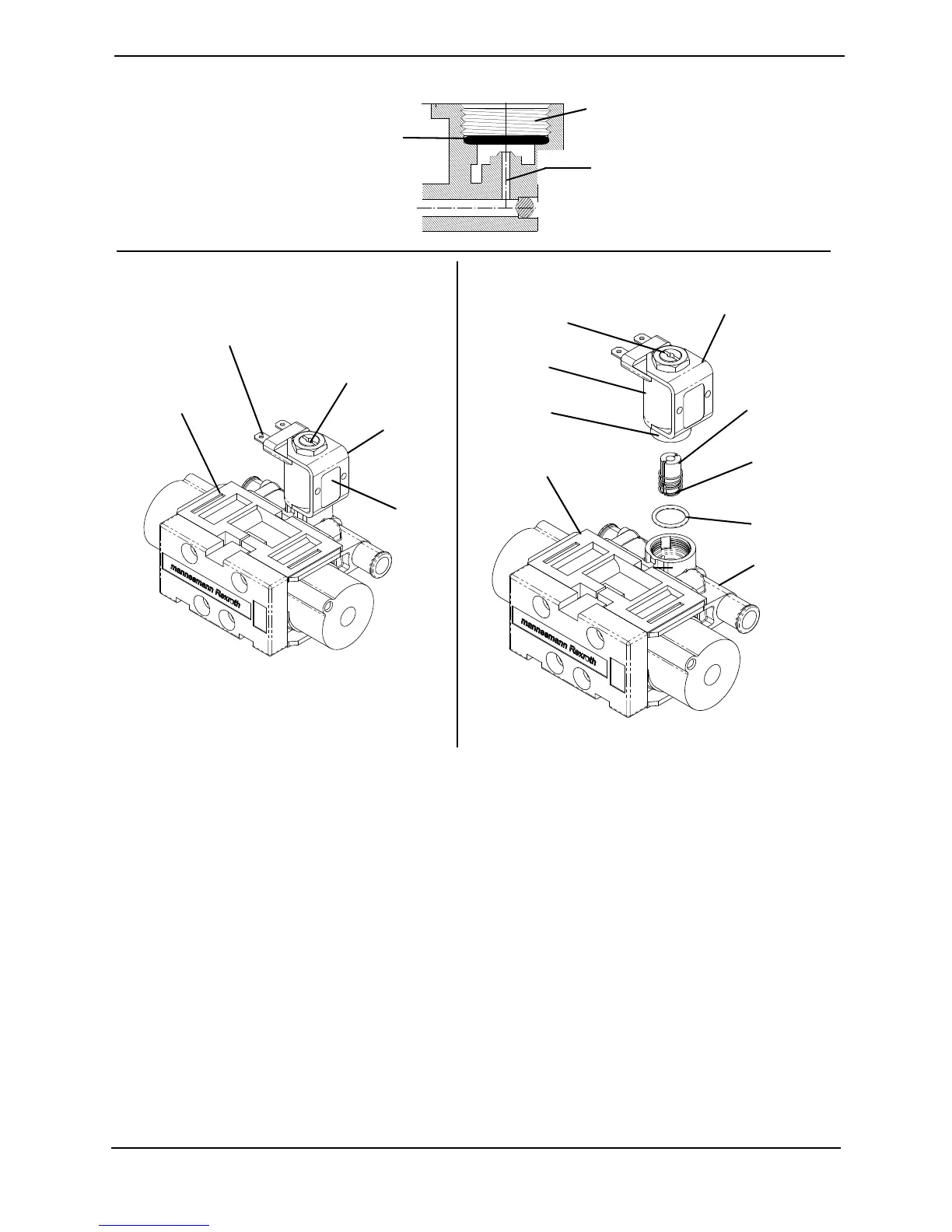

FIGURE 20.2 Replacing Pilot Valve Poppets and O-Rings
Spade Connectors attach here
(Leave Wire Connectors Intact)
Pilot Valve Stem
Yoke
New
Label
Locknut
Coil
Pilot Valve
Stem
Valve
Manifold
Tapered
End
O-Ring
Slotted
Poppet
NOTE:DONOTdisassemble.
Air Flow Passage
Manifold
Opening
O-Ring
DETAIL “A”
Valve
Assembled View
Exploded View
